2823357 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

14P,2MM,SHRD HDR,DRRT,2.8,0.38AU

Part	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Material Flammability Rating	Insulation Material	Current Rating (Amps)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Voltage Rating	Number of Rows	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Color	Connector Type	Fastening Type	Shrouding	Contact Type	Number of Positions

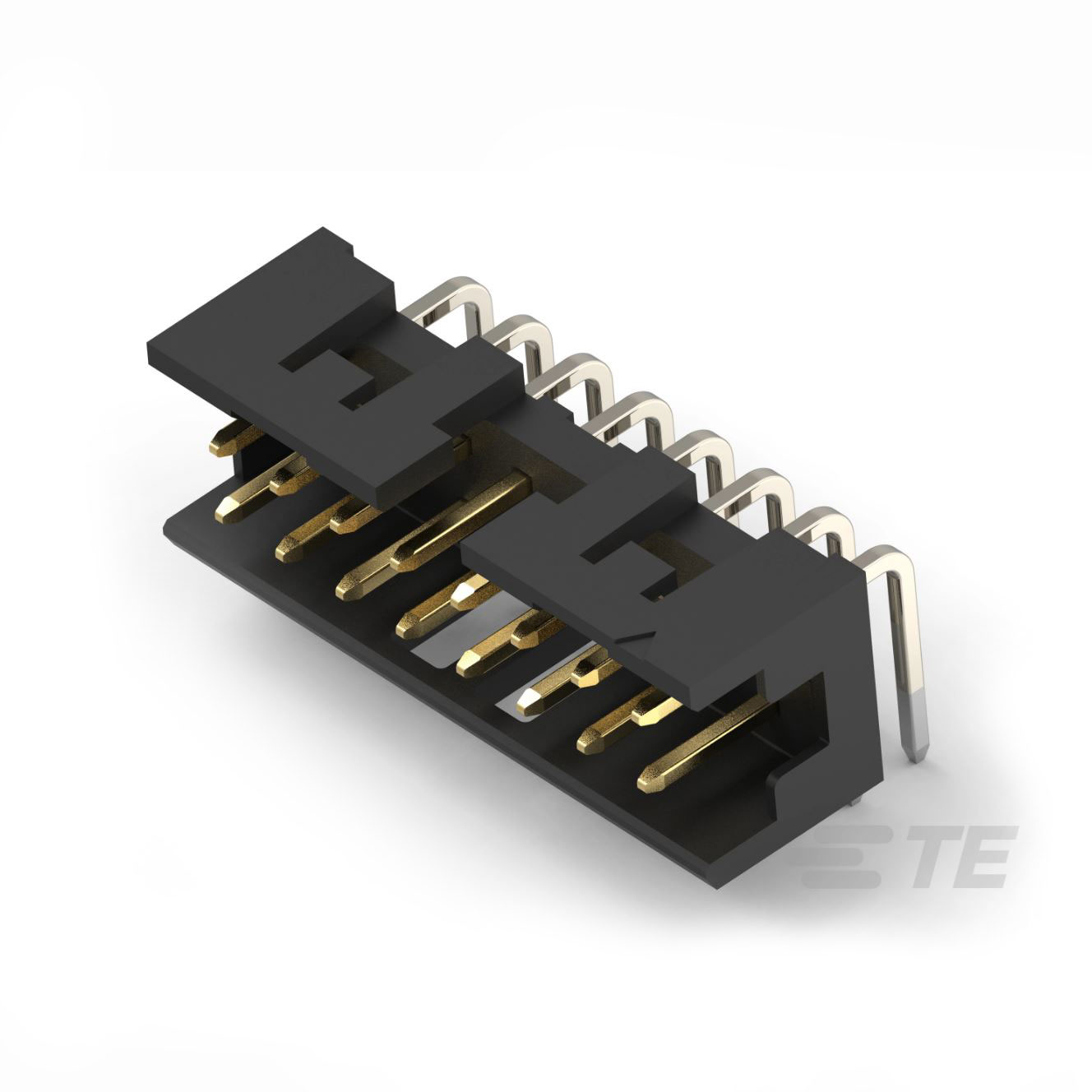

TE Connectivity Raychem Cable Protection 1-2823357-4	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám	14	UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin

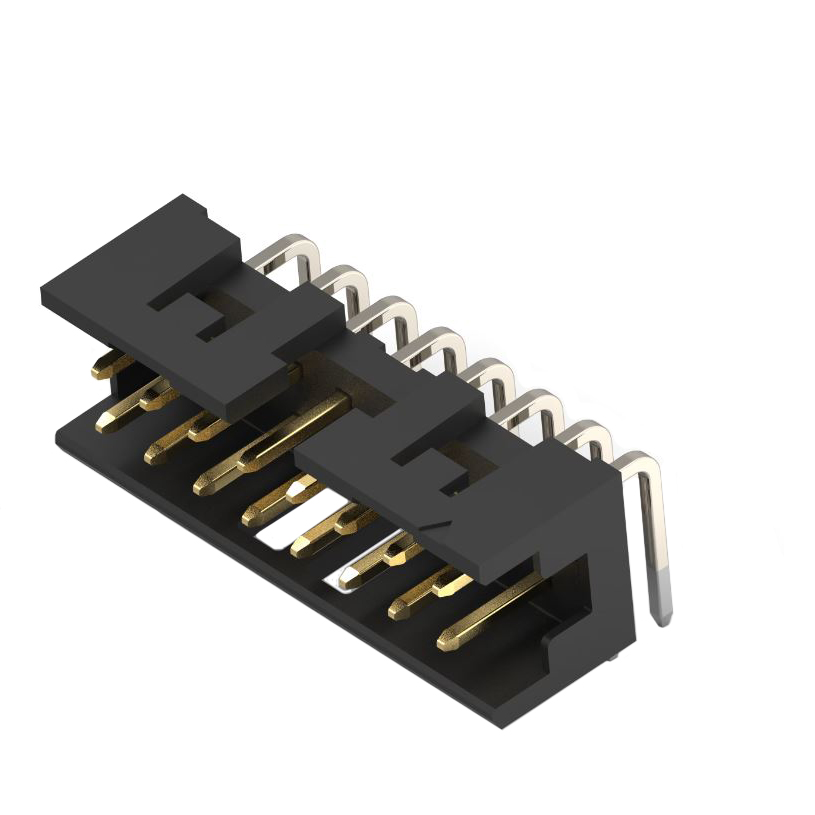

TE Connectivity Raychem Cable Protection 2-2823357-0	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám	20	UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin

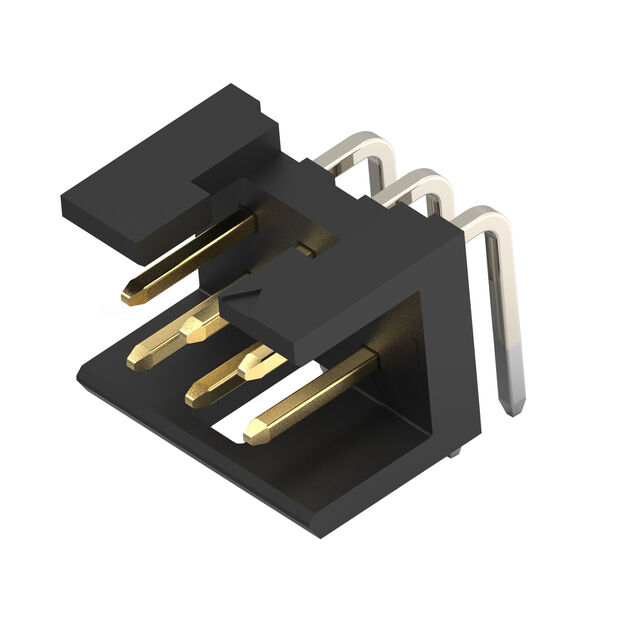

TE Connectivity Raychem Cable Protection 2823357-6	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám	6	UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin

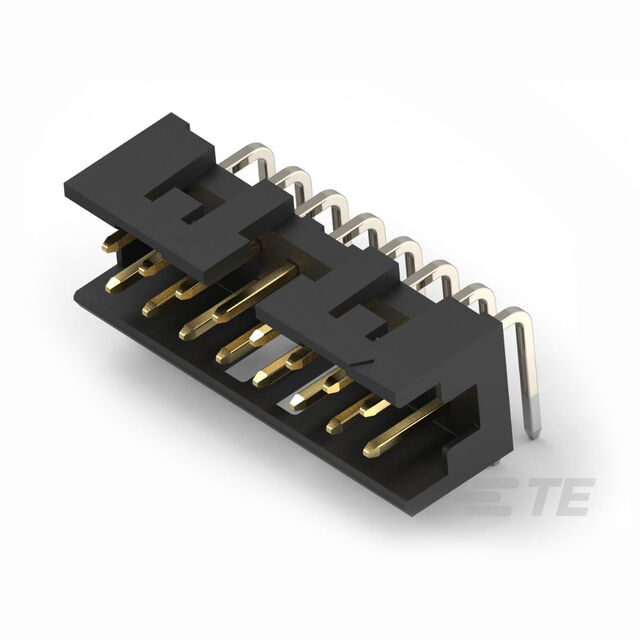

TE Connectivity Raychem Cable Protection 1-2823357-6	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám		UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin	16
TE Connectivity Raychem Cable Protection 2823357-4	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám	4	UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin
TE Connectivity Raychem Cable Protection 1-2823357-8	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám	18	UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin
TE Connectivity Raychem Cable Protection 4-2823357-0	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám	40	UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin
TE Connectivity Raychem Cable Protection 1-2823357-0	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám	10	UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin
TE Connectivity Raychem Cable Protection 3-2823357-0	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám	30	UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin

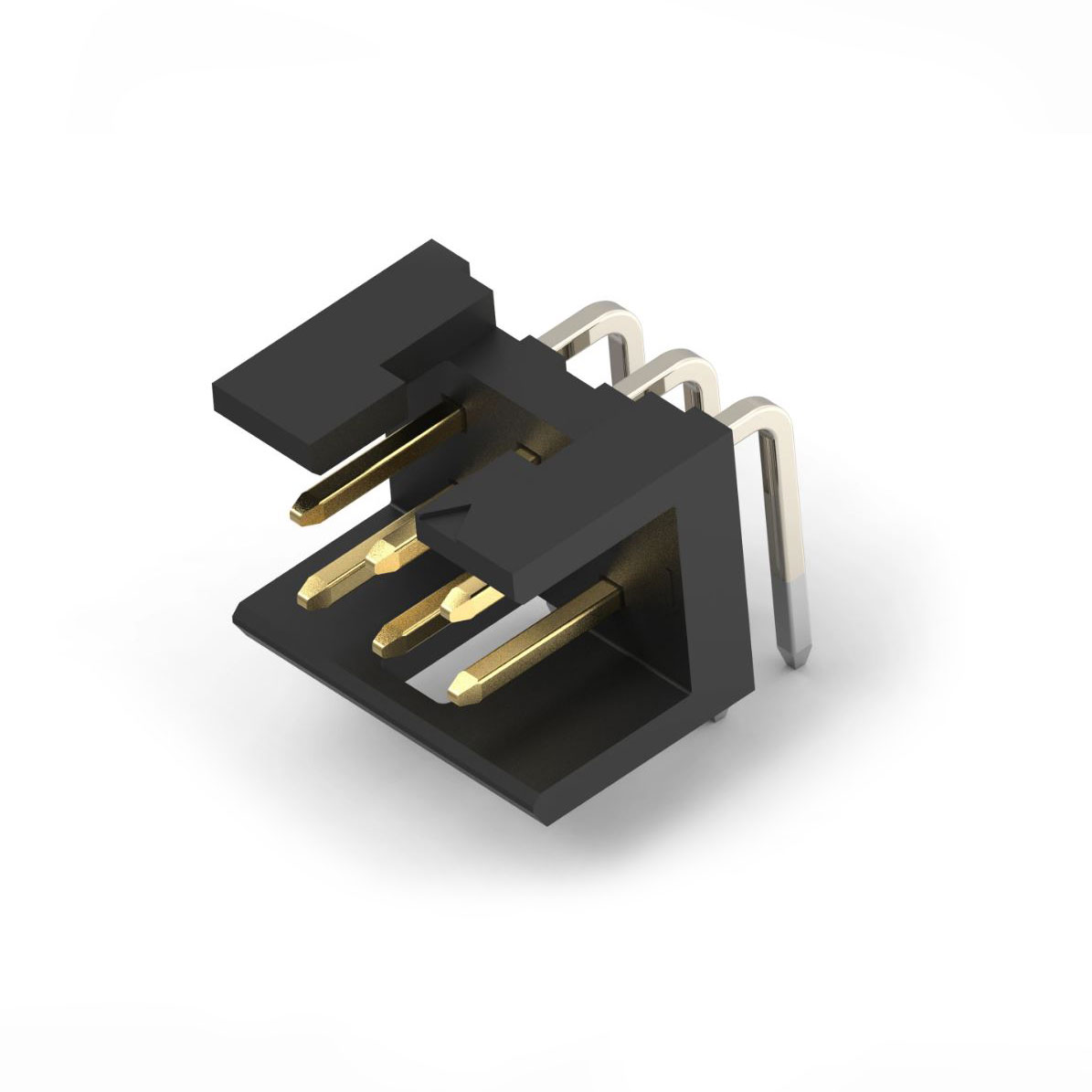

TE Connectivity Raychem Cable Protection 2823357-8	All	0.11 in	2.8 mm	15 µin	0.38 µm	Phosphor Bronze	0.079 in	2 mm	157.5 Áin	4 Ám	8	UL94 V-0	Thermoplastic	2 A	Solder	125 °C	-40 °C	0.079 in	2 mm	Square	Through Hole Right Angle	4 mm	0.157 in	Gold	125 VAC	2	Tin	0.244 in	6.2 mm	Black	Header	Detent Lock	Shrouded - 2 Wall	Male Pin
