58910 Series

Catalog

CP14-127-045-L2-W4.5

Part	Current - Max [Max]	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Voltage - Max [Max]	Height [z]	Operating Temperature	Resistance	Qmax @ Th	Number of Stages	Features

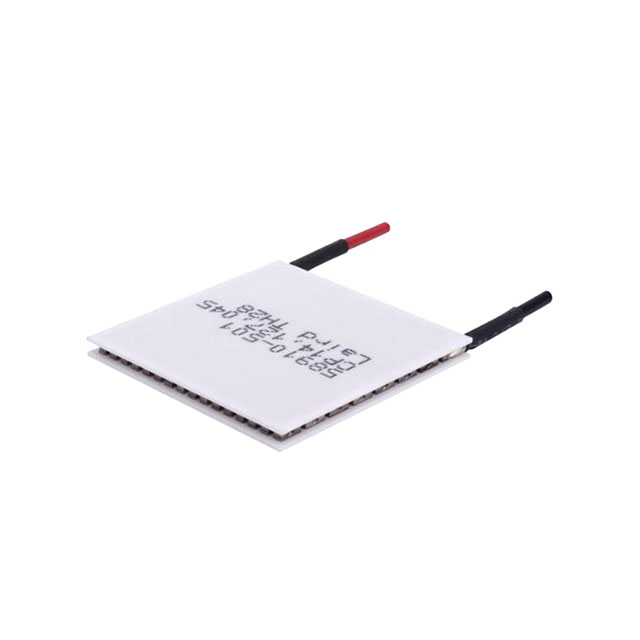

Laird Thermal Systems, Inc. 58910-501	8.5 A	67 °C	39.9 mm	39.9 mm	Square	14.5 V	3.33 mm	80 °C	1.55 Ohms	72 W	1	Lapped Lead Wires
Laird Thermal Systems, Inc. 58910-510	8.5 A	67 °C	39.9 mm	39.9 mm	Square	14.5 V	3.33 mm	80 °C	1.55 Ohms	72 W	1	Lead Wires Sealed - Silicone RTV
