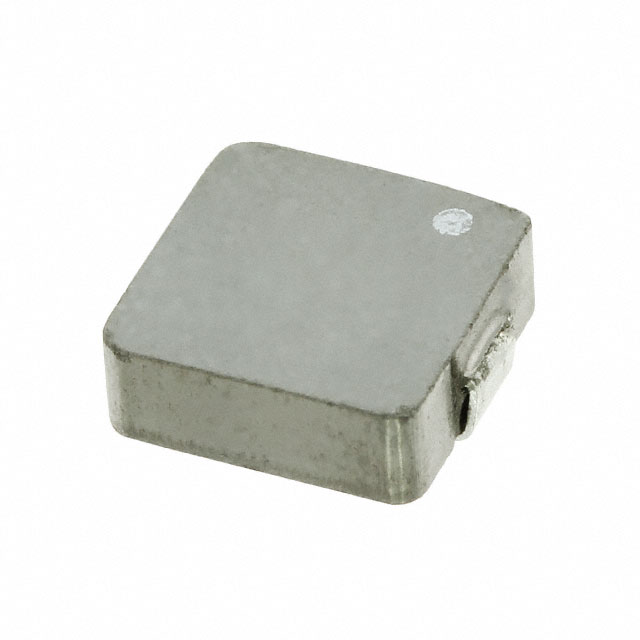

MPCH1040 Series
Manufacturer: KEMET
Beta
⌘K
INDUCTOR POWER WIREWOUND 1UH 20% 100KHZ METAL 17A 0.0023OHM DCR 4040 T/R
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Inductance | Package / Case | Mounting Type | Inductance Frequency - Test | Operating Temperature [Max] | Operating Temperature [Min] | DC Resistance (DCR) | Tolerance | Material - Core | Current - Saturation (Isat) | Shielding | Current Rating (Amps) | Height - Seated (Max) | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 10 mm | 11.5 mm | 0.453 " | 0.394 in | 1 µH | Nonstandard | Surface Mount | 100 kHz | 125 °C | -40 C | 2.3 mOhm | 20 % | Metal Composite | 17 A | Shielded | 17 A | 4 mm | 0.157 in |
