BAS16 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

DIODE GEN PURP 75V 250MA SOD123

Part	Voltage - Forward (Vf) (Max) @ If [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Qualification	Mounting Type	Grade	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Current - Reverse Leakage @ Vr	Technology	Package / Case	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Supplier Device Package	Capacitance @ Vr, F	Operating Temperature - Junction	Speed
Vishay General Semiconductor - Diodes Division BAS16D-HE3-08	1.25 V	75 V	AEC-Q101	Surface Mount	Automotive	150 °C	-55 °C	200 mA 500 ns	1 µA	Standard	SOD-123	250 mA	6 ns	SOD-123	2 pF
Vishay General Semiconductor - Diodes Division BAS16WS-G3-08	1.25 V	75 V		Surface Mount		150 °C	-55 °C	200 mA 500 ns	1 µA	Standard	SC-76 SOD-323	250 mA	6 ns	SOD-323	2 pF
Vishay General Semiconductor - Diodes Division BAS16WS-E3-08	1.25 V	75 V		Surface Mount				200 mA 500 ns	1 µA	Standard	SC-76 SOD-323	250 mA	6 ns	SOD-323	2 pF	150 °C

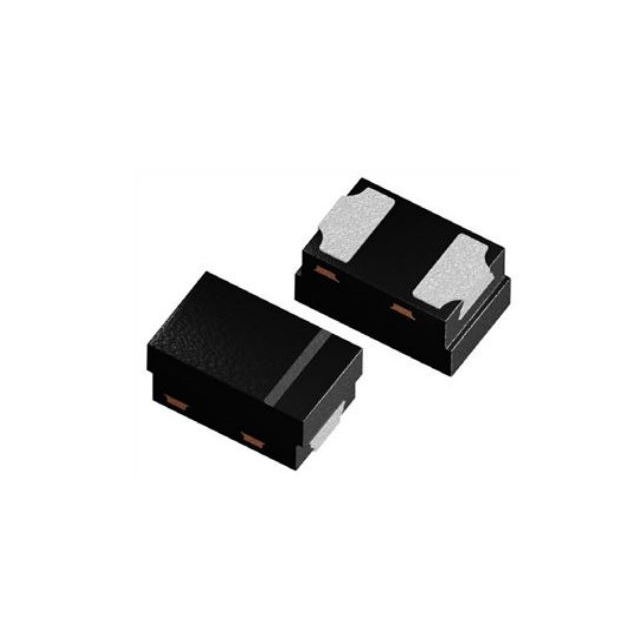

Vishay General Semiconductor - Diodes Division BAS16L-G3-08	1.25 V	100 V		Surface Mount		150 °C	-55 °C	200 mA 500 ns	1 µA	Standard	0402 (1006 Metric)	250 mA	4 ns	DFN1006-2A	0.36 pF
Vishay General Semiconductor - Diodes Division BAS16-HE3-08	1.25 V	75 V	AEC-Q101	Surface Mount	Automotive	150 °C	-55 °C	200 mA	1 µA	Standard	SC-59 SOT-23-3 TO-236-3	150 mA	6 ns	SOT-23-3	4 pF		Any Speed
Vishay General Semiconductor - Diodes Division BAS16LTH-G3-08	1.25 V	100 V	AEC-Q101	Surface Mount	Automotive	175 ░C	-55 C	200 mA 500 ns	1 µA	Standard	0402 (1006 Metric)	250 mA	4 ns	DFN1006-2A	0.36 pF
Vishay General Semiconductor - Diodes Division BAS16D-E3-18	1.25 V	75 V		Surface Mount		150 °C	-55 °C	200 mA 500 ns	1 µA	Standard	SOD-123	250 mA	6 ns	SOD-123	2 pF
Vishay General Semiconductor - Diodes Division BAS16LTH-HG3-08	1.25 V	100 V	AEC-Q101	Surface Mount	Automotive	175 ░C	-55 C	200 mA 500 ns	1 µA	Standard	0402 (1006 Metric)	250 mA	4 ns	DFN1006-2A	0.36 pF
Vishay General Semiconductor - Diodes Division BAS16-G3-18	1.25 V	75 V		Surface Mount		150 °C	-55 °C	200 mA	1 µA	Standard	SC-59 SOT-23-3 TO-236-3	150 mA	6 ns	SOT-23-3	4 pF		Any Speed
Vishay General Semiconductor - Diodes Division BAS16L-HG3-08	1.25 V	100 V	AEC-Q101	Surface Mount	Automotive	150 °C	-55 °C	200 mA 500 ns	1 µA	Standard	0402 (1006 Metric)	250 mA	4 ns	DFN1006-2A	0.36 pF
