3601-3 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

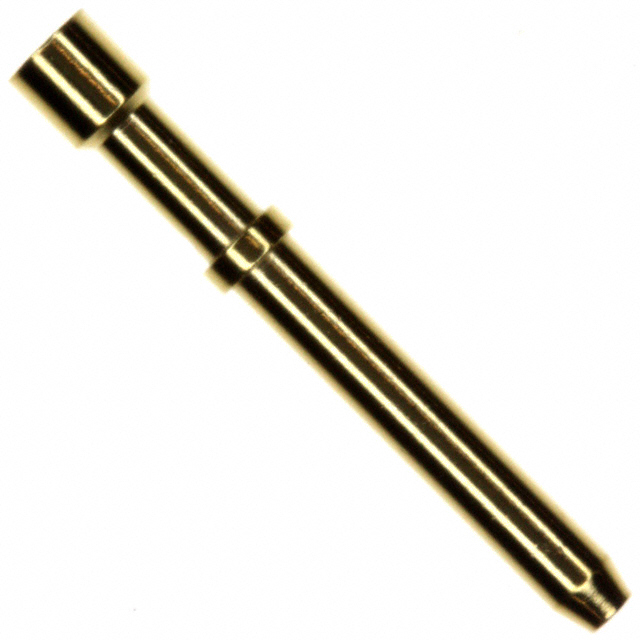

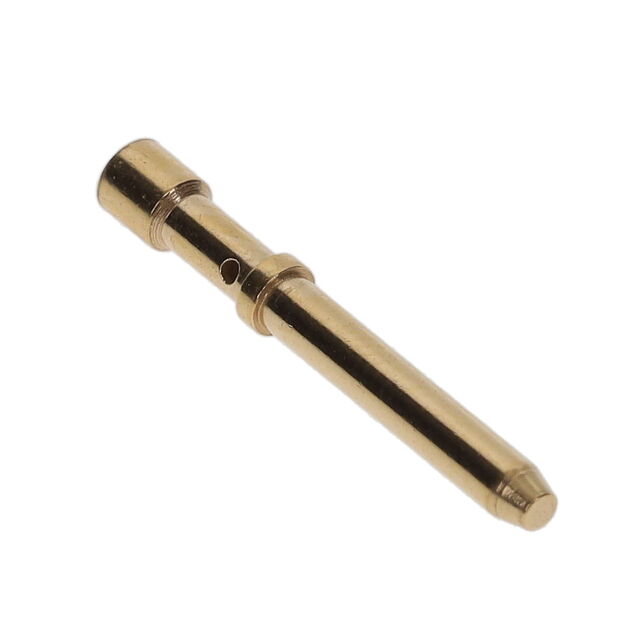

CONN PC PIN CIRC .080DIA GOLD
| Part | Insulation | Contact Material | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Mounting Type | Length - Below Flange [x] | Length - Below Flange [x] | Length - Overall | Length - Overall | Length - Above Flange [x] | Length - Above Flange | Terminal Style | Terminal Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | Brass Alloy | 2.03 mm | 0.08 in | Free Hanging (In-Line) | 6.99 mm | 0.275 " | 0.806 in | 20.47 mm | 0.5 in | 12.7 mm | Wire | PC Pin | Gold | 50 µin | 1.27 µm | Crimp |
 Mill-Max Manufacturing Corp. | Non-Insulated | Brass Alloy | 2.03 mm | 0.08 in | Free Hanging (In-Line) | 6.99 mm | 0.275 " | 0.806 in | 20.47 mm | 0.5 in | 12.7 mm | Wire | PC Pin | Gold | 10 Áin | 0.25 Ám | Crimp |
 Mill-Max Manufacturing Corp. | Non-Insulated | Brass Alloy | 2.03 mm | 0.08 in | Free Hanging (In-Line) | 6.99 mm | 0.275 " | 0.806 in | 20.47 mm | 0.5 in | 12.7 mm | Wire | PC Pin | Gold | 20 µin | 0.51 µm | Crimp |
