TPS65165 Series
Manufacturer: Texas Instruments
Beta
⌘K

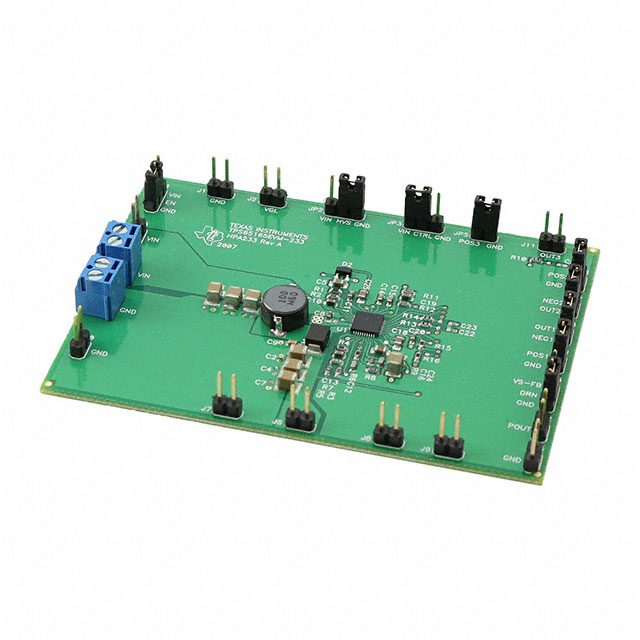

TPS65165EVM-233
| Part | Power - Output | Supplied Contents | Board Type | Outputs and Type | Outputs and Type | Utilized IC / Part | Main Purpose | Current - Output | Voltage - Input [Min] | Voltage - Input [Max] | Regulator Topology | Contents | Voltage - Output | Frequency - Switching | Outputs and Type [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] | Supplier Device Package | Applications | Mounting Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 16.4 W | Board(s) | Fully Populated | Non-Isolated Non-Isolated Outputs | 3 | TPS65165 | Special Purpose DC/DC LCD Supply | 1 A 50 mA | 4.5 V | 5.5 V | Boost | Board(s) | -5 V 15 V 23.8 V | 600 kHz | 3 | ||||||||
 Texas Instruments | 85 °C | -40 C | 2.5 V | 6 V | 40-WQFN (5x5) | LCD TV/Monitor | Surface Mount | 40-WFQFN Exposed Pad |
