TPS565208 Series
Manufacturer: Texas Instruments
Beta
⌘K

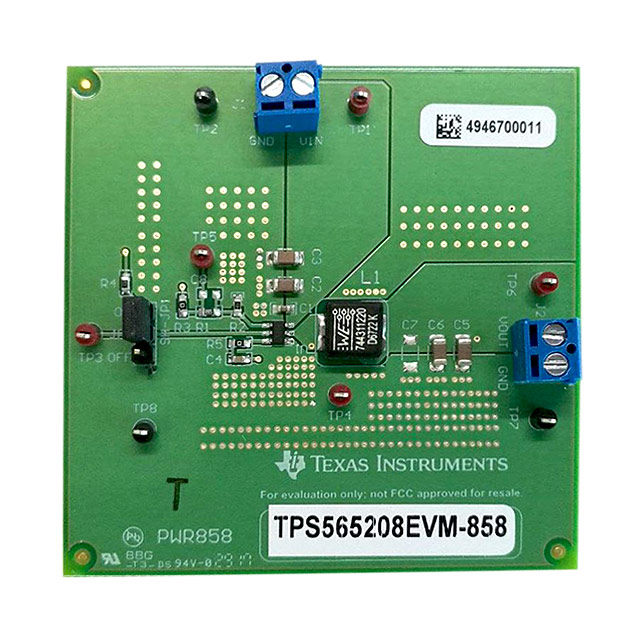

EVAL BOARD FOR TPS565208
| Part | Board Type | Outputs and Type | Outputs and Type | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output | Supplied Contents | Utilized IC / Part | Main Purpose | Frequency - Switching | Regulator Topology | Voltage - Output | Supplier Device Package | Topology | Package / Case | Number of Outputs | Voltage - Output (Max) [Max] | Output Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output (Min/Fixed) | Output Configuration | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Function | Synchronous Rectifier |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Fully Populated | Non-Isolated | 1 | 17 V | 4.5 V | 5 A | Board(s) | TPS565208 | DC/DC Step Down | 550 kHz | Buck | 1.05 V | |||||||||||||||
Texas Instruments | 5 A | 500 kHz | SOT-23-THIN | Buck | SOT-23-6 Thin TSOT-23-6 | 1 | 7 V | Adjustable | Surface Mount | -40 °C | 125 ¯C | 0.76 V | Positive | 4.5 V | 17 V | Step-Down |
