H3163 Series
Manufacturer: Harwin Inc.
Beta
⌘K
PCB SOCKET
| Part | Insertion Force [Max] | Insertion Force [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Termination | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Material | Socket Depth [custom] | Socket Depth [custom] | Length - Overall [x] | Length - Overall [x] | Tail Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

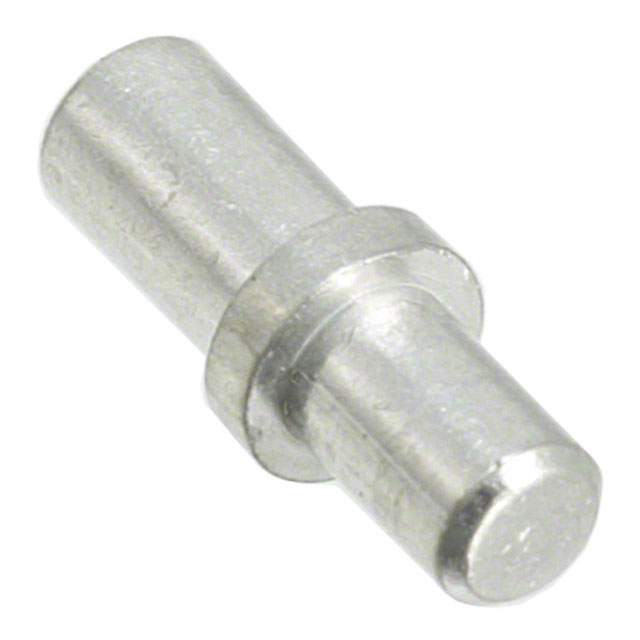

 Harwin Inc. | 9 N | 3 N | -55 C | 125 °C | Tin | 1.05 mm | 0.89 mm | 0.041 " | 0.035 " | Press-Fit | 0.125 in | 3.18 mm | Beryllium Copper | 4.88 mm | 0.192 in | 7.92 mm | 0.312 " | No Tail | 4 µm | 157.5 µin | 0.09 " 2.29 mm | 0.086 " 2.18 mm |

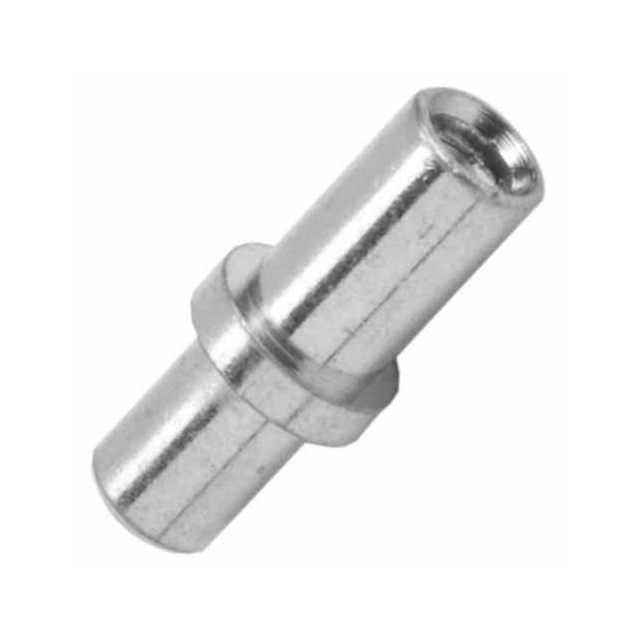

 Harwin Inc. | 9 N | 3 N | -55 C | 125 °C | Gold | 1.05 mm | 0.89 mm | 0.041 " | 0.035 " | Press-Fit | 0.125 in | 3.18 mm | Beryllium Copper | 4.88 mm | 0.192 in | 7.92 mm | 0.312 " | No Tail | 0.15 µm | 5.9 µin | 0.09 " 2.29 mm | 0.086 " 2.18 mm |
