MDM-9 Series

Catalog

CONN MICRO-D PLUG 9POS R/A SLDR

...

Part	Dielectric Material	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shell Material, Finish	Number of Positions	Connector Style	Mounting Type	Contact Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Flange Feature	Termination	Connector Type	Current Rating (Amps)	Number of Rows [custom]	Contact Type	Type	Shielding	Length	Length	1st Connector	Color	2nd Connector	Length [x]	Length [x]	Length	Shell Size, Connector Layout [y]	Shell Size, Connector Layout [x]
ITT Cannon, LLC MDM-9PCBRM7-F222	Liquid Crystal Polymer (LCP)	Copper Alloy	200 °C	-55 C	Aluminum Yellow Chromate Plated Cadmium	9	D-Type Micro-D	Panel Mount Right Angle Through Hole	Gold	0.1	0.05	Shielded	Mating Side Female Screwlock (2-56)	Solder	Plug Male Pins	3 A	2	Signal

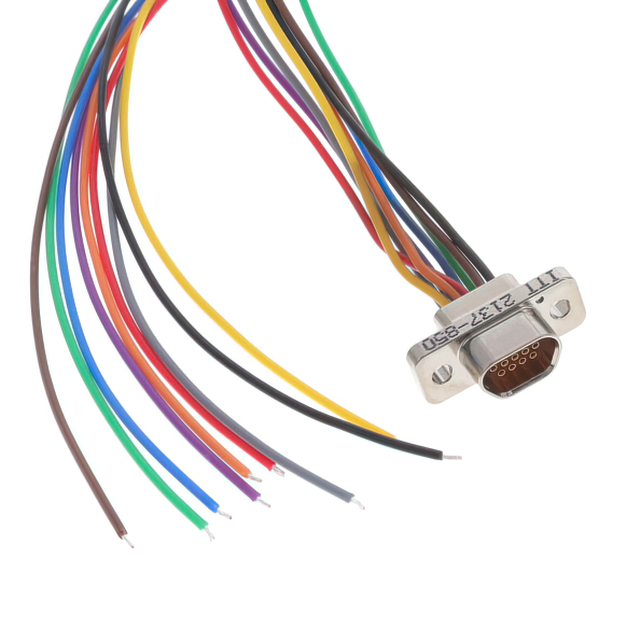

ITT Cannon, LLC MDM-9PH006P-A174						9			Gold										D-Type Micro-D	Unshielded	91.44 cm	3 ft	Male Pins Plug	Individual Multiple	Individual Wire Leads
ITT Cannon, LLC MDM-9PH001L-A174						9			Gold										D-Type Micro-D				Male Pins Plug	Individual Multiple	Individual Wire Leads	457.2 mm	1.5 ft
ITT Cannon, LLC MDM-9PH016M5-A30						9			Gold										D-Type Micro-D	Unshielded	152.4 mm	0.5 '	Male Pins Plug	Individual Multiple	Individual Wire Leads			6 "

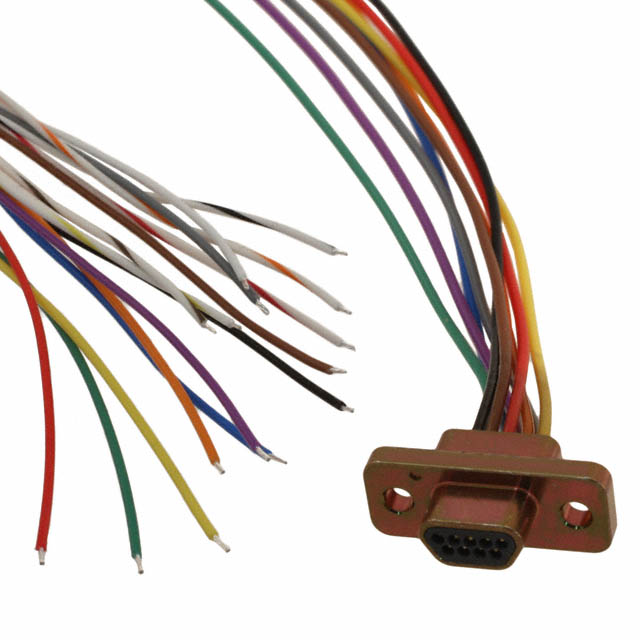

ITT Cannon, LLC MDM-9SH267L-A172						9			Gold										D-Type Micro-D	Unshielded			Receptacle Female Sockets		Individual Wire Leads
ITT Cannon, LLC MDM-9PH046P						9			Gold										D-Type Micro-D		1.83 m	6 ft	Male Pins Plug	Individual Multiple	Individual Wire Leads
ITT Cannon, LLC MDM-9SL2K	Liquid Crystal Polymer (LCP)	Copper Alloy	125 °C	-55 C	Aluminum Yellow Chromate Plated Cadmium	9	D-Type Micro-D	Panel Mount	Gold			Shielded	2-56 Cable Side Male Jackscrew	Wire Leads	Receptacle Female Sockets	3 A	2	Signal											0.043 in	0.05 in
ITT Cannon, LLC MDM-9PH001A						9			Gold										D-Type Micro-D	Unshielded			Male Pins Plug	Individual Yellow	Individual Wire Leads	457.2 mm	1.5 ft
ITT Cannon, LLC MDM-9SH001L-A174						9			Gold										D-Type Micro-D	Unshielded			Receptacle Female Sockets	Individual Yellow	Individual Wire Leads	457.2 mm	1.5 ft
ITT Cannon, LLC MDM-9SH006F-A174-F222						9			Gold										D-Type Micro-D	Unshielded	91.44 cm	3 ft	Receptacle Female Sockets	Individual Multiple	Individual Wire Leads
