10090098 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

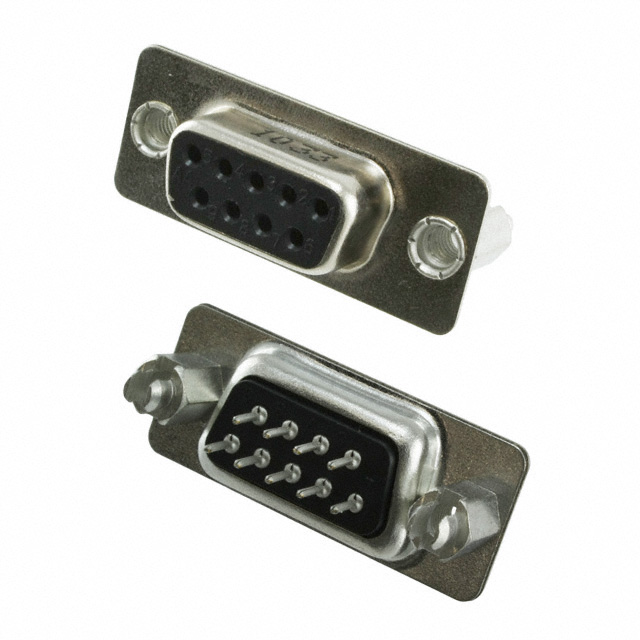

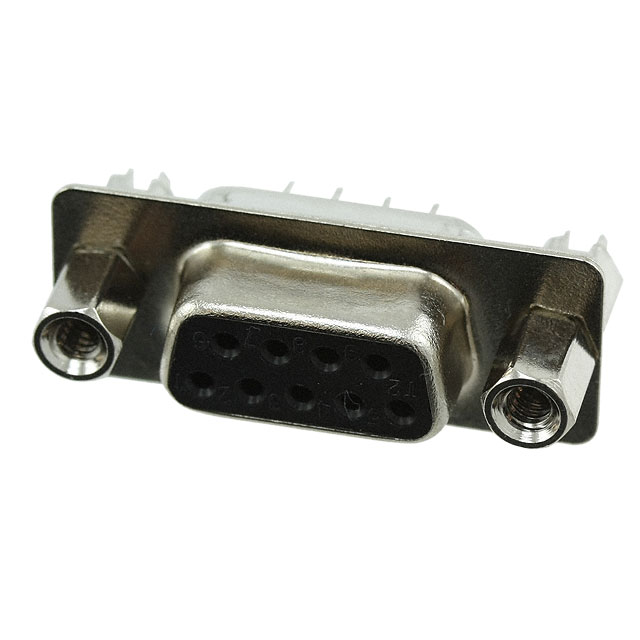

CONN D-SUB RCPT 9POS VERT SLDR
| Part | Contact Material | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Rows [custom] | Connector Type | Current Rating (Amps) | Shell Material, Finish | Contact Type | Contact Finish | Number of Positions | Mounting Type | Features | Connector Style | Flange Feature | Termination | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Copper Alloy | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Black | 2 | Receptacle Female Sockets | 5 A | Steel Tin-Nickel Plated | Signal | Gold | 9 | Through Hole | Board Lock | D-Sub | Board Side (4-40) Mating Side Female Screwlock (4-40) | Solder | UL94 V-0 | 1 | DE E | Flash | |||
 Amphenol ICC (FCI) | Copper Alloy | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Black | 2 | Receptacle Female Sockets | 5 A | Steel Tin-Nickel Plated | Signal | Gold | 25 | Through Hole | Board Lock | D-Sub | Board Side (4-40) Mating Side Female Screwlock (4-40) | Solder | UL94 V-0 | Flash | B DB | 3 | |||
 Amphenol ICC (FCI) | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Black | 2 | Receptacle Female Sockets | 5 A | Steel Tin-Nickel Plated | Signal | Gold | 9 | Through Hole | Board Lock | D-Sub | Board Side (M3) | Solder | 1 | DE E | Flash | |||||

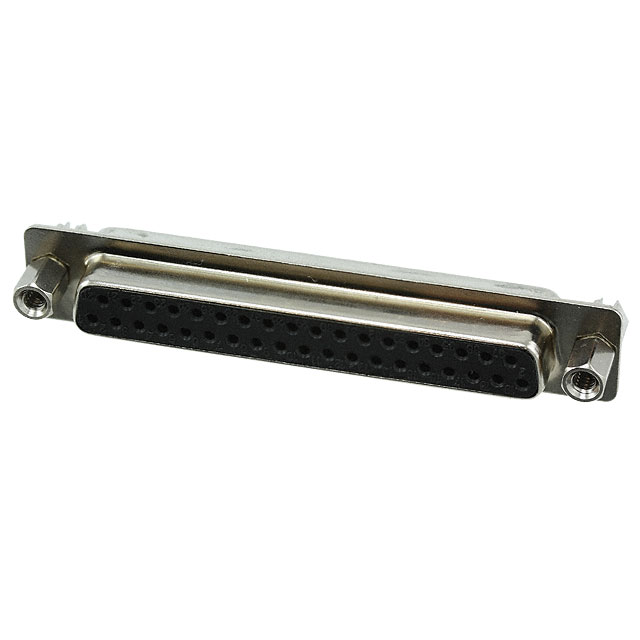

 Amphenol ICC (FCI) | Copper Alloy | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Black | 2 | Receptacle Female Sockets | 5 A | Nickel Plated Steel | Signal | Gold | 37 | Through Hole | Board Lock | D-Sub | Board Side (4-40) | Solder | UL94 V-0 | Flash | DC C | 4 | |||
 Amphenol ICC (FCI) | Copper Alloy | 250 V | Thermoplastic Glass Filled | -55 C | 105 ░C | Black | 2 | Receptacle Female Sockets | 5 A | Steel Tin-Nickel Plated | Signal | Gold | 37 | Through Hole | Board Lock | D-Sub | Board Side (4-40) Mating Side Female Screwlock (4-40) | Solder | UL94 V-0 | Flash | DC C | 4 |
