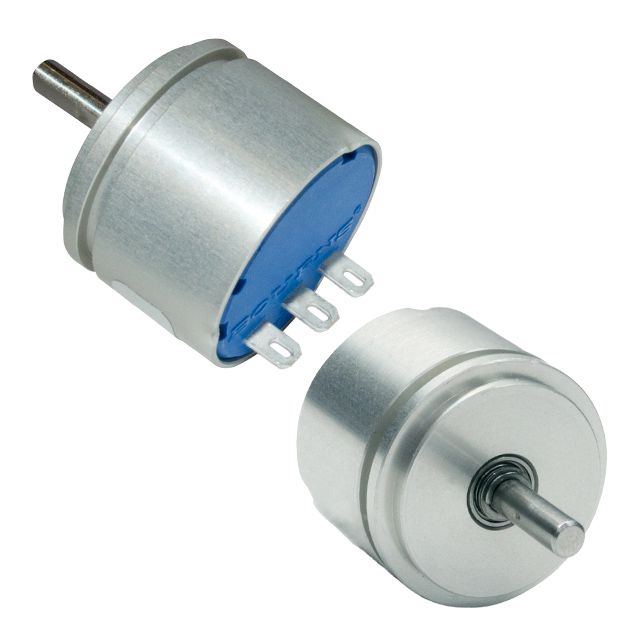

AMS22U Series

Catalog

SENSOR ROTARY 60DEG SOLDER LUG

Part	For Measuring	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]	Output	Technology	Package / Case	Linearity	Termination Style	Output Signal	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type
Bourns Inc. AMS22U5A1BHARL306	Rotary Position	10 °	60 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug	Clockwise Increase	Panel Mount	125 °C	-40 C	Round Shaft
Bourns Inc. AMS22U5A1BLARL331	Rotary Position	10 °	310 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug	Clockwise Increase	Panel Mount	125 °C	-40 C	Round Shaft
Bourns Inc. AMS22U5A1BHARL307	Rotary Position	10 °	70 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug	Clockwise Increase	Panel Mount	125 °C	-40 C	Round Shaft
Bourns Inc. AMS22U5A1BHARL310	Rotary Position	10 °	100 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug	Clockwise Increase	Panel Mount	125 °C	-40 C	Round Shaft
Bourns Inc. AMS22U5A1BLARL108	Rotary Position	10 °	80 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug		Panel Mount	125 °C	-40 C	Round Shaft
Bourns Inc. AMS22U5A1BLARL111	Rotary Position	10 °	110 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug		Panel Mount	125 °C	-40 C	Round Shaft
Bourns Inc. AMS22U5A1BLARL135	Rotary Position	10 °	350 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug		Panel Mount	125 °C	-40 C	Round Shaft
Bourns Inc. AMS22U5A1BLARL317	Rotary Position	10 °	170 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug	Clockwise Increase	Panel Mount	125 °C	-40 C	Round Shaft
Bourns Inc. AMS22U5A1BLARL112	Rotary Position	10 °	120 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug		Panel Mount	125 °C	-40 C	Round Shaft
Bourns Inc. AMS22U5A1BHARL112	Rotary Position	10 °	120 °	Analog Voltage	Hall Effect	Module Round Shaft	0.5 %	Solder Lug		Panel Mount	125 °C	-40 C	Round Shaft
