745131 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

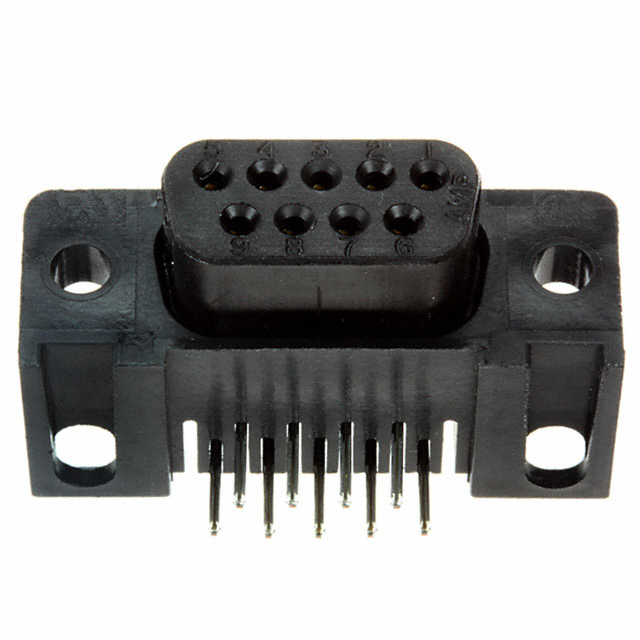

D SUB CONNECTOR, DB9, 9 CONTACTS, RECEPTACLE, SOLDER, DE, AMPLIMITE HDJ-20 SERIES, PLASTIC BODY
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Contact Finish Thickness | Contact Type | Contact Finish | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Connector Type | Material Flammability Rating | Flange Feature | Backset Spacing | Backset Spacing | Number of Positions | Number of Rows [custom] | Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | Flash | Signal | Gold | Right Angle Through Hole | 1 | DE E | D-Sub | Receptacle Female Sockets | UL94 V-0 | Housing/Shell (Unthreaded) | 8.08 mm | 0.318 " | 9 | 2 | Solder | 6 A |
