R12808 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

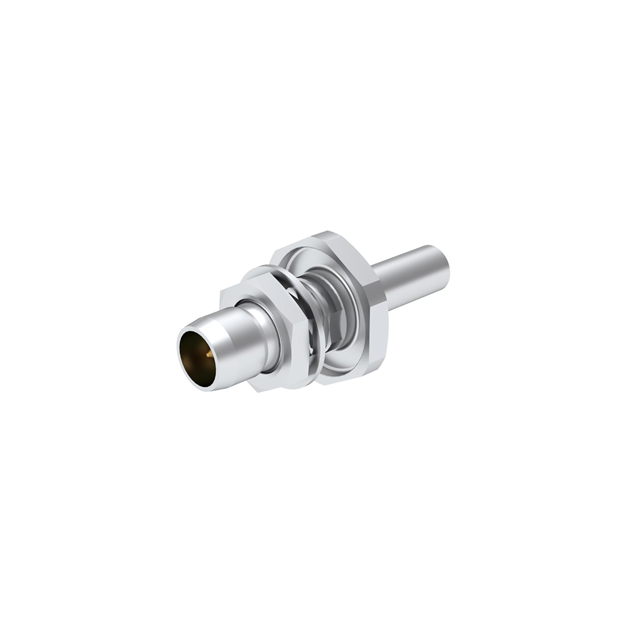

BMA / STRAIGHT BULKHEAD PLUG CRI
| Part | Body Finish | Center Contact Plating | Voltage Rating | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Housing Color | Connector Style | Center Contact Material | Cable Group | Number of Ports | Frequency - Max [Max] | Shield Termination | Contact Termination | Impedance | Fastening Type | Connector Type | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | White Bronze | Gold | 350 VDC | 500 | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | Brass | Silver | BMA | Bronze | 223 400 RG-142 | 1 | 12.4 GHz | Crimp | Crimp | 50 Ohms | Snap-On | Plug Male Pin | Panel Mount | Bulkhead - Front Side Nut |
 Radiall USA, Inc. | White Bronze | Gold | 350 VDC | 500 | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | Brass | Silver | BMA | Bronze | RG-316 Double Braid | 1 | 12.4 GHz | Crimp | Crimp | 50 Ohms | Snap-On | Plug Male Pin | Panel Mount | Bulkhead - Front Side Nut |
 Radiall USA, Inc. | White Bronze | Gold | 350 VDC | 500 | -65 ░C | 125 °C | Polytetrafluoroethylene (PTFE) | Brass | Silver | BMA | Bronze | 316 RG-188 | 1 | 12.4 GHz | Crimp | Crimp | 50 Ohms | Snap-On | Plug Male Pin | Panel Mount | Bulkhead - Front Side Nut |
