S11B-XH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

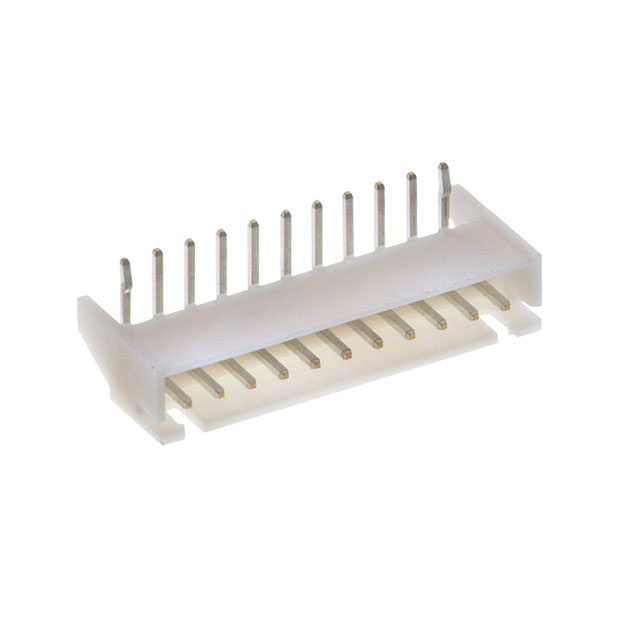

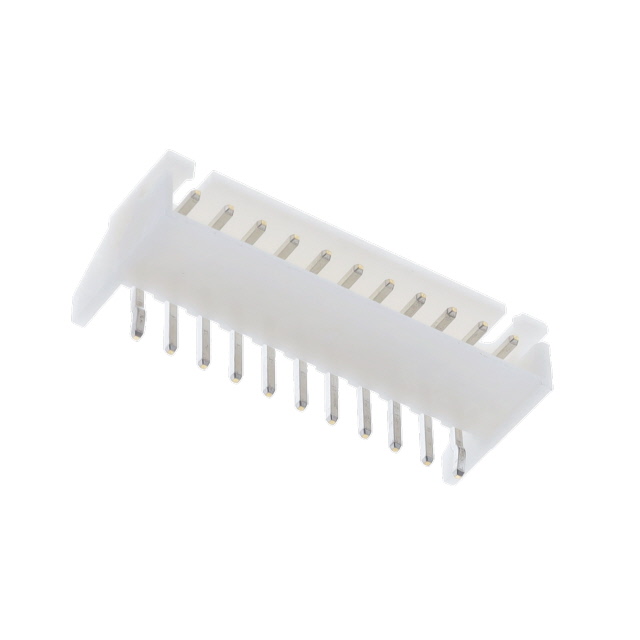

CONN HEADER R/A 11POS 2.5MM
| Part | Number of Positions Loaded | Insulation Color | Insulation Material | Fastening Type | Mounting Type | Number of Positions | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Voltage Rating | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Rows | Current Rating (Amps) | Contact Material | Style | Shrouding | Connector Type | Material Flammability Rating | Contact Shape | Contact Type | Contact Finish - Post | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | All | Natural | Nylon 6/6 Polyamide (PA66) | Detent Lock | Right Angle Through Hole | 11 | 2.5 mm | 0.098 in | 6.1 mm | 0.24 in | 250 V | 85 °C | -25 °C | Press-Fit Solder | 1 | 3 A | Brass | Board to Cable/Wire | Shrouded - 4 Wall | Header | UL94 V-0 | Square | Male Pin | Tin | 0.134 " | 3.4 mm |
 JST Sales America Inc. | All | Natural | Nylon 6/6 Polyamide (PA66) | Detent Lock | Right Angle Through Hole | 11 | 2.5 mm | 0.098 in | 6.1 mm | 0.24 in | 250 V | 85 °C | -25 °C | Press-Fit Solder | 1 | 3 A | Brass | Board to Cable/Wire | Shrouded - 4 Wall | Header | UL94 V-0 | Square | Male Pin | Tin | 0.134 " | 3.4 mm |
