FMC60 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

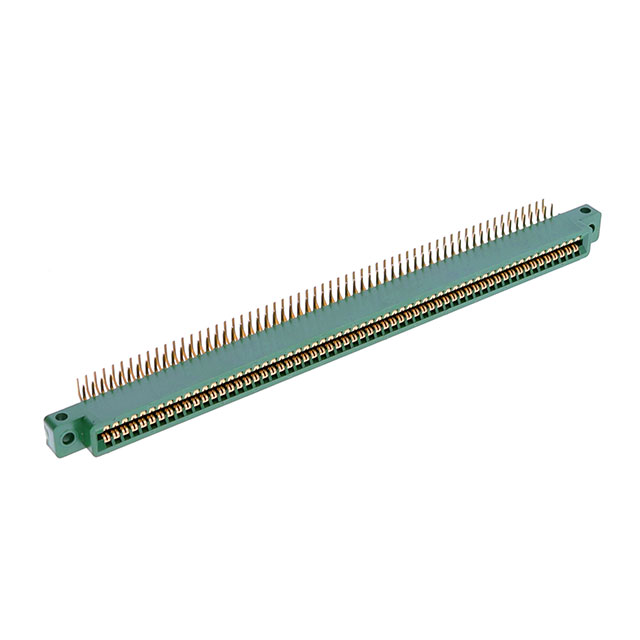

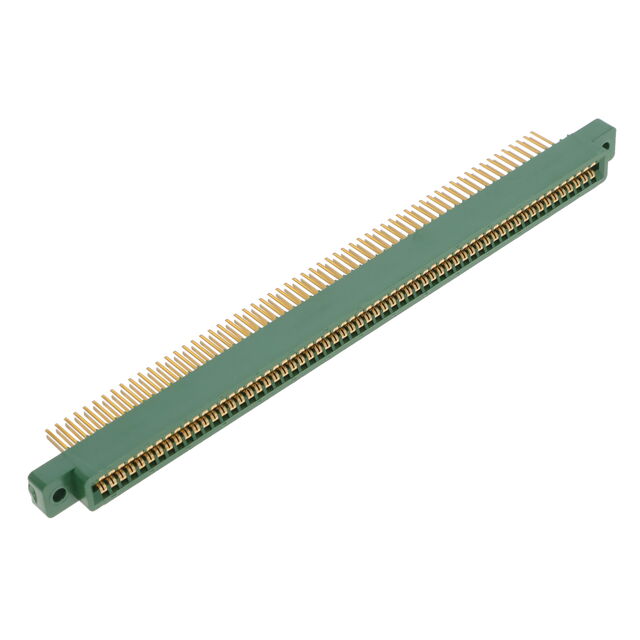

CONN EDGE DUAL FML 120POS 0.100
| Part | Material - Insulation | Number of Positions | Read Out | Card Type | Contact Finish | Gender | Contact Type | Termination | Color | Flange Feature | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Card Thickness | Card Thickness | Number of Positions/Bay/Row [custom] | Number of Rows [custom] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder | Green | 4-40 Threaded Insert Top Mount Opening | Through Hole | -65 ░C | 200 °C | 1.57 mm | 0.062 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder | Green | Through Hole | -65 ░C | 200 °C | 0.79 mm | 0.031 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | ||||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder | Green | Right Angle Through Hole | -65 ░C | 200 °C | 0.79 mm | 0.031 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | 0.125 " | 3.18 mm | ||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder Eyelet(s) | Green | Panel Mount | -65 ░C | 200 °C | 0.79 mm | 0.031 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | 0.125 " | 3.18 mm | ||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder | Green | Board Edge Straddle Mount | -65 ░C | 200 °C | 1.57 mm | 0.062 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | 0.125 " | 3.18 mm | Card Extender | |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder | Green | Through Hole | -65 ░C | 200 °C | 1.57 mm | 0.062 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | 0.125 " | 3.18 mm | ||
 Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder | Green | Side Mount Opening Unthreaded | Right Angle Through Hole | -65 ░C | 200 °C | 1.57 mm | 0.062 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | 0.125 " | 3.18 mm | |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder | Green | 4-40 Threaded Insert Top Mount Opening | Through Hole | -65 ░C | 200 °C | 0.79 mm | 0.031 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | |||
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder Eyelet(s) | Green | Floating Bobbin Top Mount Opening | Panel Mount | -65 ░C | 200 °C | 1.57 mm | 0.062 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | 0.116 " | 2.95 mm | |
Sullins Connector Solutions | Polyphenylene Sulfide (PPS) | 120 | Dual | Non Specified - Dual Edge | Gold | Female | Full Bellows | Solder | Green | Side Mount Opening Unthreaded | Through Hole | -65 ░C | 200 °C | 1.57 mm | 0.062 in | 60 | 2 | Spinodal | 30 Áin | 0.76 Ám | 0.1 " | 2.54 mm | 0.125 " | 3.18 mm |
