APT25GR120 Series

Catalog

IGBT 1200V 75A 521W TO247

Part	Test Condition	Gate Charge	Td (on/off) @ 25°C	Current - Collector (Ic) (Max) [Max]	Mounting Type	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic	Switching Energy	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Pulsed (Icm)	Voltage - Collector Emitter Breakdown (Max) [Max]	Package / Case	IGBT Type	Supplier Device Package
Microsemi Corporation APT25GR120BSCD10	4.3 Ohm 15 V 25 A 600 V	203 nC	16 ns 122 ns	75 A	Through Hole	521 W	3.2 V	434 µJ 466 µJ	150 °C	-55 °C	100 A	1200 V	TO-247-3	NPT	TO-247

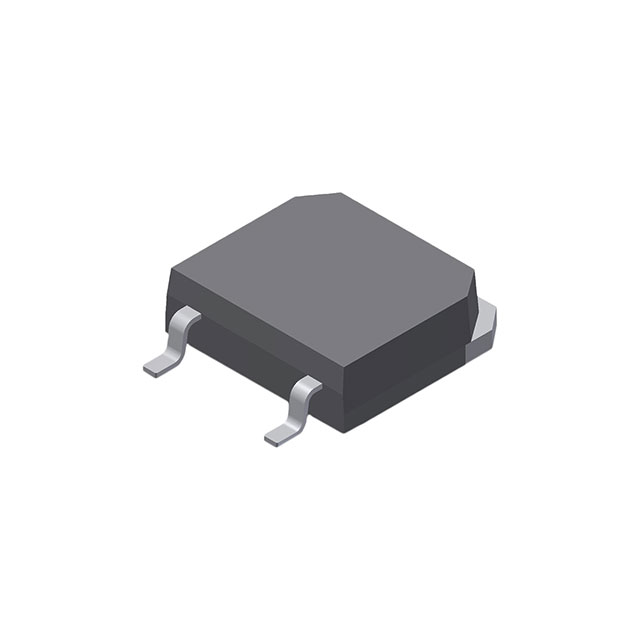

Microsemi Corporation APT25GR120SSCD10	4.3 Ohm 15 V 25 A 600 V	203 nC	16 ns 122 ns	75 A	Surface Mount	521 W	3.2 V	434 µJ 466 µJ	150 °C	-55 °C	100 A	1200 V	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	NPT	D3PAK
