W22S2 Series
Manufacturer: c3controls
Beta
⌘K

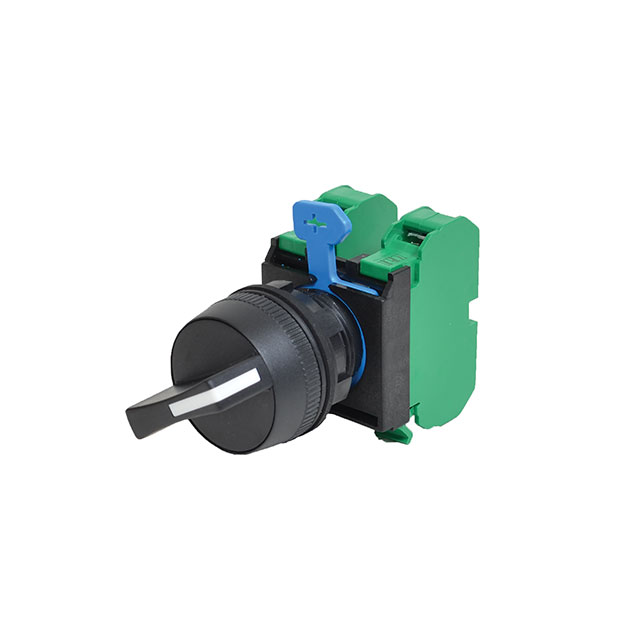

SWITCH SELECT 2POS DPST 10A 72V
| Part | Approval Agency | Depth Behind Flange [z] | Mechanical Life | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Ingress Protection | Mounting Type | Termination Style | Panel Cutout Dimensions [diameter] | Type | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Circuit | Switch Function | Depth Behind Flange | Requires | Actuator Type | (Select First, Then Apply Filters) Compatible Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 c3controls | CE cULus | 68.6 mm | 500000 Cycles | 2.5 A 10 A | 72 V | 28 V | IP66 - Dust Tight Water Resistant | Panel Mount | Screw Terminal | 22.5 mm | Standard | Non-Illuminated | 55 °C | -40 C | 2 | DPST-NO/NC | Off-On On-Off | ||||
c3controls | CE cULus | 500000 Cycles | 2.5 A 10 A | 72 V | 28 V | IP66 - Dust Tight Water Resistant | Panel Mount | Screw Terminal | 22.5 mm | Standard | Non-Illuminated | 55 °C | -40 C | 2 | SPST-NO | Off-On | 45.6 mm | ||||
c3controls | 22.5 mm | Maintained | Non-Illuminated | Contact Block(s) | Selector | 22 c3controls |
