TPS82150 Series

Catalog

TPS82150 DC TO DC CONVERTER AND SWITCHING REGULATOR MODULE 1.8V OUTPUT EVALUATION BOARD

Part	Board Type	Outputs and Type	Outputs and Type	Supplied Contents	Voltage - Output	Contents	Current - Output	Regulator Topology	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Type	Number of Outputs	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Supplier Device Package	Current - Output (Max) [Max]	Features	Applications	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]

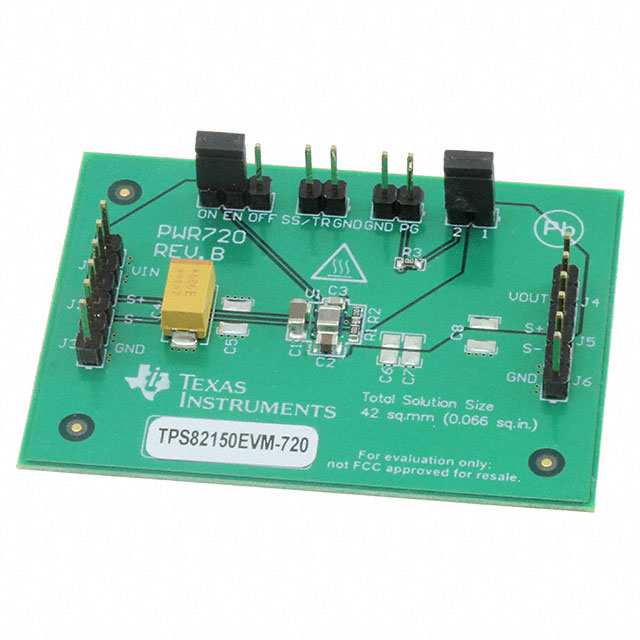

Texas Instruments TPS82150EVM-720	Fully Populated	1	1 Non-Isolated Output Non-Isolated	Board(s)	1.8 V	Board(s)	1 A	Buck	DC/DC Step Down	3 V	17 V

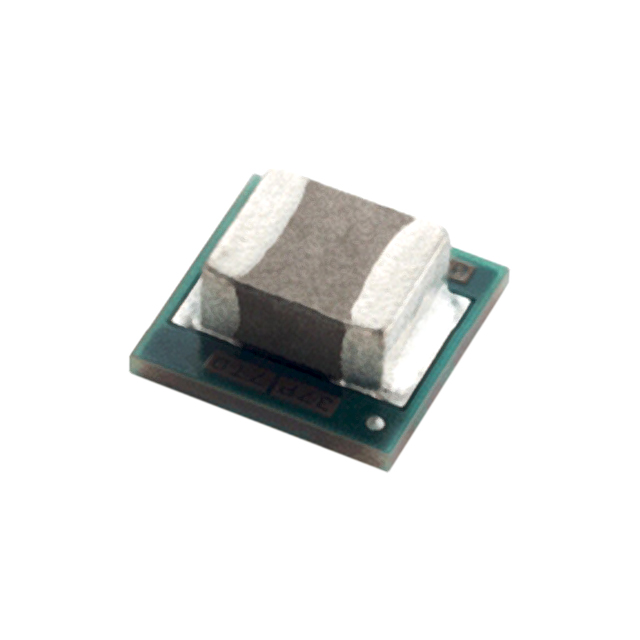

Texas Instruments TPS82150SILT												125 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	1	8-LDFN Exposed Pad Module	3 V	17 V	8-uSIP	1 A	OTP	ITE (Commercial)	6 V	0.9 V	3 mm	1.5 mm	0.12 inches	0.11 "	2.8 mm	0.06 "
Texas Instruments TPS82150SILR												125 °C	-40 °C	Surface Mount	Non-Isolated PoL Module	1	8-LDFN Exposed Pad Module	3 V	17 V	8-uSIP (3x2.8)	1 A	OTP	ITE (Commercial)	6 V	0.9 V	3 mm	1.5 mm	0.12 inches	0.11 "	2.8 mm	0.06 "
