C14621R016 Series

Catalog

CONN HOOD TOP ENTRY SZE16 M32

Part	Connector Type	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Housing Material	Lock Location	Ingress Protection	Size	Style	Features

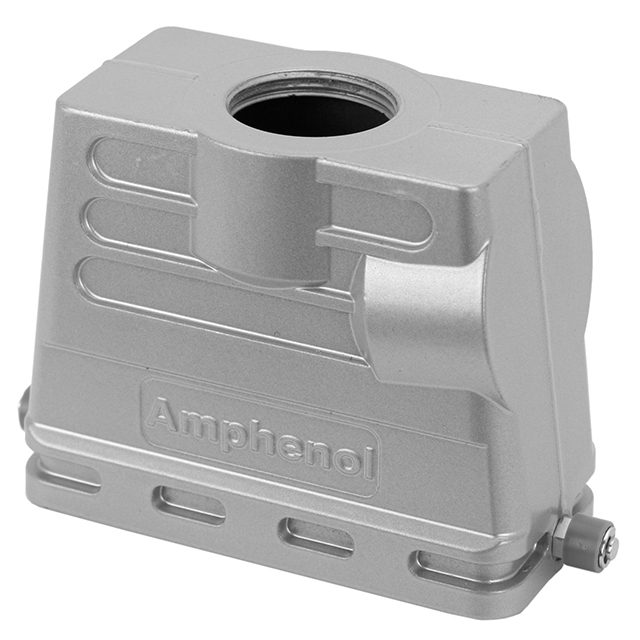

Amphenol Tuchel Industrial C14621R0166068	Hood	M32	-40 C	100 °C	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Aluminum Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	E16	Top Entry

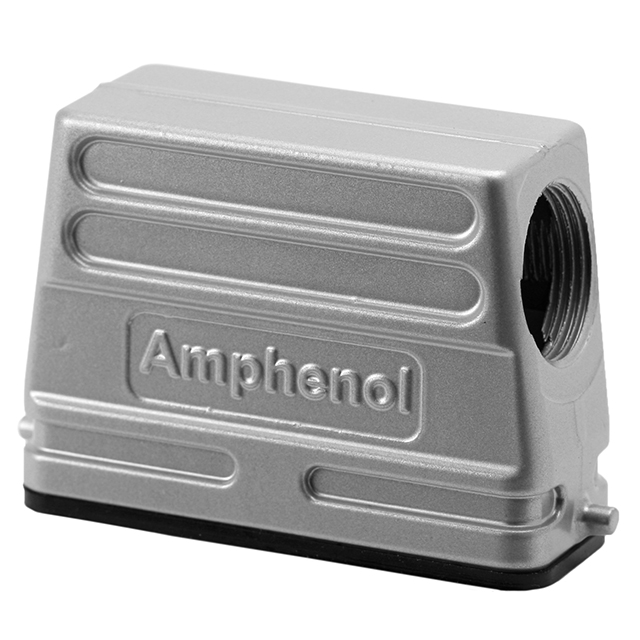

Amphenol Tuchel Industrial C14621R0165504	Hood	M20	-40 C	100 °C	3.11 "	29.5 mm	2.283 "	58 mm	1.161 in	79 mm	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	A16	Side Entry

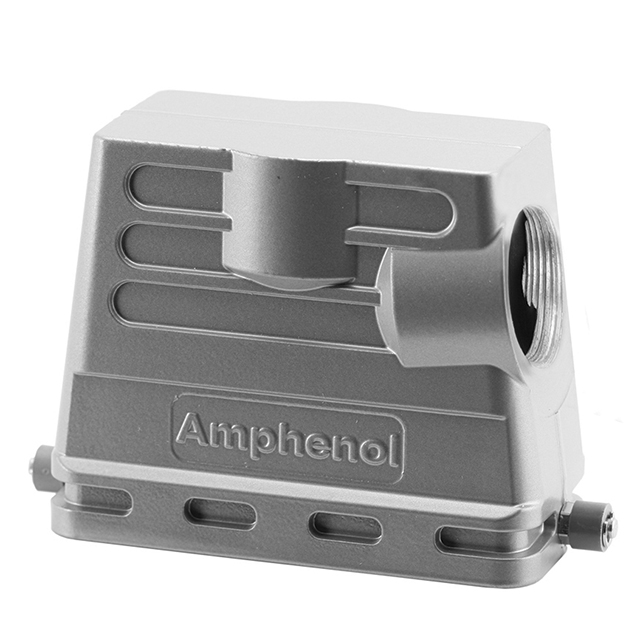

Amphenol Tuchel Industrial C14621R0165068	Hood	M32	-40 C	100 °C	3.681 in	43 mm	2.992 in	76 mm	1.693 "	93.5 mm	Aluminum Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	E16	Side Entry

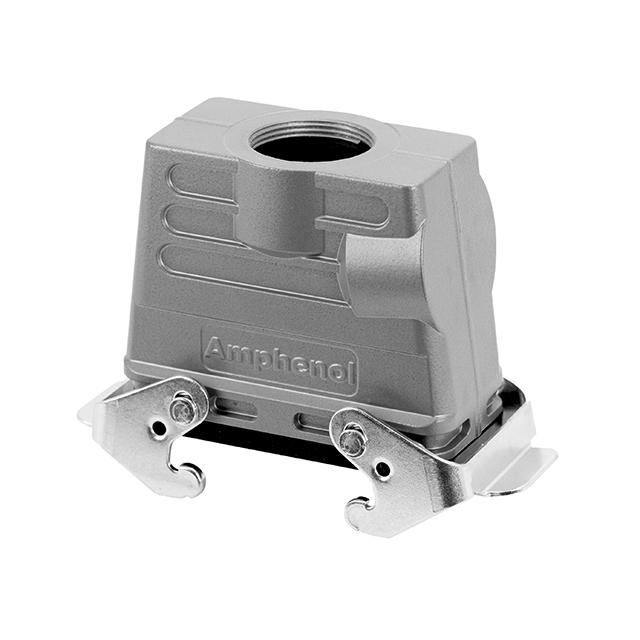

Amphenol Tuchel Industrial C14621R0168521	Hood - Coupling	M25	-40 C	100 °C	3.681 in	43 mm	2.441 "	62 mm	1.693 "	93.5 mm	Aluminum Alloy Die Cast	Locking Clip (2) on Hood Top	IP65 - Dust Tight Water Resistant	E16	Bottom Entry Top or Bottom Entry	Cable to Cable

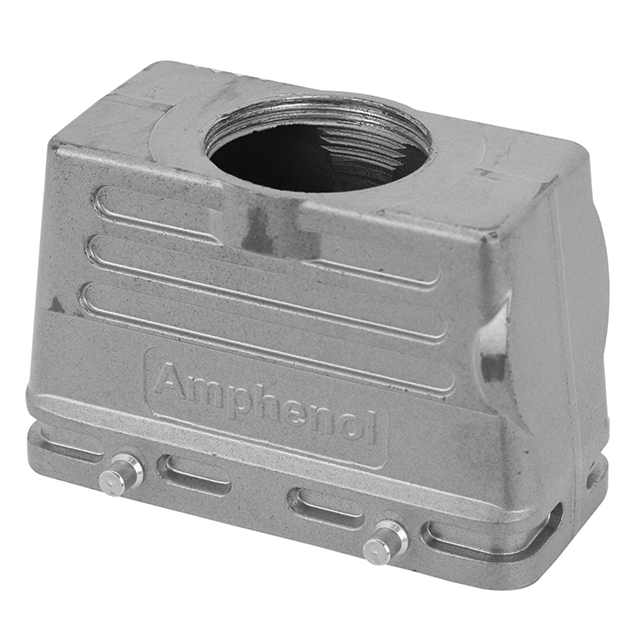

Amphenol Tuchel Industrial C14621R0166001	Hood	M32	-40 C	100 °C	3.681 in	43 mm	2.441 "	62 mm	1.693 "	93.5 mm	Aluminum Alloy Die Cast	Locking Clip (2) on Base Bottom	IP65 - Dust Tight Water Resistant	E16	Top Entry
Amphenol Tuchel Industrial C14621R0165061	Hood	M32	-40 C	100 °C	3.681 in	43 mm	2.441 "	62 mm	1.693 "	93.5 mm	Aluminum Alloy Die Cast	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	E16	Side Entry
