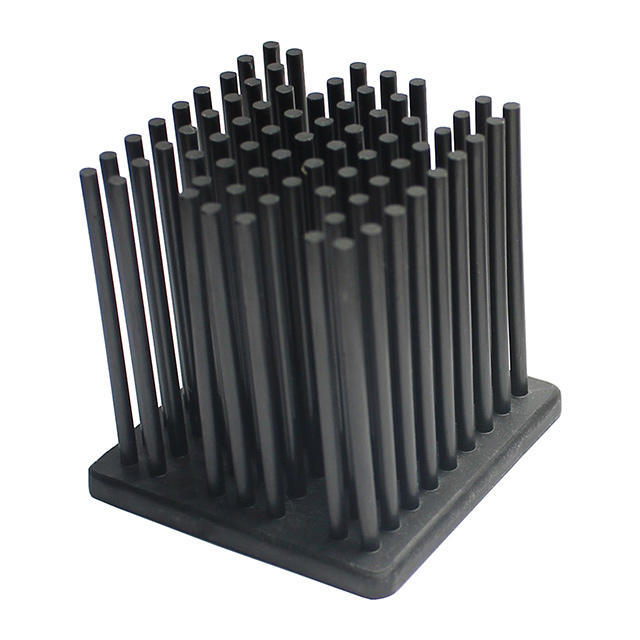

APR33 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Package Cooled	Length	Length	Fin Height	Fin Height [custom]	Width [x]	Width [x]	Type	Attachment Method	Thermal Resistance @ Natural	Material Finish	Material	Shape	Thermal Resistance @ Forced Air Flow	Fin Height [custom]	Fin Height [custom]	Fin Height [z]	Fin Height [z]	Fin Height [custom]	Fin Height
CTS Thermal Management Products APR33-33-15CB/A01	24 Months	ASIC BGA CPU LGA	32.6 mm	1.283 "	14.6 mm	0.575 in	32.6 mm	1.283 in	Top Mount	Thermal Tape Adhesive (Included)	11.35 °C/W	Black Anodized	Aluminum Alloy	Pin Fins Square	3.27 °C/W
CTS Thermal Management Products APR33-33-23CB/A01	24 Months	ASIC BGA CPU LGA	32.6 mm	1.283 "			32.6 mm	1.283 in	Top Mount	Thermal Tape Adhesive (Included)	10.24 °C/W	Black Anodized	Aluminum Alloy	Pin Fins Square	2.56 °C/W	22.61 mm	0.89 in
CTS Thermal Management Products APR33-33-28CB/A01	24 Months	ASIC BGA CPU LGA	32.6 mm	1.283 "			32.6 mm	1.283 in	Top Mount	Thermal Tape Adhesive (Included)	9.4 °C/W	Black Anodized	Aluminum Alloy	Pin Fins Square	2.33 °C/W			27.6 mm	1.087 in

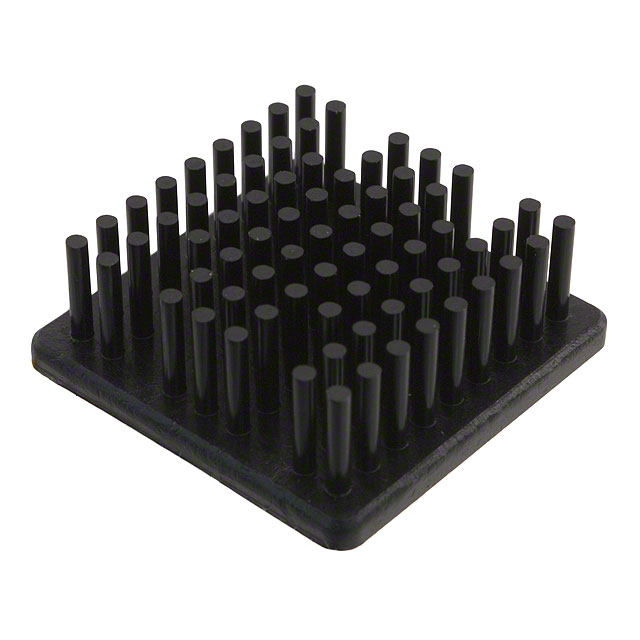

CTS Thermal Management Products APR33-33-12CB/A01	24 Months	ASIC BGA CPU LGA	32.6 mm	1.283 "		0.457 in	32.6 mm	1.283 in	Top Mount	Thermal Tape Adhesive (Included)		Black Anodized	Aluminum	Pin Fins Square	3.8 °C/W					11.6 mm
CTS Thermal Management Products APR33-33-33CB/A01	24 Months	ASIC BGA CPU LGA	32.6 mm	1.283 "	32.6 mm		32.6 mm	1.283 in	Top Mount	Thermal Tape Adhesive (Included)	8.89 °C/W	Black Anodized	Aluminum Alloy	Pin Fins Square	2.12 °C/W						1.283 in

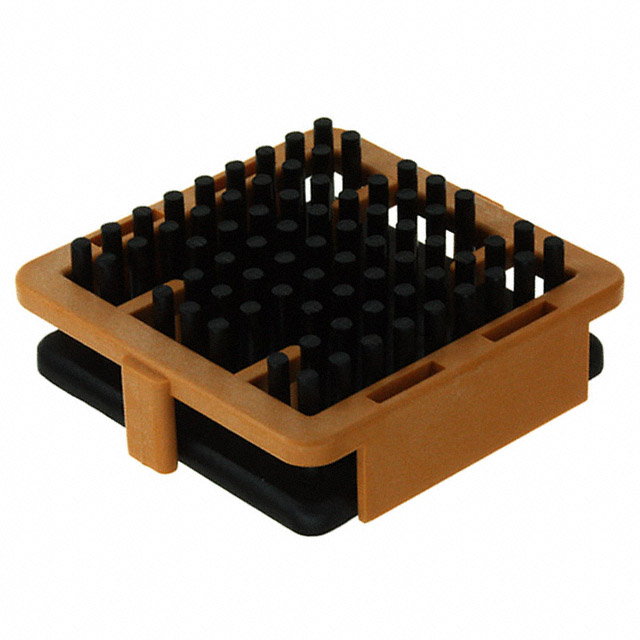

CTS Thermal Management Products APR33-33-12CB/S		ASIC BGA CPU LGA	32.6 mm	1.283 "		0.457 in	32.6 mm	1.283 in	Top Mount	Clip		Black Anodized	Aluminum	Pin Fins Square	3.8 °C/W					11.6 mm
CTS Thermal Management Products APR33-33-18CB/A01	24 Months	ASIC BGA CPU LGA	32.6 mm	1.283 "	17.6 mm		32.6 mm	1.283 in	Top Mount	Thermal Tape Adhesive (Included)	10.96 °C/W	Black Anodized	Aluminum Alloy	Pin Fins Square	3.01 °C/W						0.693 in
CTS Thermal Management Products APR33-33-21CB/A01	24 Months	ASIC BGA CPU LGA	32.6 mm	1.283 "	20.6 mm		32.6 mm	1.283 in	Top Mount	Thermal Tape Adhesive (Included)	10.54 °C/W	Black Anodized	Aluminum Alloy	Pin Fins Square	2.78 °C/W						0.811 in
