055650 Series

Manufacturer: Molex

Catalog

CONN BOARD TO BOARD HDR 40 POS 0.5MM SOLDER ST SMD SLIMSTACK T/R

Part	Connector Type	Mounting Type	Features	Contact Finish	Number of Rows	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Positions
Molex 0556500488	Outer Shroud Contacts Plug	Surface Mount	Solder Retention	Gold	2	0.5 mm	0.02 in	1.6 mm	0.063 in	10 Áin	0.25 Ám	2 mm	40
Molex 0556500388	Outer Shroud Contacts Plug	Surface Mount	Solder Retention	Gold	2	0.5 mm	0.02 in	1.6 mm	0.063 in	10 Áin	0.25 Ám	2 mm	30

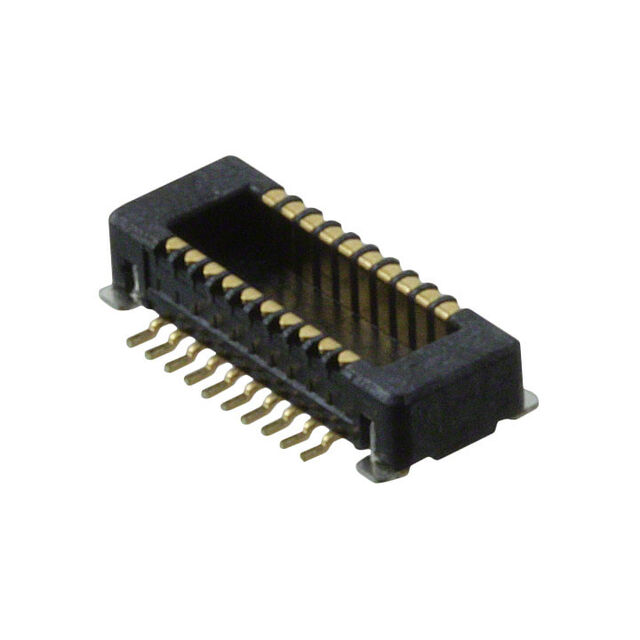

Molex 0556500288	Outer Shroud Contacts Plug	Surface Mount	Solder Retention	Gold	2	0.5 mm	0.02 in	1.6 mm	0.063 in	10 Áin	0.25 Ám	1.5 mm	20
Molex 0556504078	Outer Shroud Contacts Plug	Surface Mount	Solder Retention	Gold	2	0.5 mm	0.02 in	1.6 mm	0.063 in	10 Áin	0.25 Ám	2 mm	40
Molex 0556500588	Outer Shroud Contacts Plug	Surface Mount	Solder Retention	Gold	2	0.5 mm	0.02 in	1.6 mm	0.063 in	10 Áin	0.25 Ám	2 mm	50
Molex 0556500688	Outer Shroud Contacts Plug	Surface Mount	Solder Retention	Gold	2	0.5 mm	0.02 in	1.6 mm	0.063 in	10 Áin	0.25 Ám	2 mm	60
Molex 0556503078
