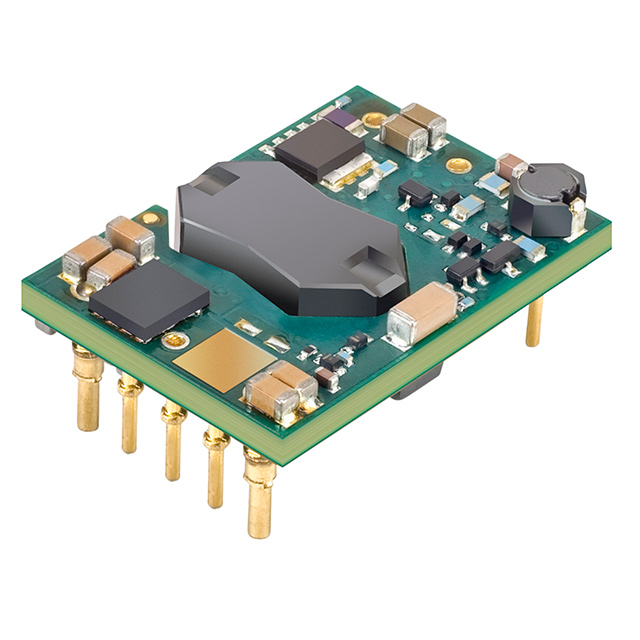

UWS-12 Series

Catalog

DC DC CONVERTER 12V 54W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Package / Case	Mounting Type	Power (Watts)	Features	Voltage - Input (Min) [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Number of Outputs	Control Features	Voltage - Isolation	Type	Voltage - Output 1	Efficiency	Applications
Murata Electronics UWS-12/4.5-Q48PH-C	85 °C	-40 C	4.5 A	75 V	8-DIP Module 1/16 Brick	Through Hole	54 W	Remote On/Off UVLO	18 V	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	1	Active High Enable	2250 VDC	Isolated Module	12 V	91 %	ITE (Commercial)
Murata Electronics UWS-12/4.5-Q48NM-C	85 °C	-40 C	4.5 A	75 V	8-SMD Module 1/16 Brick	Surface Mount	54 W	Remote On/Off UVLO	18 V	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	1	Active Low Enable	2250 VDC	Isolated Module	12 V	91 %	ITE (Commercial)
Murata Electronics UWS-12/4.5-Q48P-C	85 °C	-40 C	4.5 A	75 V	8-DIP Module 1/16 Brick	Through Hole	54 W	Remote On/Off UVLO	18 V	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	1	Active High Enable	2250 VDC	Isolated Module	12 V	91 %	ITE (Commercial)

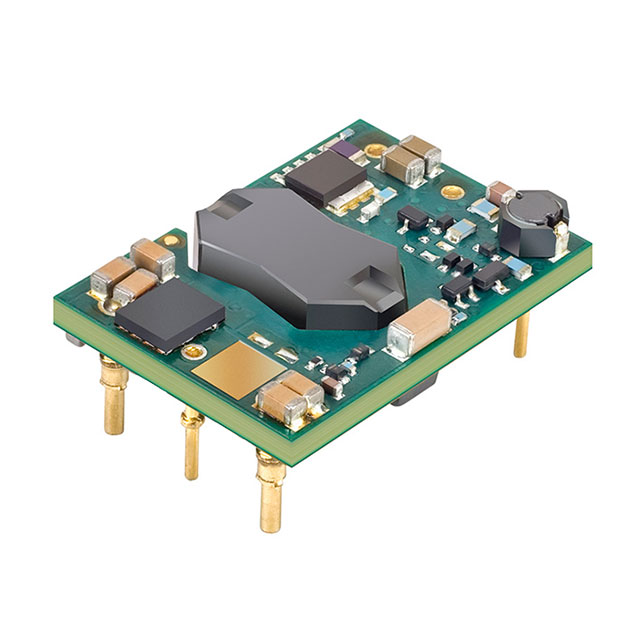

Murata Electronics UWS-12/4.5-Q48N-C	85 °C	-40 C	4.5 A	75 V	8-DIP Module 1/16 Brick	Through Hole	54 W	Remote On/Off UVLO	18 V	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	1	Active Low Enable	2250 VDC	Isolated Module	12 V	91 %	ITE (Commercial)
Murata Electronics UWS-12/4.5-Q48NH-C	85 °C	-40 C	4.5 A	75 V	8-DIP Module 1/16 Brick	Through Hole	54 W	Remote On/Off UVLO	18 V	1.31 in	0.91 in	33.3 mm	0.36 in	9.1 mm	23.1 mm	1	Active Low Enable	2250 VDC	Isolated Module	12 V	91 %	ITE (Commercial)
