ALCOSWITCH LPT Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Termination Style	Mounting Type	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Outline [x]	Outline [y]	Illumination	Circuit	Actuator Orientation	Operating Force	Switch Function	Mechanical Life	Switch Travel	Actuator Material	Actuator Height off PCB, Vertical

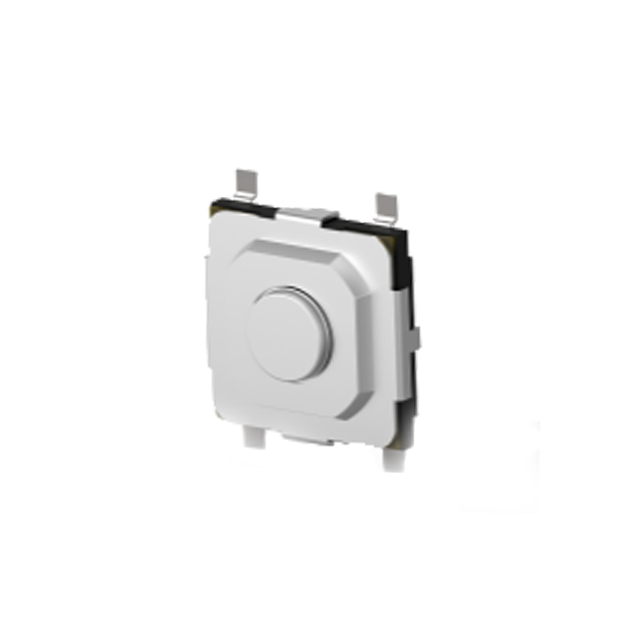

TE Connectivity AMP Connectors MSLPT5252CG3BTR	Gull Wing	Surface Mount	0.05 A 12 VDC	2 mm	Standard	-25 °C	70 °C	5.2 mm	5.2 mm	Non-Illuminated	SPST-NO	Top Actuated	160 gf	Off-Mom

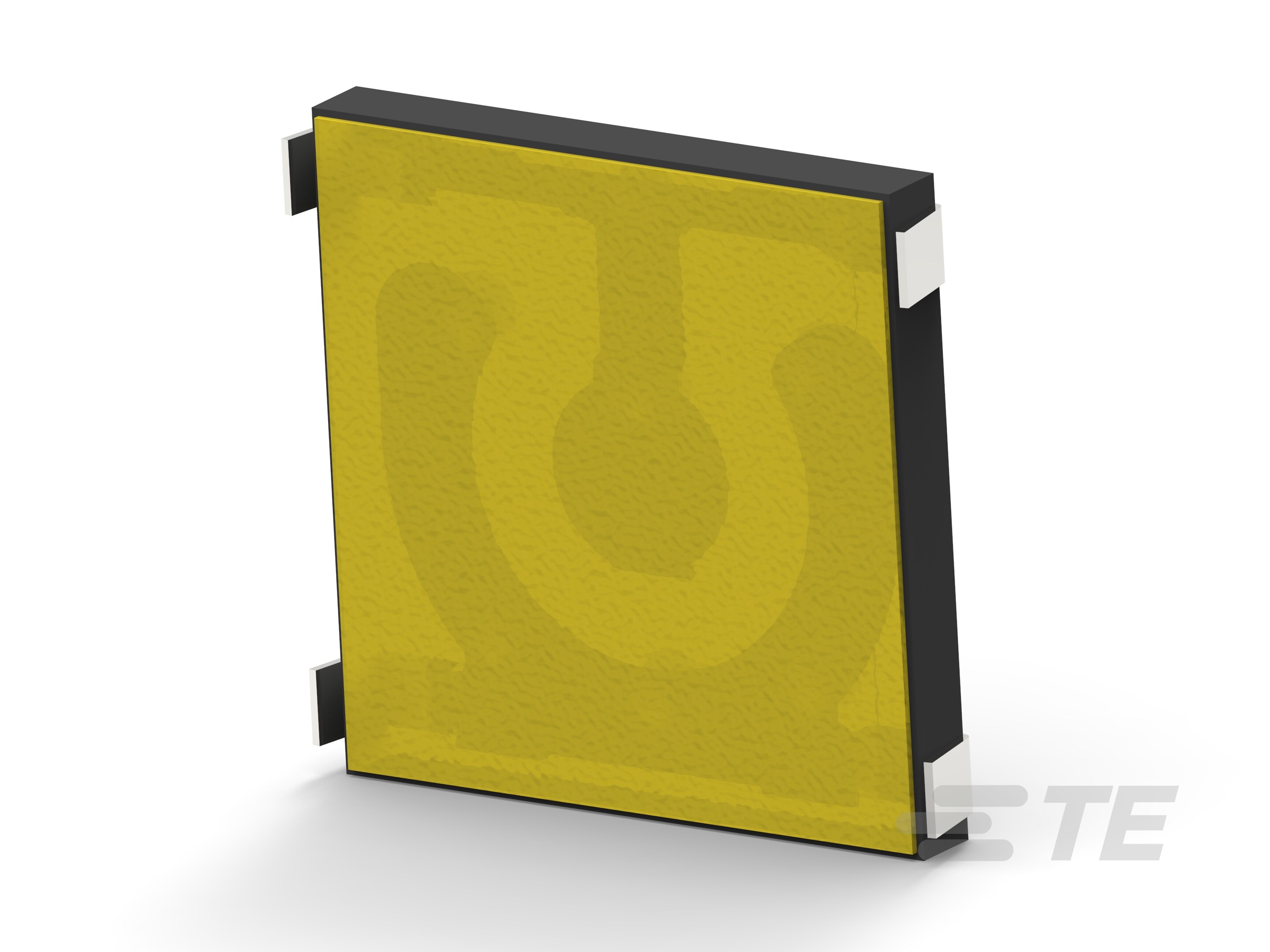

TE Connectivity AMP Connectors MCSLPT4644B2TR	J Lead	Surface Mount	0.05 A 12 VDC	0.55 mm	Flush	-20 ░C	70 °C	4.6 mm	4.4 mm	Non-Illuminated	SPST-NO	Top Actuated	160 gf	Off-Mom	1000000 Cycles	0.2 mm	Polyamide (PA) Nylon
TE Connectivity AMP Connectors MCSLPT4644B3PHTR	J Lead	Surface Mount	0.05 A 12 VDC	1.05 mm	Standard	-20 ░C	70 °C	4.6 mm	4.4 mm	Non-Illuminated	SPST-NO	Top Actuated	0.2 kgf	Off-Mom

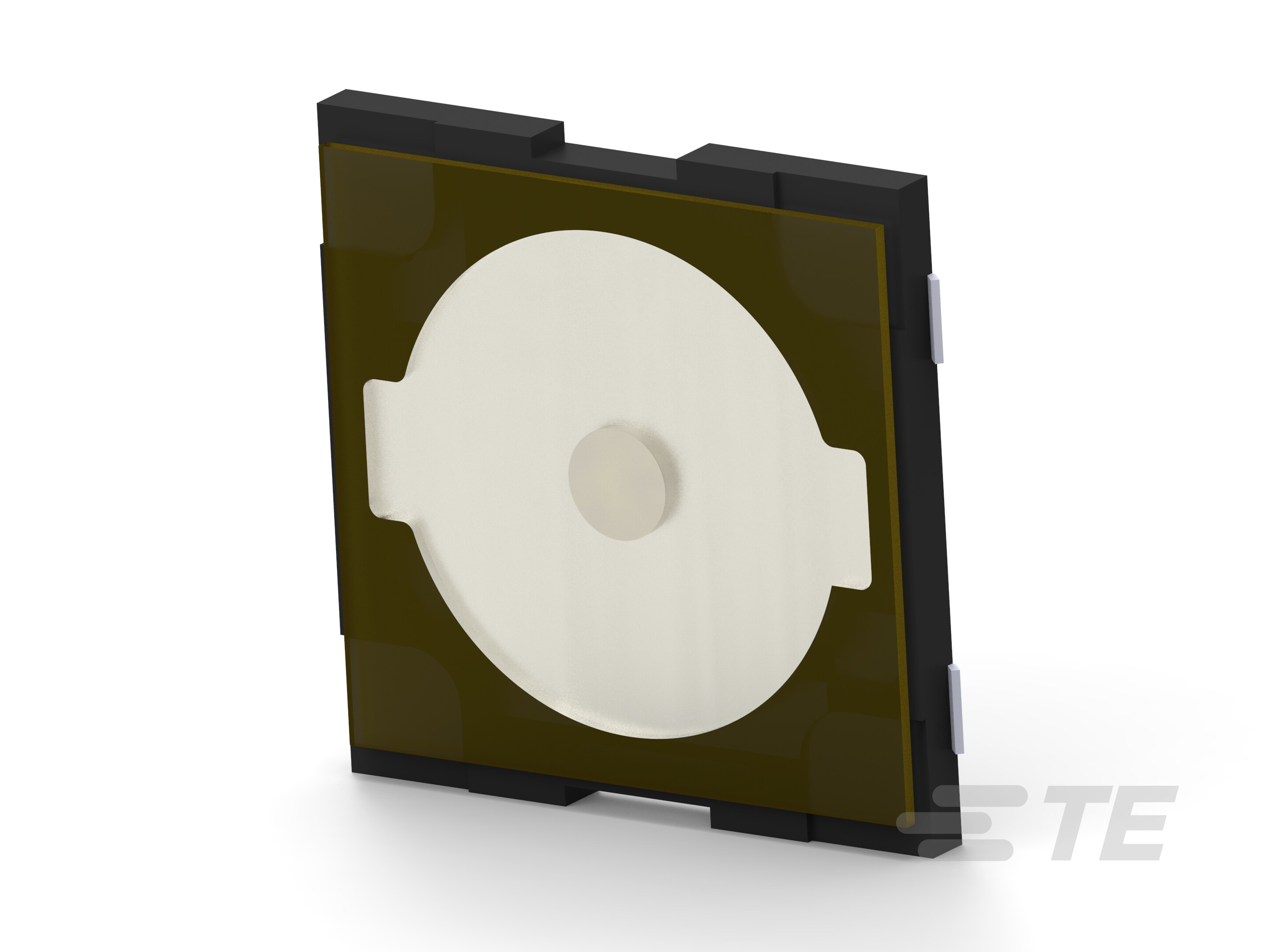

TE Connectivity AMP Connectors MCSLPT4848A2DTR	J Lead	Surface Mount	0.05 A 12 VDC	0.55 mm	Flush	-30 ░C	80 °C	4.8 mm	4.8 mm	Non-Illuminated	SPST-NO	Top Actuated	160 gf	Off-Mom	1000000 Cycles	0.2 mm	Polyamide (PA) Nylon

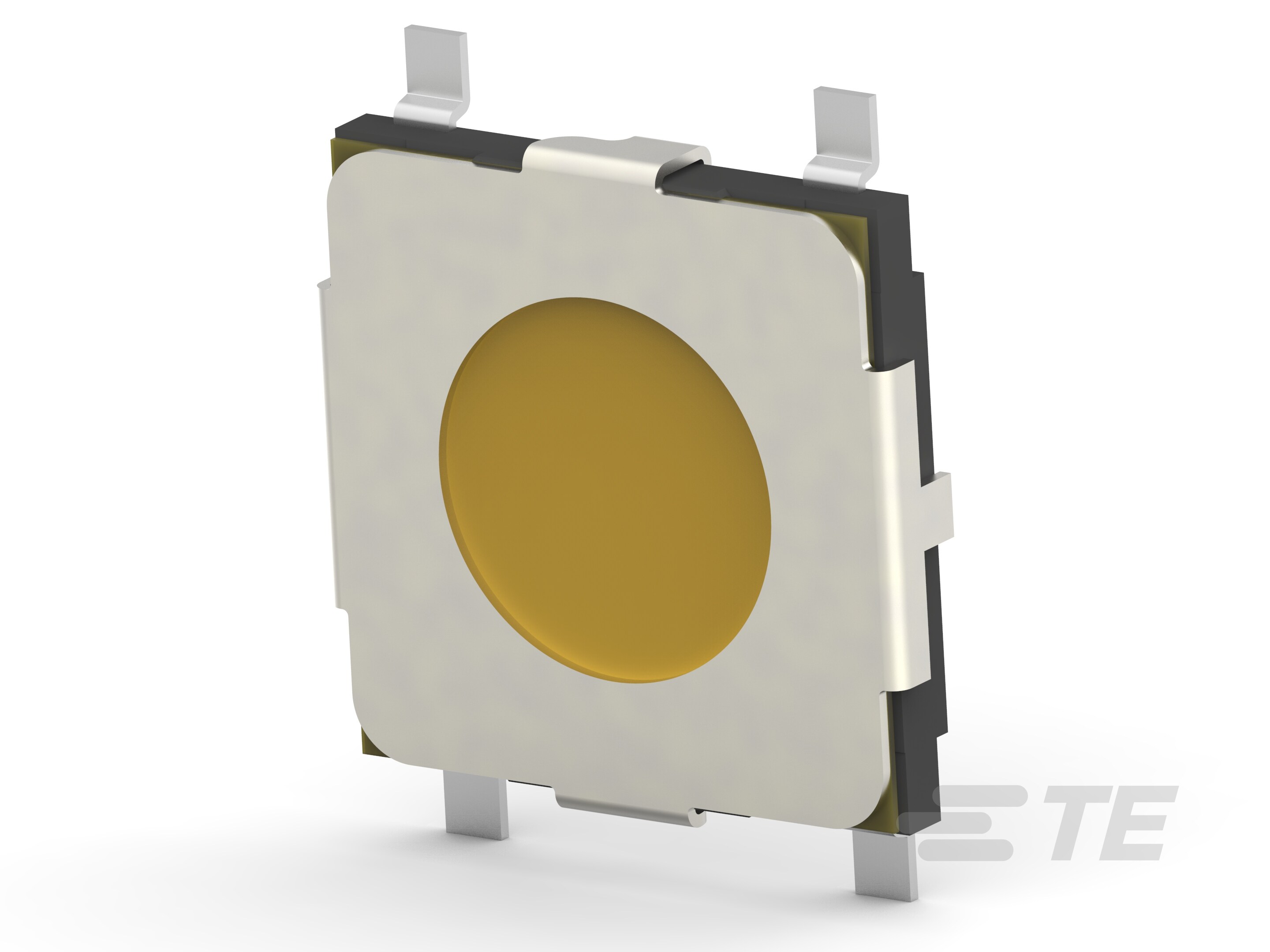

TE Connectivity AMP Connectors MSLPT5252AG3TR	Gull Wing	Surface Mount	0.05 A 12 VDC	0.8 mm	Flush	-25 °C	70 °C	5.2 mm	5.2 mm	Non-Illuminated	SPST-NO	Top Actuated	160 gf	Off-Mom	1000000 Cycles	0.25 mm

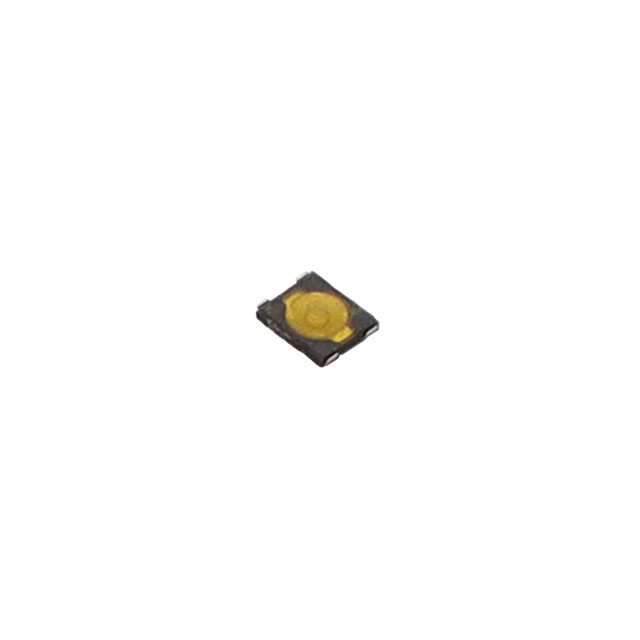

TE Connectivity AMP Connectors USLPT3026EL1TR	J Lead	Surface Mount	0.02 A 15 VDC		Standard	-40 C	85 °C	3 mm	2.6 mm	Non-Illuminated	SPST-NO	Top Actuated	100 gf	Off-Mom	100000 Cycles	0.15 mm	Polyamide (PA) Nylon	0.65 mm
TE Connectivity AMP Connectors MSLPT5252CG2WTR	Gull Wing	Surface Mount	0.05 A 12 VDC	2 mm	Standard	-25 °C	70 °C	5.2 mm	5.2 mm	Non-Illuminated	SPST-NO	Top Actuated	100 gf	Off-Mom	1000000 Cycles	0.25 mm	Thermoplastic
TE Connectivity AMP Connectors MSLPT5252CG4WTR	Gull Wing	Surface Mount	0.05 A 12 VDC	2 mm	Standard	-25 °C	70 °C	5.2 mm	5.2 mm	Non-Illuminated	SPST-NO	Top Actuated	260 gf	Off-Mom	200000 Cycles	0.25 mm	Thermoplastic
TE Connectivity AMP Connectors MCSLPT4848A3DTR	J Lead	Surface Mount	0.05 A 12 VDC	0.55 mm	Flush	-30 ░C	80 °C	4.8 mm	4.8 mm	Non-Illuminated	SPST-NO	Top Actuated	0.2 kgf	Off-Mom	500000 Cycles	0.2 mm	Polyamide (PA) Nylon
TE Connectivity AMP Connectors MCSLPT4848A5DTR	J Lead	Surface Mount	0.05 A 12 VDC	0.55 mm	Flush	-30 ░C	80 °C	4.8 mm	4.8 mm	Non-Illuminated	SPST-NO	Top Actuated	360 gf	Off-Mom	200000 Cycles	0.2 mm	Polyamide (PA) Nylon
