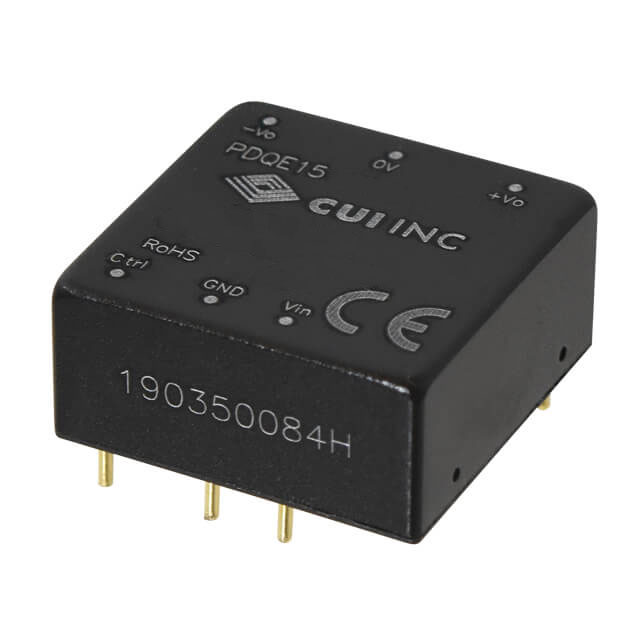

PDQE15 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-5V 15W

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Standard Number	Mounting Type	Approval Agency	Package / Case	Applications	Voltage - Output 1	Voltage - Output 2	Features	Voltage - Isolation	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Current - Output (Max)	Efficiency	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Max]
CUI Inc. PDQE15-Q48-D5-D	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	Isolated Module	55024 55032	Through Hole	EN	6-DIP Module	ITE (Commercial)	5 V	-5 V	OCP OVP Remote On/Off SCP	1.5 kV	15 W	105 C	-40 °C	2	1.5 A	86 %	18 V	75 V
CUI Inc. PDQE15-Q24-S24-D	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	Isolated Module	55024 55032 Class A 62368-1	Through Hole	CB Scheme EN IEC UL	6-DIP Module	ITE (Commercial)	24 V		OCP OVP Remote On/Off SCP	1.5 kV	15 W	105 C	-40 °C	1		91 %	9 V	36 V	625 mA
CUI Inc. PDQE15-Q48-D12-D	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	Isolated Module	55024 55032	Through Hole	EN	6-DIP Module	ITE (Commercial)	12 V	-12 V	OCP OVP Remote On/Off SCP	1.5 kV	15 W	105 C	-40 °C	2		90 %	18 V	75 V	625 mA	625 mA
CUI Inc. PDQE15-Q48-S24-D	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	Isolated Module	55024 55032 Class A 62368-1	Through Hole	CB Scheme EN IEC UL	6-DIP Module	ITE (Commercial)	24 V		OCP OVP Remote On/Off SCP	1.5 kV	15 W	105 C	-40 °C	1		91 %	18 V	75 V	625 mA
CUI Inc. PDQE15-Q24-D12-D	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	Isolated Module	55024 55032	Through Hole	EN	6-DIP Module	ITE (Commercial)	12 V	-12 V	OCP OVP Remote On/Off SCP	1.5 kV	15 W	105 C	-40 °C	2		90 %	9 V	36 V	625 mA	625 mA
CUI Inc. PDQE15-Q24-S5-D	1 "	25.4 mm	1 in	0.46 in	11.7 mm	25.4 mm	Isolated Module	55024 55032 Class A 62368-1	Through Hole	CB Scheme EN IEC UL	6-DIP Module	ITE (Commercial)	5 V		OCP OVP Remote On/Off SCP	1.5 kV	15 W	95 °C	-40 °C	1		90 %	9 V	36 V	3 A
