EB171A Series
Manufacturer: Adam Tech
Beta
⌘K
EURO BLOCK, 5 POSITION
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Contact Material - Plating | Wire Termination | Wire Gauge [Min] | Wire Gauge [Max] | Mating Orientation | Features | Number of Levels | Pitch | Pitch | Positions Per Level | Mounting Type | Color | Voltage | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

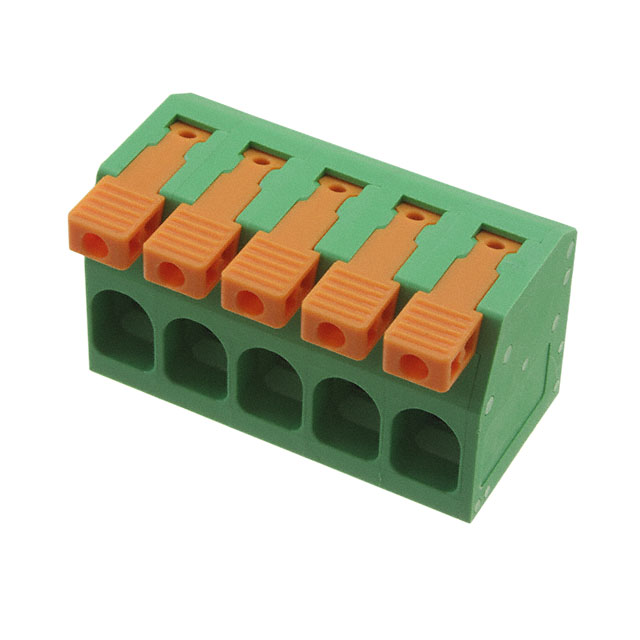

 Adam Tech | -40 C | 105 ░C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Screwless - Spring Cage Tension Clamp | 4 AWG | 18 AWG | Horizontal with Board | Lever Actuated | 1 | 0.394 in | 10 mm | 5 | Through Hole | Green | 600 V | 51 A |
 Adam Tech | -40 C | 105 ░C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Screwless - Spring Cage Tension Clamp | 10 AWG | 24 AWG | Horizontal with Board | Lever Actuated | 1 | 0.295 in | 7.5 mm | 3 | Through Hole | Green | 600 V | 27 A |

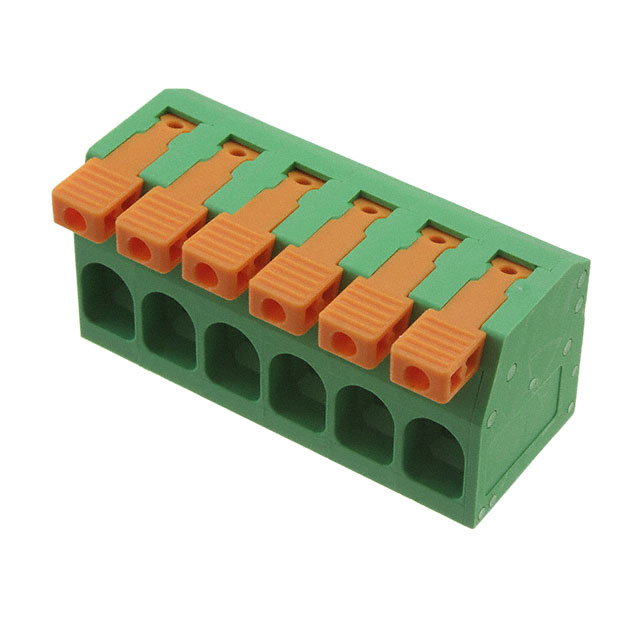

 Adam Tech | -40 C | 105 ░C | Polyamide (PA) Nylon | Copper Alloy - Tin Plated | Screwless - Spring Cage Tension Clamp | 4 AWG | 18 AWG | Horizontal with Board | Lever Actuated | 1 | 0.394 in | 10 mm | 6 | Through Hole | Green | 600 V | 51 A |
