POE-I Series

Catalog

PASSIVE GIGABIT POE INJECTOR/SPL

Part	Output Connector	For Use With/Related Products	Input Connector	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Type	Power (Watts) - Per Port	Number of Ports	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Data Rate	Voltage - Input	Data Rate [Min]	Data Rate [Max]	Voltage - Output

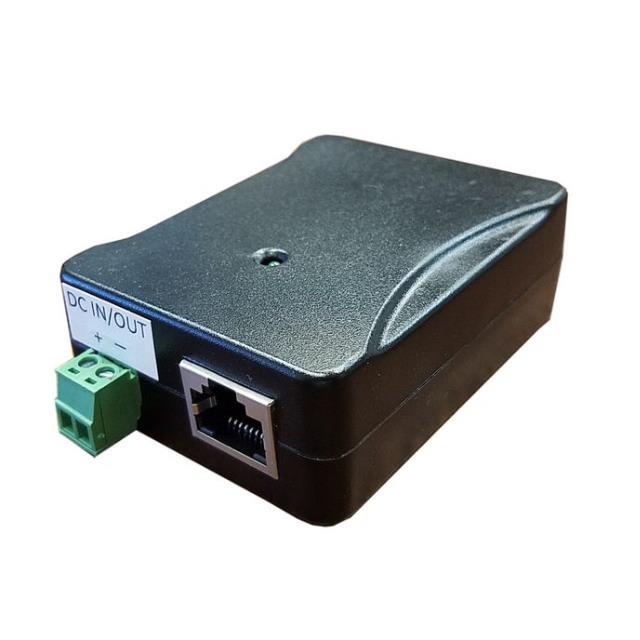

Tycon Systems Inc. POE-INJ-1000-WT	RJ45 (Data Power)	Ethernet RJ45	RJ45 (Data Power)	2 A 2.25 A	85 °C	-40 C	Desktop	58 V	5 V	PoE Injector/Splitter Splitter	130 W	1	2.1 in	24.13 mm	24.1 mm	71.1 mm	53.3 mm	2.8 in	10 Mbps 100 Mbps 1000 Mbps

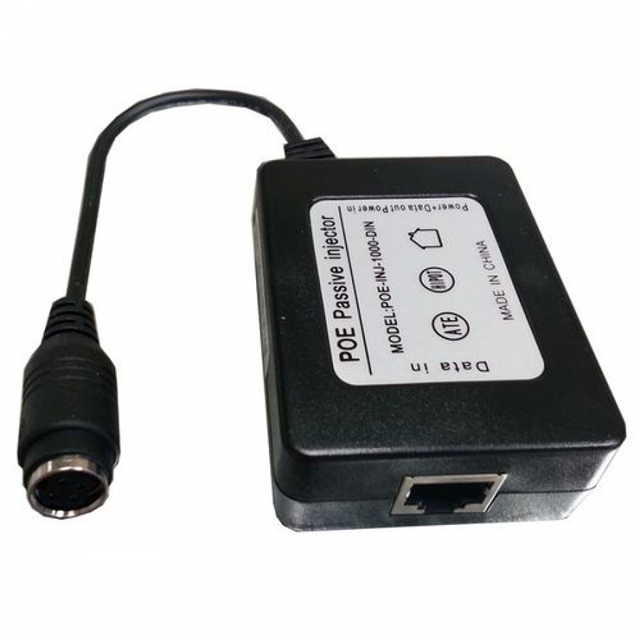

Tycon Systems Inc. POE-INJ-1000-DIN		Ethernet RJ45					Desktop			PoE Injector/Splitter Splitter		1
Tycon Systems Inc. POE-INJ-1000-S		Ethernet RJ45		3 A	85 °C	-40 C	Desktop	58 V	5 V	Passive Injector PoE Injector		1	24.13 mm	24.13 mm	24.1 mm	48.3 mm	24.1 mm	1.9 "	10 Mbps 100 Mbps 1000 Mbps

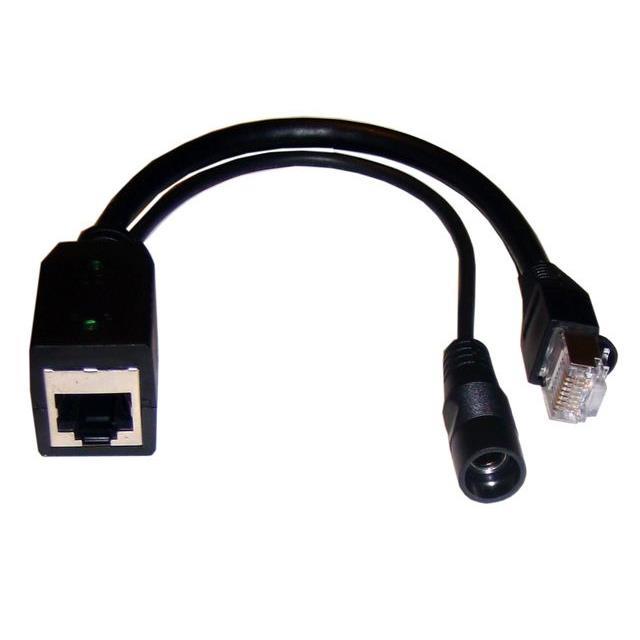

Tycon Systems Inc. POE-INJ-LED-S		Cat5 Ethernet			80 °C	-40 C	Desktop			Passive Injector PoE Injector		1								60 VDC	10 Mbps	100 Mbps	12 V 24 V
