W117G Series

Catalog

PRESSURE SWITCH 4-100 PSIG

Part	Port Style	Pressure Type	Port Size	Port Size	Port Size	Termination Style	Operating Pressure [Max]	Operating Pressure [Min]	Accuracy	Accuracy	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Output Type	Maximum Pressure	Maximum Pressure	Operating Pressure [Min]	Operating Pressure [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]

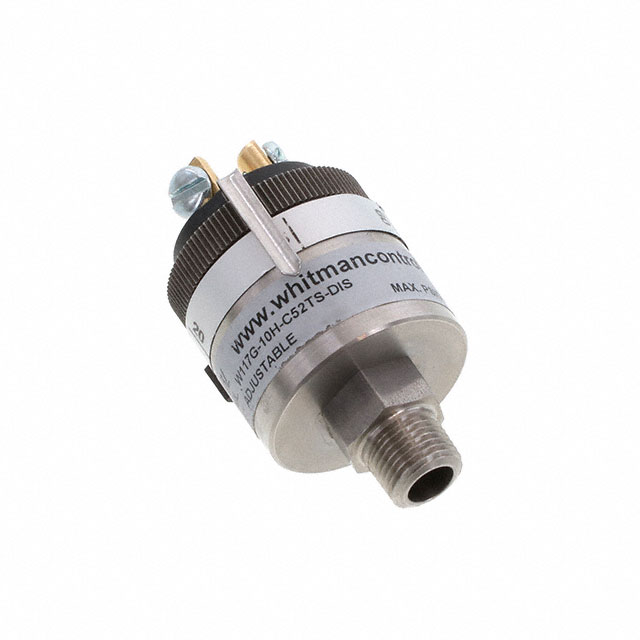

Whitman Controls, LLC W117G-10H-C52TS-DIS	Threaded	Switch	0.125 in	Male NPT	3.18 mm	Screw Terminal	100 PSI 689.48 kPa	4.5 PSI 31.03 kPa	2 PSI	13.79 kPa	107 °C	-54 °C	Cylinder Threaded	SPDT	689.48 kPa	100 PSI

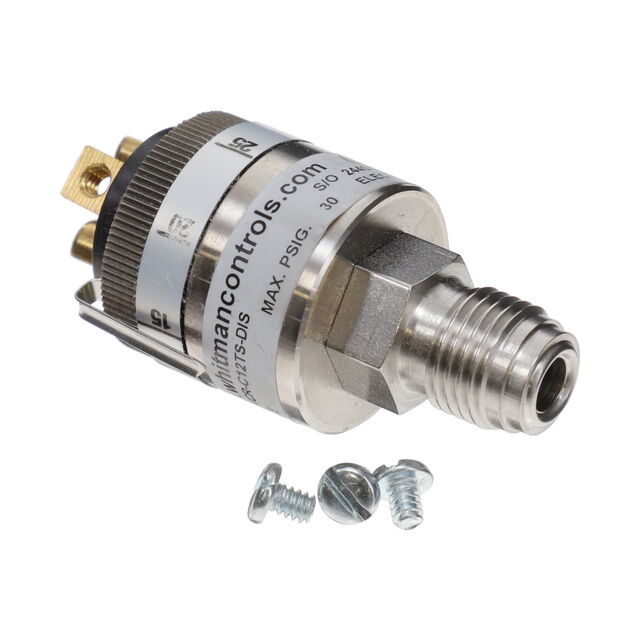

Whitman Controls, LLC W117G-3H-VCR-C12TS-DIS	Threaded	Switch		Male VCR®	0.25 in	Screw Terminal	30 PSI	1.6 PSI	0.6 PSI	4.14 kPa	107 °C	-54 °C	Cylinder Threaded	SPDT			11.03 kPa	206.84 kPa	-30 PSI	-206.84 kPa
Whitman Controls, LLC W117G-3H-VCR-C52L-DIS	Threaded	Switch		Male VCR®	0.25 in	Wire Leads	30 PSI	1.6 PSI	0.6 PSI	4.14 kPa	107 °C	-54 °C	Cylinder Threaded	SPDT			11.03 kPa	206.84 kPa	-30 PSI	-206.84 kPa

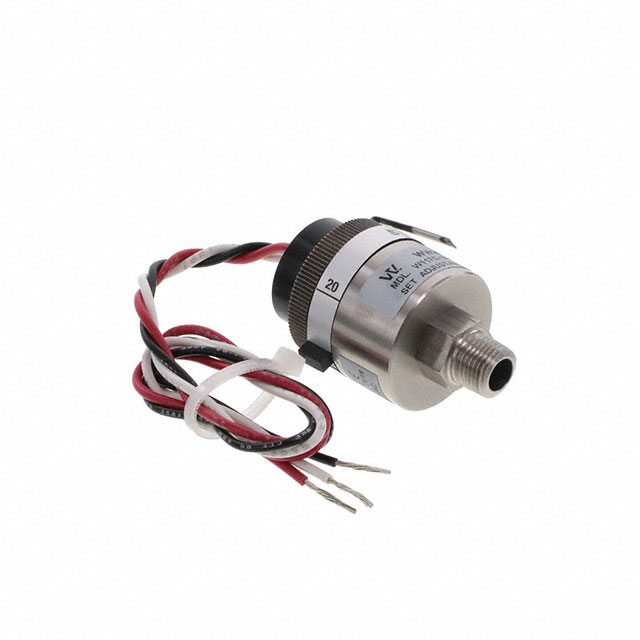

Whitman Controls, LLC W117G-10H-C52L-DIS	Threaded	Switch	0.125 in	Male NPT	3.18 mm	Wire Leads	100 PSI 689.48 kPa	4.5 PSI 31.03 kPa	2 PSI	13.79 kPa	107 °C	-54 °C	Cylinder Threaded	SPDT	689.48 kPa	100 PSI

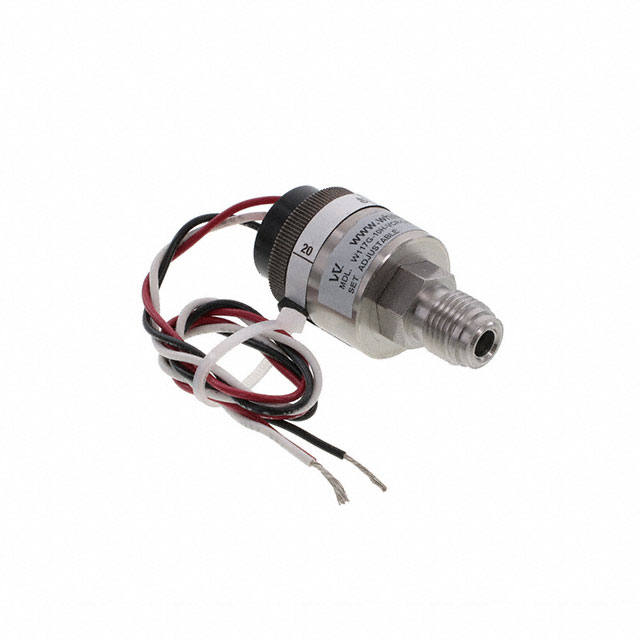

Whitman Controls, LLC W117G-10H-VCR-C52L-DIS	Threaded	Switch		Male VCR®	0.25 in	Wire Leads	100 PSI 689.48 kPa	4.5 PSI 31.03 kPa	2 PSI	13.79 kPa	107 °C	-54 °C	Cylinder Threaded	SPDT	689.48 kPa	100 PSI
Whitman Controls, LLC W117G-50H-VCR-C52TB-DIS	Threaded	Switch		Male VCR®	0.25 in	Quick Connect - 0.250" (6.3mm)	500 PSI	20 PSI	10 PSI	68.95 kPa	107 °C	-54 °C	Cylinder Threaded	SPDT	3447.38 kPa	500 PSI	137.9 kPa	3447.38 kPa
