GTW040 Series
Manufacturer: Delta Electronics
Beta
⌘K

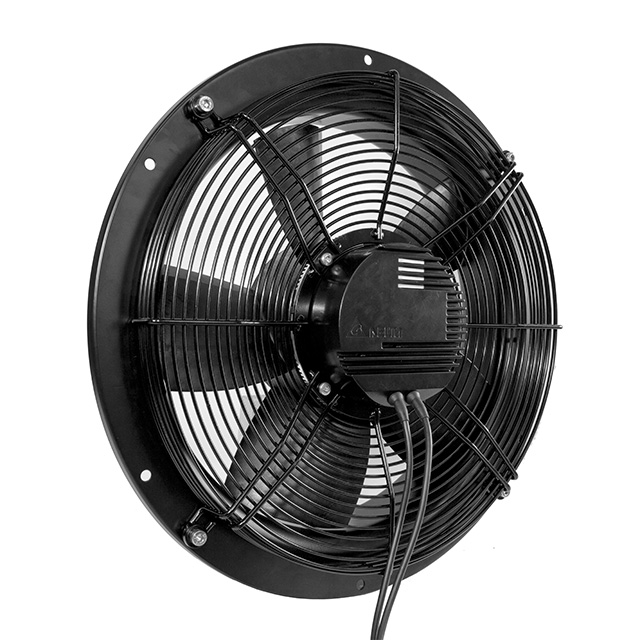

FAN AXIAL 404X202MM 230VAC
| Part | Lifetime @ Temp. | Material - Frame | Current Rating (Amps) | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Air Flow | Air Flow | Approval Agency | RPM | Bearing Type | Fan Type | Features | Ingress Protection | Voltage - Rated | Static Pressure | Static Pressure | Power (Watts) | Size / Dimension [diameter] | Noise | Weight [custom] | Weight [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 40 °C 60000 Hrs | Aluminum | 3 A | 277 VAC | 200 VAC | Polypropylene (PP) | 3147 CFM | 88.12 m³/min | cUL TUV | 1650 RPM | Ball | Tubeaxial | PWM Control Thermal Overload Protector (TOP) | IP54 - Dust Protected Water Resistant | 230 VAC | 176.9 Pa | 0.71 in H2O | 330 W | 528 mm | 72 dB(A) | 9.5 kg | 21 lbs | -25 °C | 60 °C | 154 mm |
