9650-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA F STR BHD
| Part | Dielectric Material | Center Contact Plating | Body Finish | Mating Cycles | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Number of Ports | Frequency - Max [Max] | Connector Type | Mounting Type | Fastening Type | Housing Color | Connector Style | Center Contact Material | Impedance | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

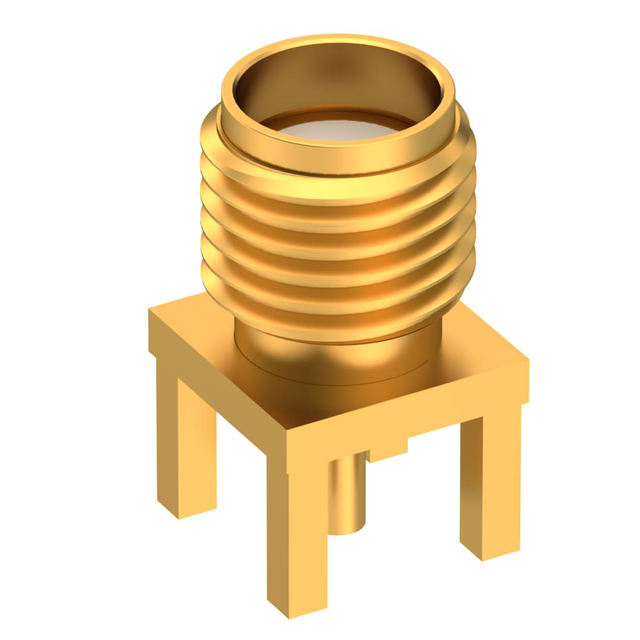

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 | Stainless Steel | -65 ░C | 165 °C | Solder | 1 | 18 GHz | Female Socket Jack | Through Hole | Threaded | Gold | SMA | Beryllium Copper | 50 Ohms | Solder |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 | Stainless Steel | -65 ░C | 165 °C | Solder | 1 | 18 GHz | Female Socket Jack | Through Hole | Threaded | Gold | SMA | Beryllium Copper | 50 Ohms | Solder |
Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 | Stainless Steel | -65 ░C | 165 °C | Solder | 1 | 18 GHz | Female Socket Jack | Through Hole | Threaded | Gold | SMA | Beryllium Copper | 50 Ohms | Solder |

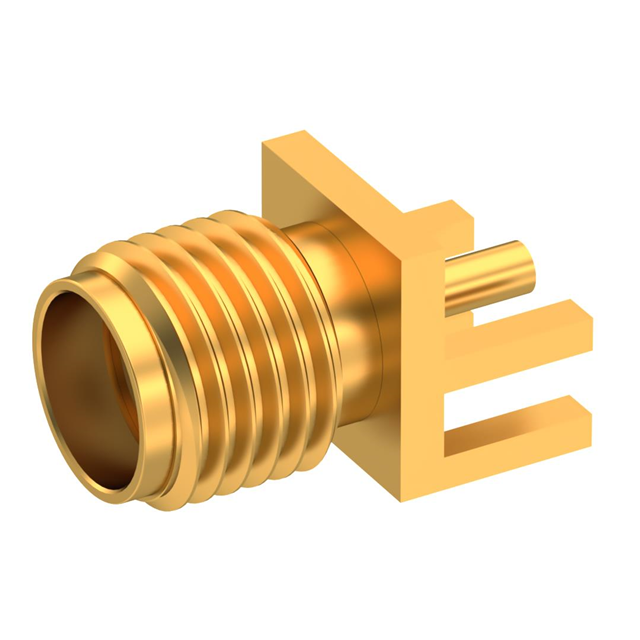

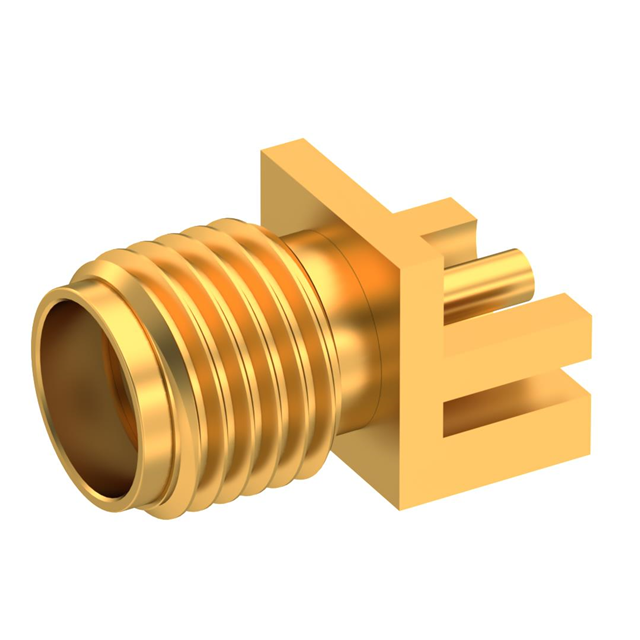

Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 | Stainless Steel | -65 ░C | 165 °C | Solder | 1 | 18 GHz | Female Socket Jack | Board Edge End Launch | Threaded | Gold | SMA | Beryllium Copper | 50 Ohms | Solder |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 | Stainless Steel | -65 ░C | 165 °C | Solder | 1 | 18 GHz | Female Socket Jack | Board Edge End Launch | Threaded | Gold | SMA | Beryllium Copper | 50 Ohms | Solder |

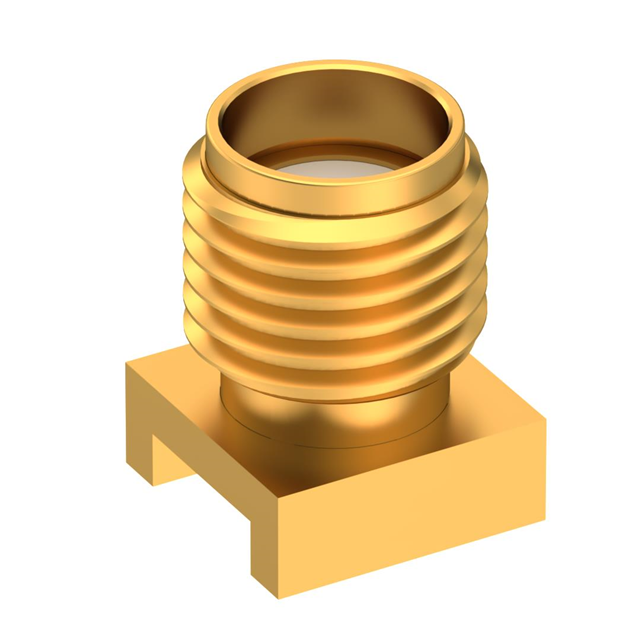

 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 | Stainless Steel | -65 ░C | 165 °C | Solder | 1 | 18 GHz | Female Socket Jack | Surface Mount | Threaded | Gold | SMA | Beryllium Copper | 50 Ohms | Solder |
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Gold | Gold | 500 | Stainless Steel | -65 ░C | 165 °C | Solder | 1 | 18 GHz | Female Socket Jack | Board Edge End Launch | Threaded | Gold | SMA | Beryllium Copper | 50 Ohms | Solder |
