30 Series

Catalog

FIXED IND 80NH 37A 0.35 MOHM SMD

Part	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance Frequency - Test	Current - Saturation (Isat)	Inductance	DC Resistance (DCR) [Max]	Current Rating (Amps)	Package / Case	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance
Murata Electronics 30800AC	Shielded	4.96 mm	0.195 in	1 MHz	47 A	80 nH	0.35 mOhm	37 A	2-SMD	Wirewound	0.276 "	0.276 in	7 mm	7 mm	Surface Mount	130 °C	-40 C	20 %

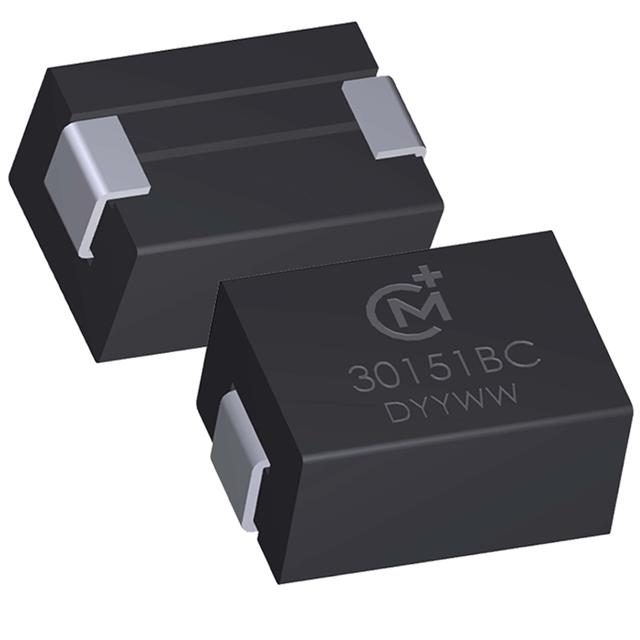

Murata Electronics 30221BC	Shielded	4.96 mm	0.195 in	1 MHz	29 A		0.42 mOhm	29 A	2-SMD	Wirewound	0.402 in	0.276 in	7 mm	10.2 mm	Surface Mount	130 °C	-40 C	20 %
Murata Electronics 30151BC	Shielded	4.96 mm	0.195 in	1 MHz	38 A	154 nH	0.42 mOhm	37 A	2-SMD	Wirewound	0.402 in	0.276 in	7 mm	10.2 mm	Surface Mount	130 °C	-40 C	20 %
Murata Electronics 30850BC	Shielded	4.96 mm	0.195 in	1 MHz	71 A		0.42 mOhm	37 A	2-SMD	Wirewound	0.402 in	0.276 in	7 mm	10.2 mm	Surface Mount	130 °C	-40 C	20 %
Murata Electronics 30101BC	Shielded	4.96 mm	0.195 in	1 MHz	58 A	100 nH	0.42 mOhm	37 A	2-SMD	Wirewound	0.402 in	0.276 in	7 mm	10.2 mm	Surface Mount	130 °C	-40 C	20 %
Murata Electronics 30121BC	Shielded	4.96 mm	0.195 in	1 MHz	50 A	114 nH	0.42 mOhm	37 A	2-SMD	Wirewound	0.402 in	0.276 in	7 mm	10.2 mm	Surface Mount	130 °C	-40 C	20 %
Murata Electronics 30201AC	Shielded	4.96 mm	0.195 in	1 MHz	22 A	191 nH	0.35 mOhm	22 A	2-SMD	Wirewound	0.276 "	0.276 in	7 mm	7 mm	Surface Mount	130 °C	-40 C	20 %
Murata Electronics 30151AC	Shielded	4.96 mm	0.195 in	1 MHz	29 A	145 nH	0.35 mOhm	29 A	2-SMD	Wirewound	0.276 "	0.276 in	7 mm	7 mm	Surface Mount	130 °C	-40 C	20 %
