SBSGP Series

Catalog

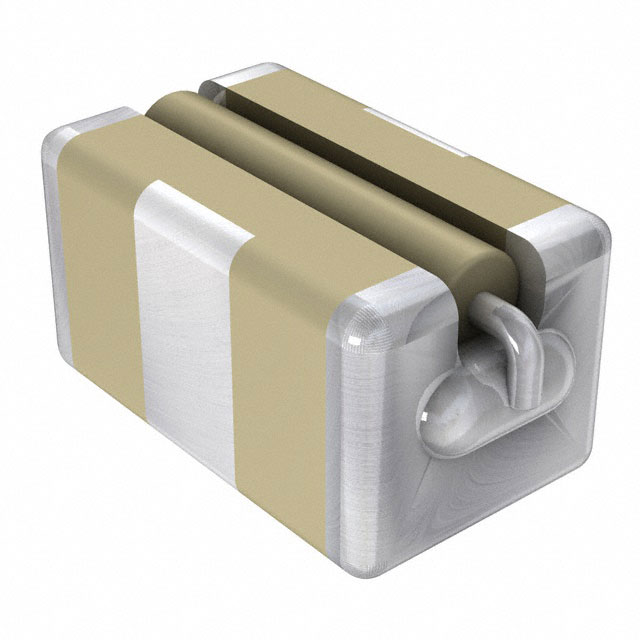

FILTER LC(PI) 0.047UF SMD

Part	Type	Package / Case	Package / Case	Voltage - Rated	Values	Height [z]	Height [z]	Technology	Mounting Type	Number of Channels [custom]	Attenuation Value	Applications	Current	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Filter Order	Operating Temperature [Min]	Operating Temperature [Max]	Height	Height	Insertion Loss	Tolerance	Height (Max) [z]	Height (Max) [z]	Temperature Coefficient	Capacitance
Knowles Syfer SBSGP5000473MXT	Low Pass	3 mm Width	1812 (4532 Metric)	500 V	0.047 µF	2.64 mm	0.104 in	LC	Surface Mount	1	39 dB	General Purpose	5 A	0.126 in	0.179 in	4.55 mm	3.2 mm	3rd
Knowles Syfer SBSGP5000473MXR	Low Pass	3 mm Width	1812 (4532 Metric)	500 V	0.047 µF			LC	Surface Mount	1	39 dB	General Purpose	5 A	0.126 in	0.179 in	4.55 mm	3.2 mm	3rd	-55 C	125 °C	2.65 mm	0.104 in
Knowles Syfer SBSGP5000102MXT	Low Pass	3 mm Width	1812 (4532 Metric)	500 V	1000 pF			LC	Surface Mount	1	39 dB	General Purpose	5 A	0.126 in	0.179 in	4.55 mm	3.2 mm	3rd	-55 C	125 °C	2.65 mm	0.104 in
Knowles Syfer SBSGP1000154MXR	Low Pass	3 mm Width	1812 (4532 Metric)	100 V	0.15 µF			LC	Surface Mount	1	39 dB	General Purpose	5 A	0.126 in	0.179 in	4.55 mm	3.2 mm	3rd	-55 C	125 °C	2.65 mm	0.104 in
Knowles Syfer SBSGP5000103MXT	Low Pass	3 mm Width	1812 (4532 Metric)	500 V	10000 pF	2.64 mm	0.104 in	LC	Surface Mount	1	39 dB	General Purpose	5 A	0.126 in	0.179 in	4.55 mm	3.2 mm	3rd
Knowles Syfer SBSGP5000153MXB		3 mm Width	1812 (4532 Metric)	500 V					Surface Mount				5 A	0.126 in	0.179 in	4.55 mm	3.2 mm		-55 C	125 °C			39 dB	20 %	2.65 mm	0.104 in	X7R	15000 pF
Knowles Syfer SBSGP5000103MXR	Low Pass	3 mm Width	1812 (4532 Metric)	500 V	10000 pF			LC	Surface Mount	1	39 dB	General Purpose	5 A	0.126 in	0.179 in	4.55 mm	3.2 mm	3rd	-55 C	125 °C	2.65 mm	0.104 in
Knowles Syfer SBSGP1000154MXB		3 mm Width	1812 (4532 Metric)	100 V					Surface Mount				5 A	0.126 in	0.179 in	4.55 mm	3.2 mm		-55 C	125 °C			39 dB	20 %	2.65 mm	0.104 in	X7R	0.15 ÁF
Knowles Syfer SBSGP5000223MXB		3 mm Width	1812 (4532 Metric)	500 V					Surface Mount				5 A	0.126 in	0.179 in	4.55 mm	3.2 mm		-55 C	125 °C			39 dB	20 %	2.65 mm	0.104 in	X7R	0.022 µF
Knowles Syfer SBSGP5000102MXR	Low Pass	3 mm Width	1812 (4532 Metric)	500 V	1000 pF			LC	Surface Mount	1	39 dB	General Purpose	5 A	0.126 in	0.179 in	4.55 mm	3.2 mm	3rd	-55 C	125 °C	2.65 mm	0.104 in
