VLMS20 Series

Catalog

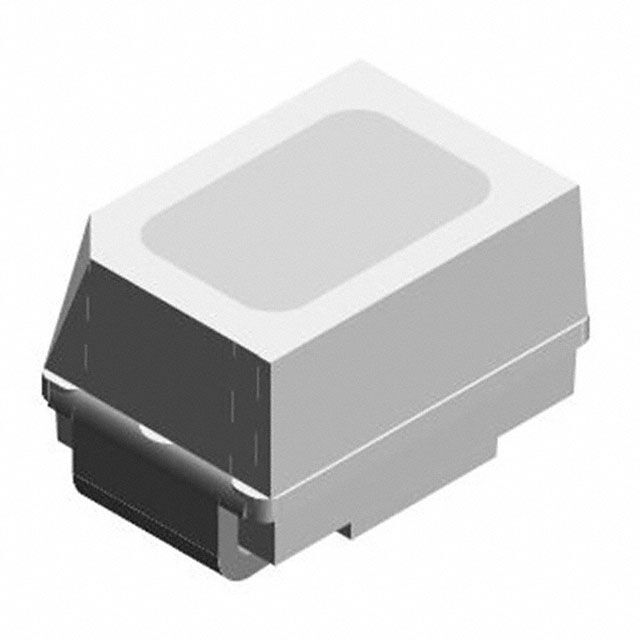

LED RED CLEAR SMD MINILED SMD

Part	Mounting Type	Current - Test	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Millicandela Rating	Lens Style	Lens Transparency	Configuration	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Peak	Supplier Device Package	Viewing Angle	Package / Case	Color	Lens Size [x]	Lens Size [y]	Wavelength - Dominant
Vishay Semiconductor Opto Division VLMS20H2K1-GS08	Surface Mount	2 mA	1.4 mm	1.8 V	6 mcd	Rectangle with Flat Top	Clear	Standard	2.2 mm	1.4 mm	643 nm	SMD MiniLED	120 °	2-SMD J-Lead	Red	1.5 mm	0.9 mm	630 nm
Vishay Semiconductor Opto Division VLMS20H2L1-GS08	Surface Mount	2 mA	1.4 mm	1.8 V	9 mcd	Rectangle with Flat Top	Clear	Standard	2.2 mm	1.4 mm	643 nm	SMD MiniLED	120 °	2-SMD J-Lead	Red	1.5 mm	0.9 mm	630 nm
Vishay Semiconductor Opto Division VLMS20J2K2-GS08	Surface Mount	2 mA	1.4 mm	1.8 V	8.4 mcd	Rectangle with Flat Top	Clear	Standard	2.2 mm	1.4 mm	643 nm	SMD MiniLED	120 °	2-SMD J-Lead	Red	1.5 mm	0.9 mm	630 nm
Vishay Semiconductor Opto Division VLMS20J2L1-GS08	Surface Mount	2 mA	1.4 mm	1.8 V	10 mcd	Rectangle with Flat Top	Clear	Standard	2.2 mm	1.4 mm	643 nm	SMD MiniLED	120 °	2-SMD J-Lead	Red	1.5 mm	0.9 mm	630 nm
