LCYCLBP Series

Catalog

LED OSLON SIGNAL YELLOW SMD

Part	Thermal Resistance of Package	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Color	Temperature - Test	Current - Test	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
ams-OSRAM USA INC. LCY CLBP-KXKZ-5F5G-1-350-R18-Z	9.6 °C/W	1 A	2.95 V	125 °	Yellow	25 °C	350 mA	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	SMD	3030 Metric	1212	0.07 in	1.77 mm	89 lm/W	92 lm

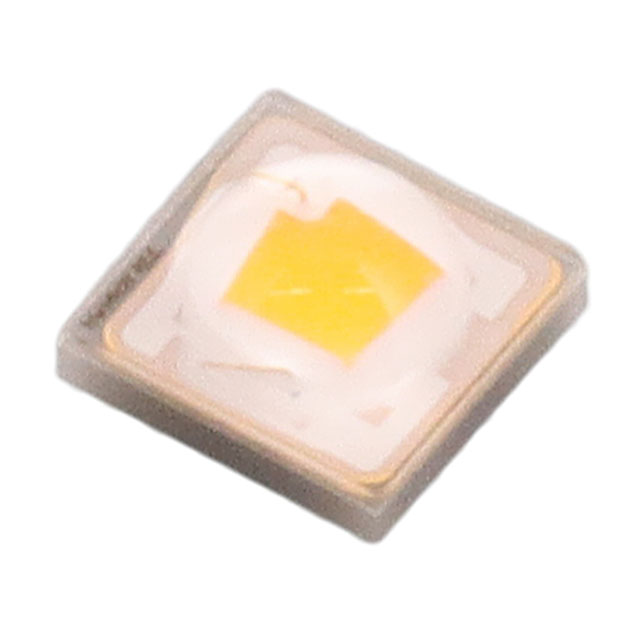

ams-OSRAM USA INC. LCY CLBP-KZLY-5F5G-8E8G-350-S		1 A	2.95 V	125 °	Yellow	25 °C	350 mA	Surface Mount	3 mm	0.118 in	3 mm	0.118 "	SMD	3030 Metric	1212			120 lm/W	124 lm	1.77 mm	0.069 "
