40.31.8 Series

Catalog

PCB/PLUG-IN RELAY, SPDT 10A, 120

Part	Coil Resistance	Seal Rating	Operating Temperature [Max]	Operating Temperature [Min]	Relay Type	Must Operate Voltage	Must Release Voltage	Load - Max Switching	Approval Agency	Contact Form	Switching Voltage [Max]	Coil Type	Coil Current	Coil Voltage	Contact Material	Contact Rating (Current)	Termination Style	Operate Time	Mounting Type	Release Time	Load - Max Switching [Max]
Finder Relays, Inc. 40.31.8.120.5000	9 kOhms	Sealed - Flux Protection	85 °C	-40 C	General Purpose	96 VAC	24 VAC	4800 VA	CCC CSA cURus EAC ENEC RINA VDE	SPDT (1 Form C)	400 VAC	Non Latching	8.4 mA	120 VAC	Silver Nickel (AgNi)	12 A	Plug In	7 ms	Socketable	3 ms
Finder Relays, Inc. 40.31.8.110.0300	6.9 kOhms	Sealed - Flux Protection	85 °C	-40 C	General Purpose	88 VAC/DC	22 VAC		CCC CSA cURus EAC ENEC RINA VDE	SPST-NO (1 Form A)	400 VAC	Non Latching	9.4 mA	110 VAC/DC	Silver Nickel (AgNi)	10 A	Plug In	7 ms	Socketable	3 ms	4000 VA

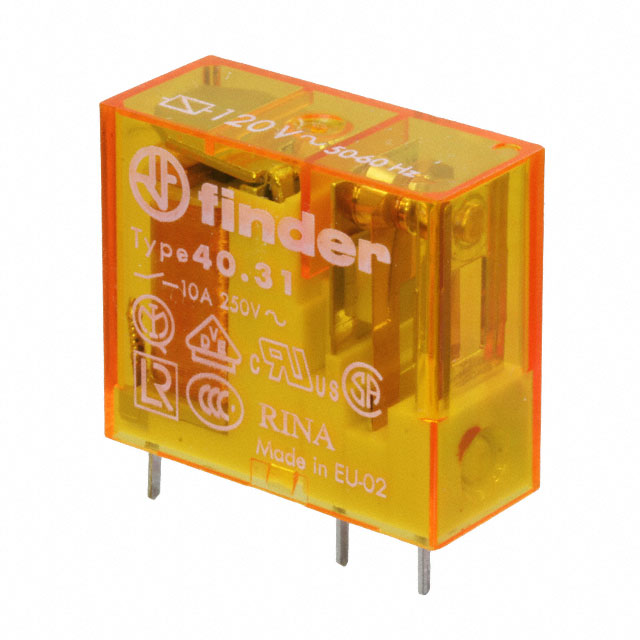

Finder Relays, Inc. 40.31.8.120.0000	9 kOhms	Sealed - Flux Protection	85 °C	-40 C	General Purpose	96 VAC	24 VAC		CCC CSA cURus EAC ENEC RINA VDE	SPDT (1 Form C)	400 VAC	Non Latching	8.4 mA	120 VAC	Silver Nickel (AgNi)	10 A	Plug In	7 ms	Socketable	3 ms	4000 VA
Finder Relays, Inc. 40.31.8.230.0000	28 kOhms	Sealed - Flux Protection	85 °C	-40 C	General Purpose	184 VAC	46 VAC		CCC CSA cURus EAC ENEC RINA VDE	SPDT (1 Form C)	400 VAC	Non Latching	5 mA	230 VAC	Silver Nickel (AgNi)	10 A	Plug In	7 ms	Socketable	3 ms	4000 VA
Finder Relays, Inc. 40.31.8.120.0001	9 kOhms		85 °C	-40 C	General Purpose	96 VAC	24 VAC		CCC CSA cURus EAC ENEC RINA VDE	SPDT (1 Form C)	400 VAC	Non Latching	8.4 mA	120 VAC	Silver Nickel (AgNi)	10 A	Plug In	7 ms	Socketable	3 ms	4000 VA
Finder Relays, Inc. 40.31.8.120.0301	9 kOhms		85 °C	-40 C	General Purpose	96 VAC	24 VAC		CCC CSA cURus EAC ENEC RINA VDE	SPST-NO (1 Form A)	400 VAC	Non Latching	8.4 mA	120 VAC	Silver Nickel (AgNi)	10 A	Plug In	7 ms	Socketable	3 ms	4000 VA

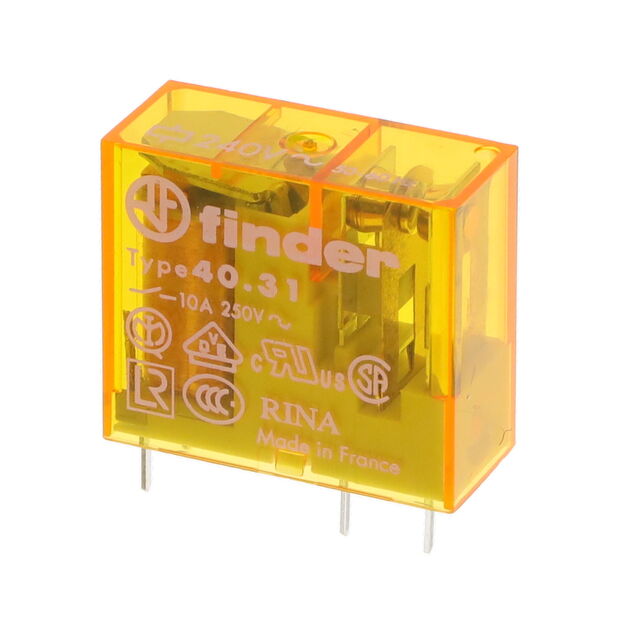

Finder Relays, Inc. 40.31.8.240.0000	31.5 kOhms	Sealed - Flux Protection	85 °C	-40 C	General Purpose	192 VAC	48 VAC		CCC CSA cURus EAC ENEC RINA VDE	SPDT (1 Form C)	400 VAC	Non Latching	4.1 mA	240 VAC/DC	Silver Nickel (AgNi)	10 A	Plug In	7 ms	Socketable	3 ms	4000 VA
Finder Relays, Inc. 40.31.8.110.0000	6.9 kOhms	Sealed - Flux Protection	85 °C	-40 C	General Purpose	88 VAC/DC	22 VAC		CCC CSA cURus EAC ENEC RINA VDE	SPDT (1 Form C)	400 VAC	Non Latching	9.4 mA	110 VAC/DC	Silver Nickel (AgNi)	10 A	Plug In	7 ms	Socketable	3 ms	4000 VA
Finder Relays, Inc. 40.31.8.230.0300	28 kOhms	Sealed - Flux Protection	85 °C	-40 C	General Purpose	184 VAC	46 VAC		CCC CSA cURus EAC ENEC RINA VDE	SPST-NO (1 Form A)	400 VAC	Non Latching	5 mA	230 VAC	Silver Nickel (AgNi)	10 A	Plug In	7 ms	Socketable	3 ms	4000 VA
Finder Relays, Inc. 40.31.8.230.2000	28 kOhms	Sealed - Flux Protection	85 °C	-40 C	General Purpose	184 VAC	46 VAC		CCC CSA cURus EAC ENEC RINA VDE	SPDT (1 Form C)	400 VAC	Non Latching	5 mA	230 VAC	Silver Nickel (AgNi)	10 A	Plug In	7 ms	Socketable	3 ms	4000 VA
