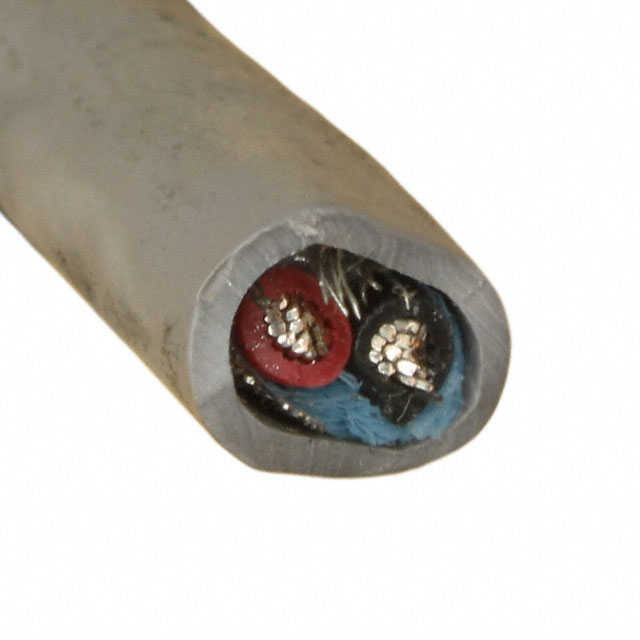

5172C Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 2COND 16AWG 1000=1000'
| Part | Shield Coverage | Shield Material | Usage | Jacket (Insulation) Material | Shield Type | Number of Conductors | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [diameter] | Voltage | Wire Gauge | Ratings | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Conductor Insulation | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Communication Control | Poly-Vinyl Chloride (PVC) | Braid Foil | 2 | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 19 | 0.0117 in | 300 VDC | 16 AWG | ISO 10993 UL Style 2464 | 0.278 in | 7.06 mm | Poly-Vinyl Chloride (PVC) | Slate | -35 °C | 105 ░C | Copper Tinned | Multi-Conductor | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Communication Control | Poly-Vinyl Chloride (PVC) | Braid Foil | 2 | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 19 | 0.0117 in | 300 VDC | 16 AWG | ISO 10993 UL Style 2464 | 0.278 in | 7.06 mm | Poly-Vinyl Chloride (PVC) | Slate | -35 °C | 105 ░C | Copper Tinned | Multi-Conductor | 304.8 m | 1000 ft |
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Communication Control | Poly-Vinyl Chloride (PVC) | Braid Foil | 2 | Biological Compatibility Drain Wire Rip Cord | 0.813 mm | 0.032 in | 19 | 0.0117 in | 300 VDC | 16 AWG | ISO 10993 UL Style 2464 | 0.278 in | 7.06 mm | Poly-Vinyl Chloride (PVC) | Slate | -35 °C | 105 ░C | Copper Tinned | Multi-Conductor | 152.4 m | 500 ft |
