9324-0 Series

Catalog

CONN RECEPT PIN .045-.065" .145"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Tail Diameter [diameter]	Tail Diameter [diameter]	Contact Finish	Accepts Pin Diameter [Min] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Max] [diameter]	Accepts Pin Diameter [Min] [diameter]	Length - Overall [x]	Length - Overall [x]	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]
Mill-Max Manufacturing Corp. 9324-0-15-01-23-14-04-0	-55 C	125 °C	0.2 in	5.08 mm	0.25 Ám	10 Áin	Standard Tail	1.04 mm	0.041 in	Gold	0.045 "	1.65 mm	0.065 "	1.14 mm	10.03 mm	0.395 "	2.24 mm	0.088 "	2.69 mm	0.106 in	Press-Fit	Beryllium Copper	0.119 in	3.02 mm

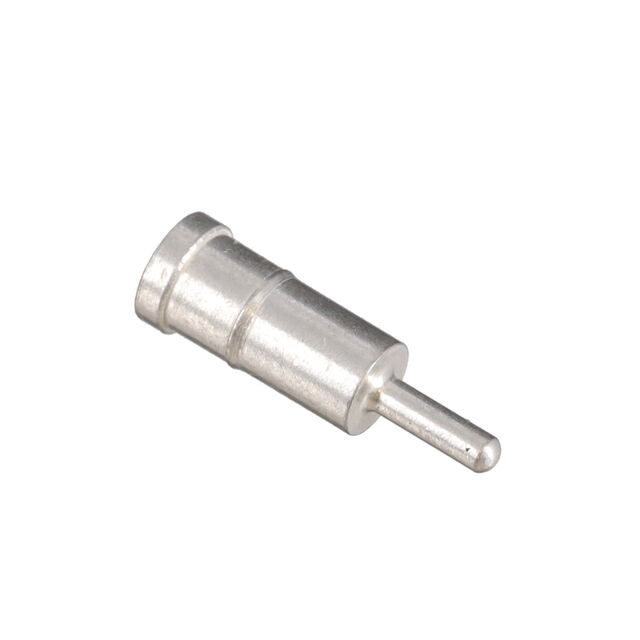

Mill-Max Manufacturing Corp. 9324-0-15-80-23-27-04-0	-55 C	125 °C	0.2 in	5.08 mm	0.76 Ám	30 Áin	Standard Tail	1.04 mm	0.041 in	Gold	0.045 "	1.65 mm	0.065 "	1.14 mm	10.03 mm	0.395 "	2.24 mm	0.088 "	2.69 mm	0.106 in	Press-Fit	Beryllium Copper	0.119 in	3.02 mm

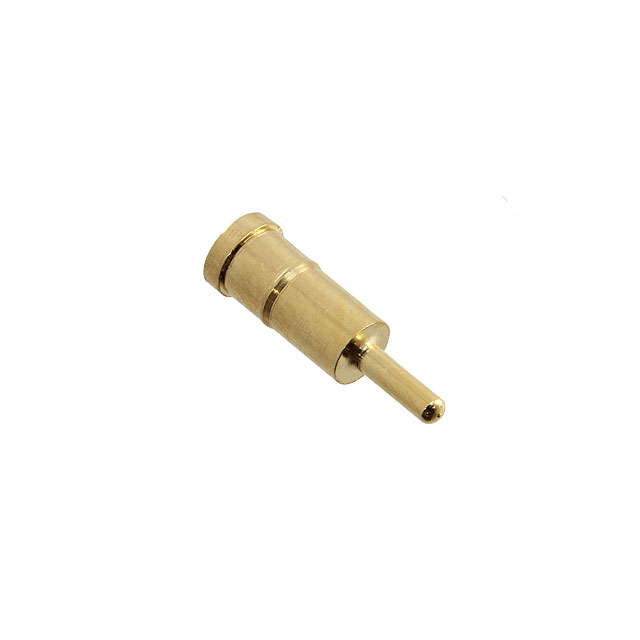

Mill-Max Manufacturing Corp. 9324-0-15-15-23-27-04-0	-55 C	125 °C	0.2 in	5.08 mm	0.76 Ám	30 Áin	Standard Tail	1.04 mm	0.041 in	Gold	0.045 "	1.65 mm	0.065 "	1.14 mm	10.03 mm	0.395 "	2.24 mm	0.088 "	2.69 mm	0.106 in	Press-Fit	Beryllium Copper	0.119 in	3.02 mm
