6573009 Series
Manufacturer: DIALIGHT
Beta
⌘K

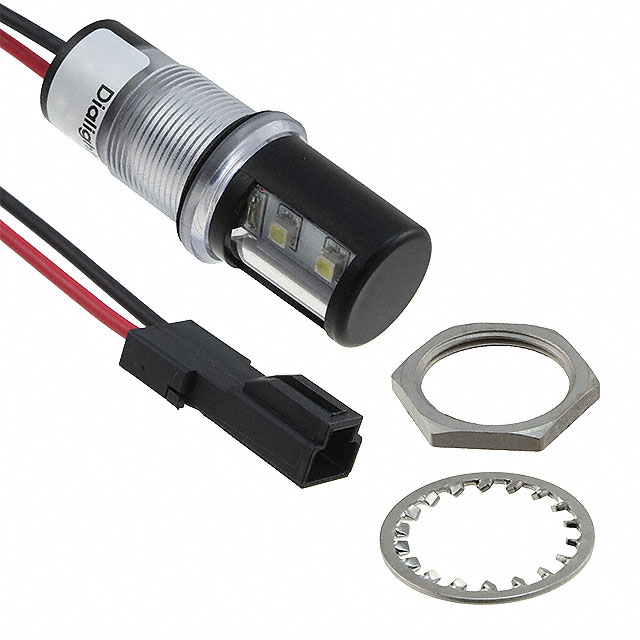

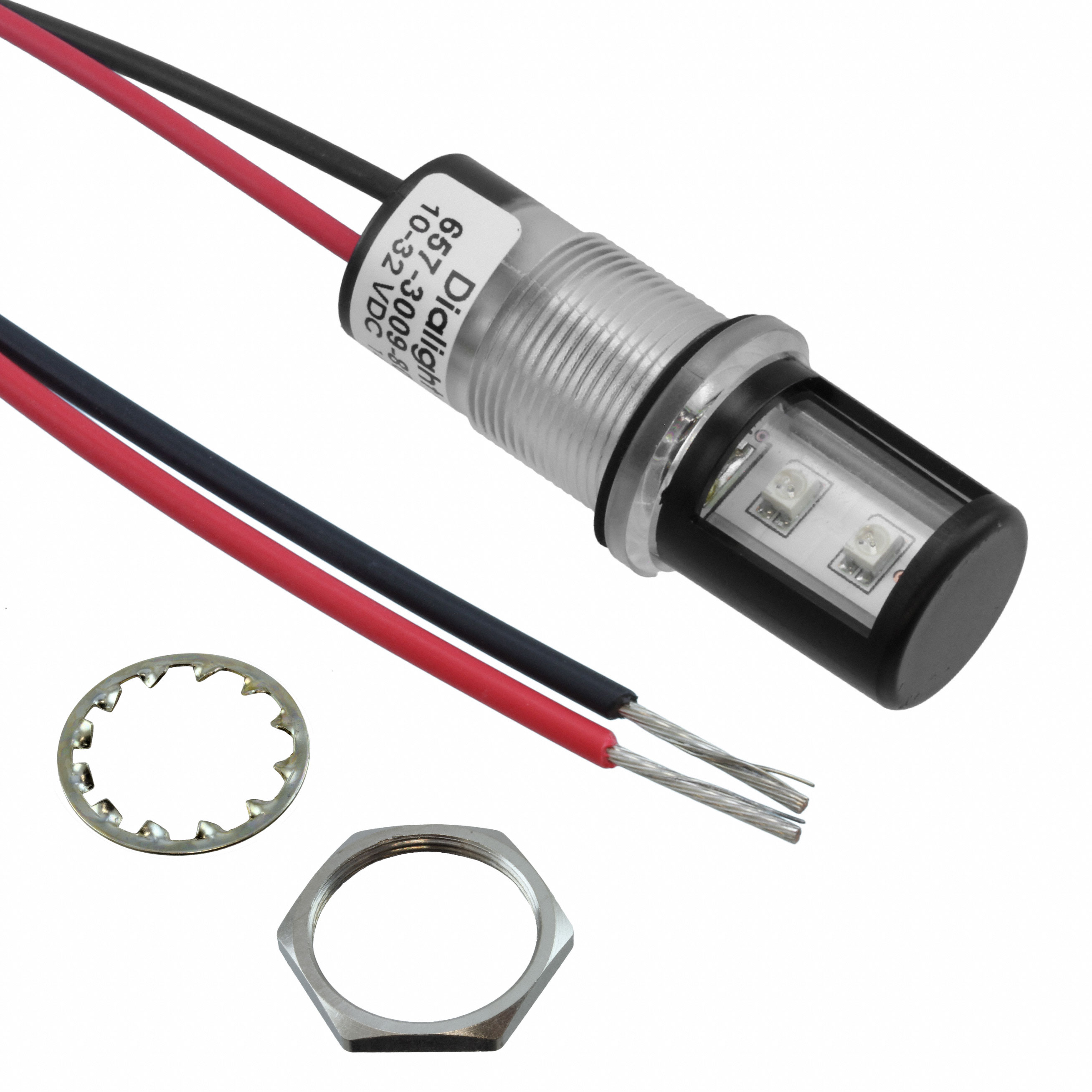

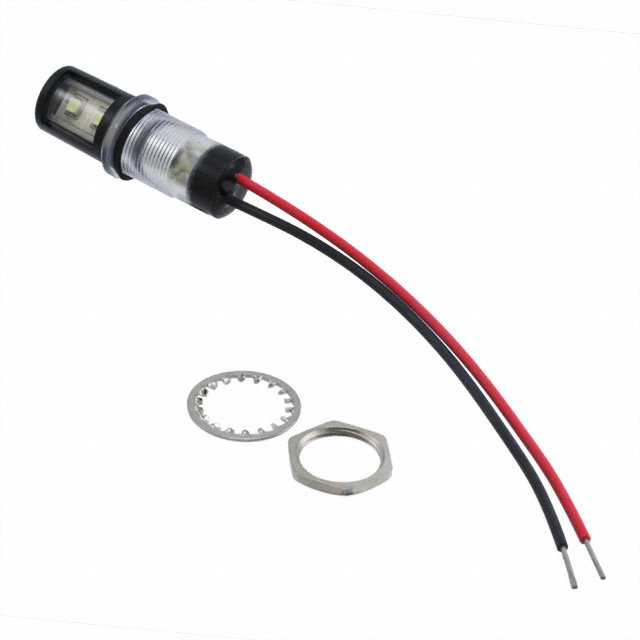

LED RT ANGLE INDICATOR ASSEMBLY
| Part | Termination Style | Termination Style | Termination Style | Ingress Protection | Ratings | Type | Viewing Angle | Panel Cutout Shape | Panel Cutout Dimensions | Panel Cutout Dimensions | Lamp Color | Millicandela Rating | Voltage [Max] | Voltage [Min] | Lens Transparency | Lens Size [diameter] | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | |||||||||||||||||
DIALIGHT | |||||||||||||||||
 DIALIGHT | 0.5 " | Wire Leads | 12.7 mm | IP67 NEMA 4X | DC | LED | 80 ° 110 ° | Round | 17.53 mm | 0.69 in | White | 2000 mcd | 32 V | 12 V | Clear | ||
 DIALIGHT | DC | LED | Round | 17.53 mm | 0.69 in | Blue | 8800 mcd | 32 V | 12 V | 17.8 mm | 24 mA | ||||||
DIALIGHT | DC | LED | Round | 17.53 mm | 0.69 in | Red | 1680 mcd | 32 V | 12 V | 17.8 mm | 24 mA |
