Basic / Snap Action Switches Snap Mid Size Snap-acting Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Basic / Snap Action Switches Snap Mid Size Snap-acting Switch

...

Part	Voltage Rating - AC	Overtravel	Overtravel	Switch Function	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]	Differential Travel	Differential Travel	Termination Style	Release Force	Mounting Type	Circuit	Current Rating (Amps)	Operating Force	Voltage Rating - DC	Actuator Type	Pretravel	Pretravel	Electrical Life
Littelfuse/Commercial Vehicle Products TFEEJ6ST154AC	277 V	1.7 mm	0.065 in	On-Mom	0.6 in	15.2 mm	85 °C	-40 °C	0.03 in	0.76 mm	Quick Connect - 0.250" (6.3mm)	80 gf	Chassis Mount	SPDT	15 A 500 mA	225 gf	125 VDC	Lever Straight	0.11 in	2.8 mm

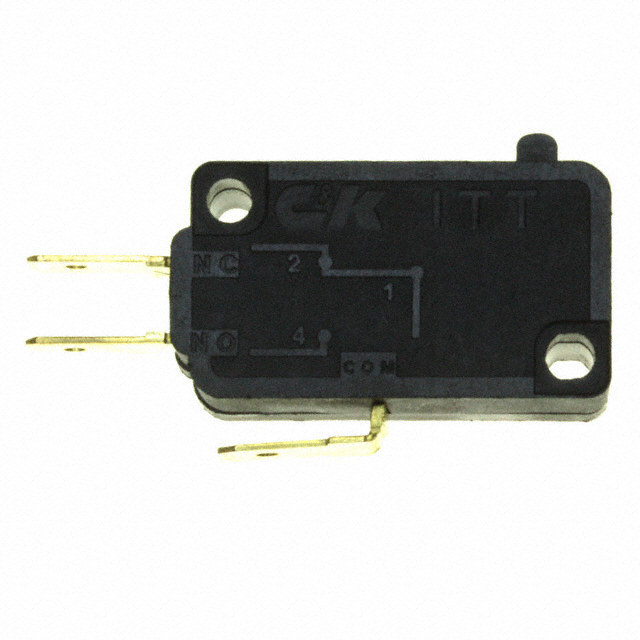

Littelfuse/Commercial Vehicle Products TFCDH8SP0040C	277 V	1.27 mm	0.05 in	On-Mom	0.579 in	14.7 mm	85 °C	-40 °C	0.01 in	0.25 mm	Quick Connect - 0.187" (4.7mm)	10 gf	Chassis Mount	SPDT	5 A			Round (Pin Plunger)	0.047 in	1.2 mm	300000 Cycles
Littelfuse/Commercial Vehicle Products TFCFF5VT2340C	125 V	3.05 mm	0.12 in	On-Mom	0.812 in	20.6 mm	85 °C	-40 °C	0.05 in	1.3 mm	Quick Connect - 0.187" (4.7mm)	2 gf	Chassis Mount	SPDT		16 gf	30 V	Lever Simulated Roller	0.25 in	6.35 mm	6000 Cycles
Littelfuse/Commercial Vehicle Products TFCJL3ST154AY	250 V	1.7 mm	0.065 in	Off-Mom	0.6 in	15.2 mm	85 °C	-40 °C	0.03 in	0.76 mm	Quick Connect - 0.250" (6.3mm)	8 gf	Chassis Mount	SPST-NO	20 A	80 gf		Lever Straight	0.11 in	2.8 mm

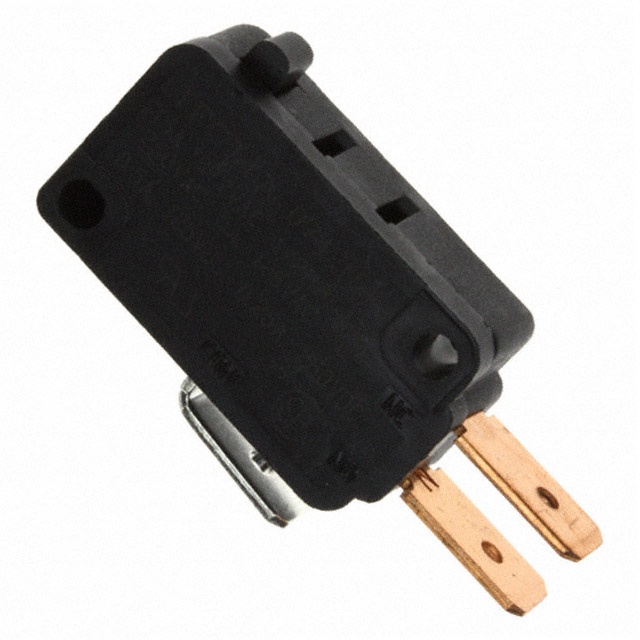

Littelfuse/Commercial Vehicle Products TFCJJ6SP004AC	277 V	1.27 mm	0.05 in	On-Mom	0.579 in	14.7 mm	85 °C	-40 °C	0.01 in	0.25 mm	Quick Connect - 0.250" (6.3mm)	35 gf	Chassis Mount	SPDT	15 A 500 mA	150 gf	125 VDC	Round (Pin Plunger)	0.047 in	1.2 mm
Littelfuse/Commercial Vehicle Products TFCJJ6SA2540C	277 V	3.05 mm	0.12 in	On-Mom	0.812 in	20.6 mm	85 °C	-40 °C	0.05 in	1.3 mm	Quick Connect - 0.187" (4.7mm)	6 gf	Chassis Mount	SPDT	15 A 500 mA	48 gf	125 VDC	Lever Roller	0.25 in	6.35 mm
Littelfuse/Commercial Vehicle Products TFEEK6ST1440C	277 V	1.5 mm	0.06 "	On-Mom	0.73 in	18.5 mm	85 °C	-40 °C	0.03 in	0.76 mm	Quick Connect - 0.187" (4.7mm)	80 gf	Chassis Mount	SPDT	11 A 500 mA	225 gf	125 VDC	Lever Simulated Roller	0.1 in	2.5 mm

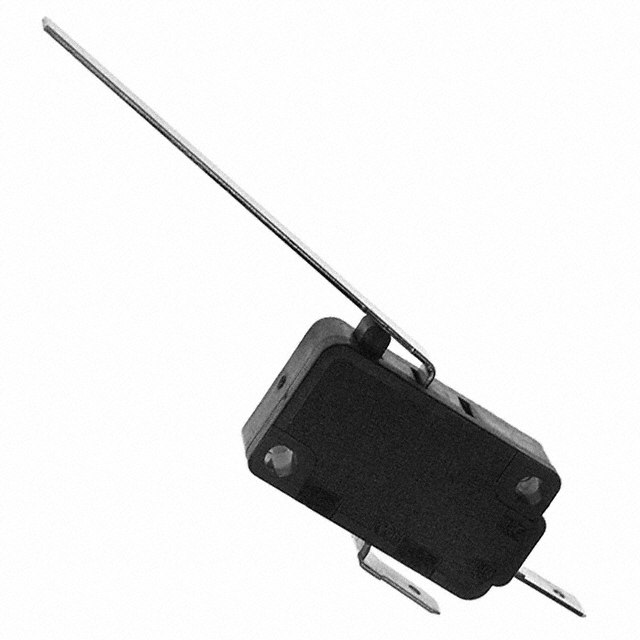

Littelfuse/Commercial Vehicle Products TFCGK6ST2640Y	277 V	6 mm	0.235 in	Off-Mom	0.6 in	15.2 mm	85 °C	-40 °C	0.1 in	2.54 mm	Quick Connect - 0.187" (4.7mm)	1.5 gf	Chassis Mount	SPST-NO	11 A 500 mA		125 VDC	Lever Straight	0.5 in	12.7 mm
Littelfuse/Commercial Vehicle Products TFCCH8SP004AC	277 V	1.27 mm	0.05 in	On-Mom	0.579 in	14.7 mm	85 °C	-40 °C	0.01 in	0.25 mm	Quick Connect - 0.250" (6.3mm)	6 gf	Chassis Mount	SPDT	5 A	15 gf		Round (Pin Plunger)	0.047 in	1.2 mm	300000 Cycles
Littelfuse/Commercial Vehicle Products TFECJ6SP004AW	277 V	1.27 mm	0.05 in	On-Mom	0.579 in	14.7 mm	85 °C	-40 °C	0.01 in	0.25 mm	Quick Connect - 0.250" (6.3mm)	56 gf	Chassis Mount	SPST-NC	15 A 500 mA	225 gf	125 VDC	Round (Pin Plunger)	0.047 in	1.2 mm

Catalog

Basic / Snap Action Switches Snap Mid Size Snap-acting Switch

Key Features

• Broad range of operating forces

• Ratings up to 21 A

• Wide variety of actuator styles

Description

The TF series mid size snap-acting switch from C&K features a broad range of operating forces, ratings up to 21A and a wide variety of actuator styles to fit the specific needs of any design. Often used in motor controls, thermostatics and portable tools, designers across the globe turn to C&K’s TF series for its performance and resilience.
