MC16MOB Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

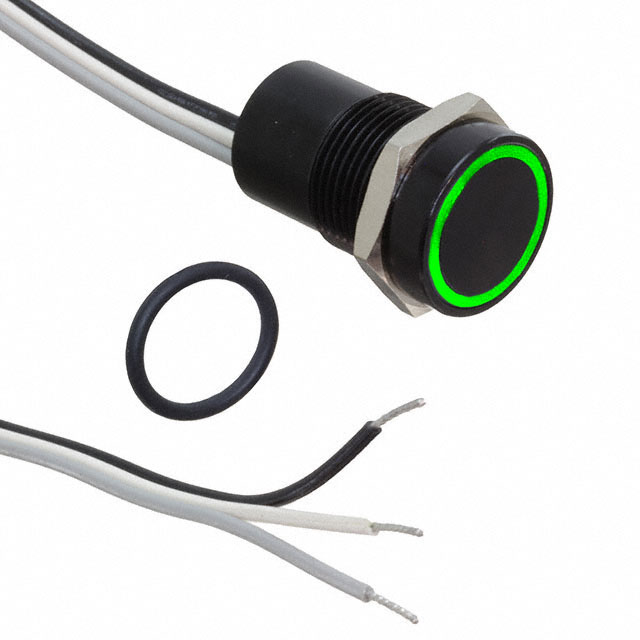

SWITCH CAPACITIVE DPST OFF-MOM
| Part | Electrical Life | Mechanical Life | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Switch Function | Color - Actuator/Cap | Actuator Type | Mounting Type | Illumination Voltage (Nominal) | Ingress Protection | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Current Rating (Amps) | Circuit | Type | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 50 000 000 | 50000000 Cycles | 16.2 mm | 24 V | Off-Mom | Black | Button Flush Round | Panel Mount Front | 12 VDC | IP68 IP69K | LED Red | 55 °C | -25 °C | Wire Leads | 500 mA | SPST-NO | Capacitive Illuminated | |
 BULGIN LIMITED | 50 000 000 | 50000000 Cycles | 16.2 mm | 12 V | Off-Mom | Black | Button Flush Round | Panel Mount Front | IP68 IP69K | Green/Red LED | 55 °C | -25 °C | Wire Leads | 500 mA | SPST-NO | Capacitive Illuminated | No Marking |
