ECG-C0 Series

Catalog

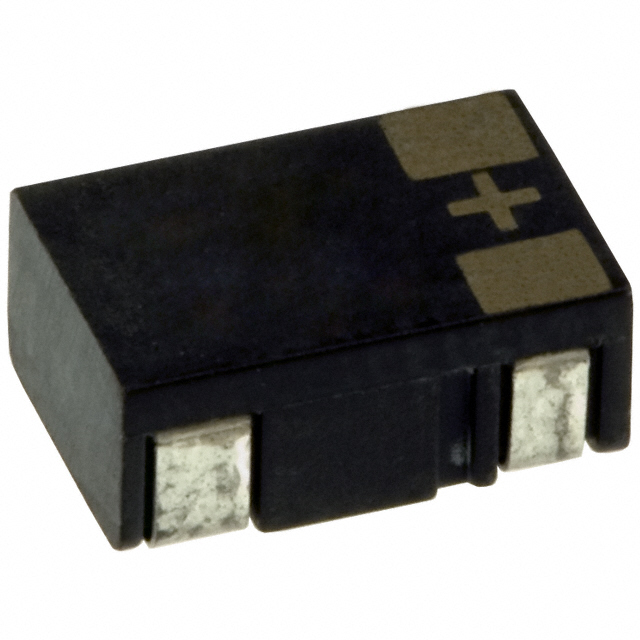

CAP ALUM POLY 10UF 20% 6.3V SMD

Part	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Lifetime @ Temp.	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Applications	Type	Tolerance	Mounting Type	Voltage - Rated	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Ripple Current @ High Frequency
Panasonic Industrial Automation Sales ECG-C0JB100R	10 µF	0.209 in	0.311 in	5.3 mm	7.9 mm	1000 Hrs	Nonstandard SMD	0.13 "	3.3 mm	General Purpose	Polymer	20 %	Surface Mount	6.3 V	7.9 mm	0.209 in	0.311 in	5.3 mm	-40 °C	105 ░C	130 mOhms	1 A
Panasonic Industrial Automation Sales ECG-C0JB220R	22 µF	0.209 in	0.311 in	5.3 mm	7.9 mm	1000 Hrs	Nonstandard SMD	0.13 "	3.3 mm	General Purpose	Polymer	20 %	Surface Mount	6.3 V	7.9 mm	0.209 in	0.311 in	5.3 mm	-40 °C	105 ░C
