2486-7511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

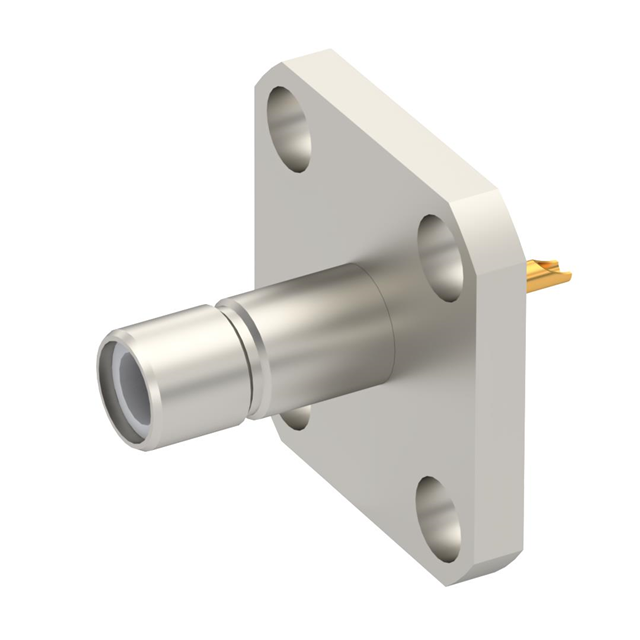

SMB / STRAIGHT JACK RECEPTACLE M
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Mating Cycles | Body Material | Insertion Loss | Center Contact Plating | Body Finish | Housing Color | Impedance | Mounting Type | Mounting Feature | Connector Style | Shield Termination | Fastening Type | Contact Termination | Center Contact Material | Connector Type | Frequency - Max [Max] | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 500 | Brass | 0.3 dB | Gold | Nickel | Silver | 50 Ohms | Panel Mount | Flange | SMB | Solder | Snap-On | Solder Cup | Brass | Jack Male Pin | 4 GHz | 1 |
