APFA2507 Series

Catalog

LED GREEN/RED/YL CLR 4SMD R/A

Part	Mounting Type	Lens Size [y]	Lens Size [x]	Viewing Angle [custom]	Viewing Angle [custom]	Viewing Angle [custom]	Wavelength - Dominant	Lens Color	Lens Transparency	Wavelength - Peak	Color	Size / Dimension [y]	Size / Dimension [x]	Configuration	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Style	Package / Case	Current - Test	Supplier Device Package	Height (Max) [z]	Voltage - Forward (Vf) (Typ)	Millicandela Rating [custom]	Current - Test	Viewing Angle	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]

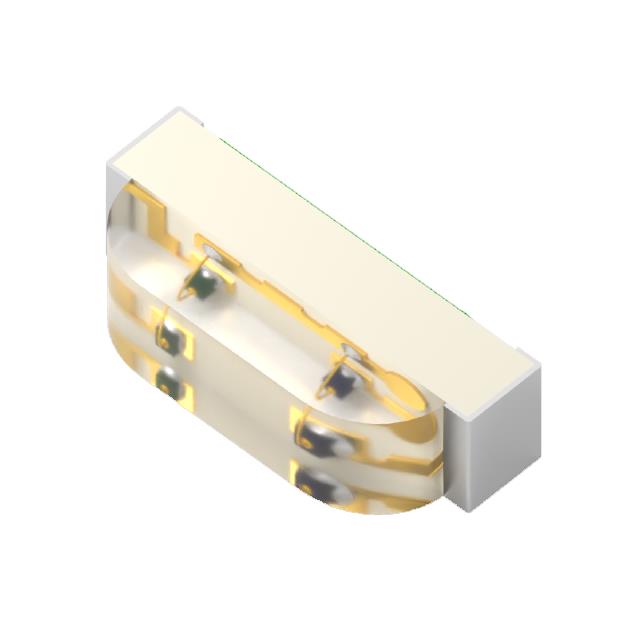

Kingbright APFA2507LSURKSYKZGKC	Right Angle Surface Mount	0.7 mm	2.1 mm	125 °	115 °	130 °	525 nm 590 nm 630 nm	Colorless	Clear	515 nm 590 nm 645 nm	Green Red Yellow	1 mm	2.5 mm	Common Anode	30 mcd	15 mcd	60 mcd	Rectangle with Domed Top	4-SMD No Lead	2 mA 2 mA 2 mA	4-SMD	0.85 mm	1.75 V 1.85 V 2.65 V
Kingbright APFA2507QBDSEEZGKC	Right Angle Surface Mount	0.7 mm	2.1 mm				465 nm 525 nm 621 nm	Colorless	Clear	460 nm 515 nm 630 nm	Blue Green Red	1 mm	2.5 mm	Common Anode	110 mcd		400 mcd	Rectangle with Domed Top	4-SMD No Lead		4-SMD	0.85 mm	2 V 3.3 V 3.3 V	65 mcd	20mA Blue 20mA Green 20mA Red	110 ° 130 ° 140 °
Kingbright APFA2507LQBDSEEZGKC	Right Angle Surface Mount	0.7 mm	2.1 mm				465 nm 525 nm 621 nm	Colorless	Clear	460 nm 515 nm 630 nm	Blue Green Red	1 mm	2.5 mm	Common Anode	10 mcd		60 mcd	Rectangle with Domed Top	4-SMD No Lead		4-SMD	0.85 mm	1.8 V 2.7 V 2.7 V	10 md		110 ° 130 ° 140 °	2 mA	2 mA	2 mA
