2FA53 Series

Catalog

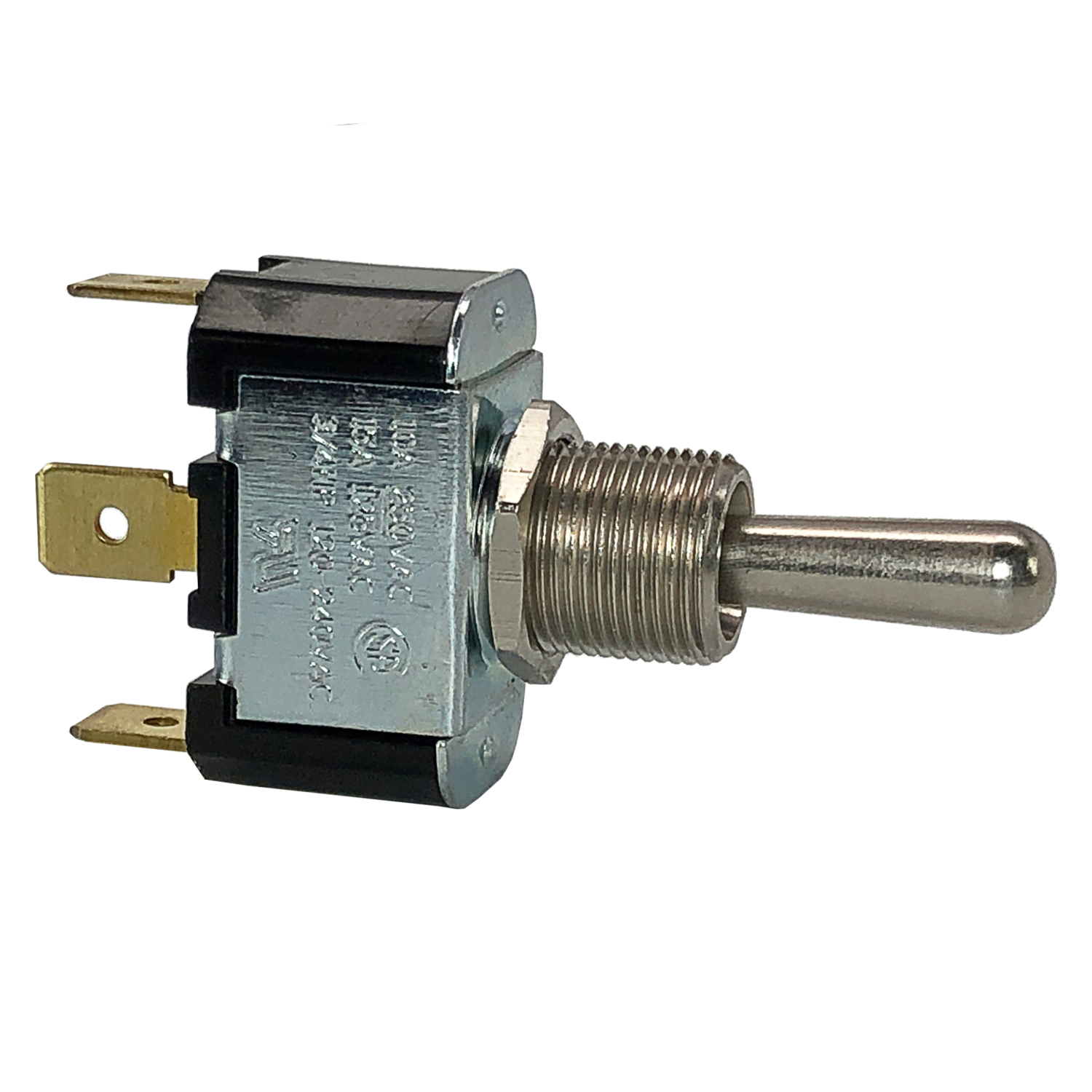

SWITCH TOGGLE SPST 15A 125V

Part	Electrical Life	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Length [x]	Actuator Type	Current Rating (Amps)	Bushing Thread	Panel Cutout Dimensions [diameter]	Circuit	Termination Style	Mounting Type	Illumination	Switch Function
Carling Technologies 2FA53-78/TABS/HDW ASSM	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Quick Connect - 0.250" (6.3mm)	Panel Mount	Non-Illuminated	On-Off
Carling Technologies 2FA53-73/END TABS	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Quick Connect - 0.250" (6.3mm)	Panel Mount	Non-Illuminated	On-Off
Carling Technologies 2FA53-78/TABS/2 HEX	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Quick Connect - 0.250" (6.3mm)	Panel Mount	Non-Illuminated	On-Off
Carling Technologies 2FA53-78/TABS	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Quick Connect - 0.250" (6.3mm)	Panel Mount	Non-Illuminated	On-Off
Carling Technologies 2FA53-73/.187 TABS	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Quick Connect - 0.250" (6.3mm)	Panel Mount	Non-Illuminated	On-Off
Carling Technologies 2FA53-73/TABS/HDW ASSM	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Quick Connect - 0.250" (6.3mm)	Panel Mount	Non-Illuminated	On-Off
Carling Technologies 2FA53-78/.187 TABS	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Quick Connect - 0.250" (6.3mm)	Panel Mount	Non-Illuminated	On-Off
Carling Technologies 2FA53-78	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Solder Lug	Panel Mount	Non-Illuminated	On-Off
Carling Technologies 2FA53-73/TABS/2 HEX	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Quick Connect - 0.250" (6.3mm)	Panel Mount	Non-Illuminated	On-Off
Carling Technologies 2FA53-73/HDW ASSM	50000 Cycles	125 V	-17.8 °C	65.6 °C	17.45 mm	Standard Round	15 A	15/32-32	12.7 mm	SPST	Solder Lug	Panel Mount	Non-Illuminated	On-Off
