Spa0 Series Series

Single In-line Package DIP

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Single In-line Package DIP

Part	Contact Material	Mounting Type	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Number of Positions	Current Rating (Amps)	Actuator Type	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Body Material	Mechanical Life	Voltage Rating	Electrical Life	Circuit	Termination Style	Length	Height Above Board	Height Above Board

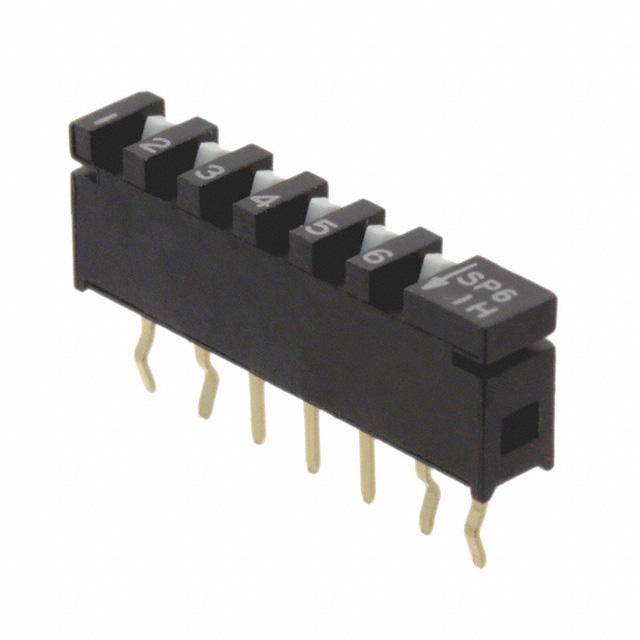

Littelfuse/Commercial Vehicle Products SPA06B	Beryllium Copper	Through Hole	Gold	-30 ░C	60 °C	Flush Recessed	6	10 mA	Slide (Standard)	6.2 mm	0.244 "	0.1 in	Full	2.54 mm	0.742 "	18.84 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	20 V	1000 Cycles	SPST	PC Pin

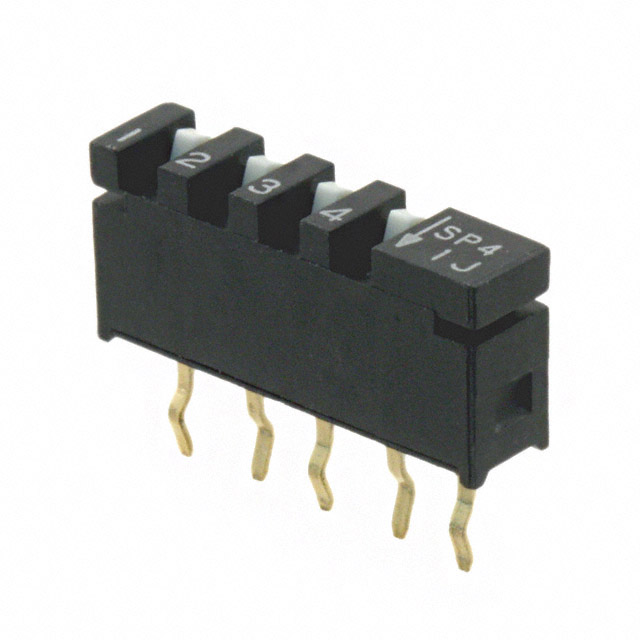

Littelfuse/Commercial Vehicle Products SPA04B	Beryllium Copper	Through Hole	Gold	-30 ░C	60 °C	Flush Recessed	4	10 mA	Slide (Standard)	6.2 mm	0.244 "	0.1 in	Full	2.54 mm	0.542 "		Polyphenylene Sulfide (PPS)	1000 Cycles	20 V	1000 Cycles	SPST	PC Pin	13.77 mm
Littelfuse/Commercial Vehicle Products SPA08B	Beryllium Copper	Through Hole	Gold	-30 ░C	60 °C	Flush Recessed	8	10 mA	Slide (Standard)	6.2 mm	0.244 "	0.1 in	Full	2.54 mm	0.942 "	23.92 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	20 V	1000 Cycles	SPST	PC Pin
Littelfuse/Commercial Vehicle Products SPA06AB	Beryllium Copper	Through Hole Right Angle	Gold	-30 ░C	60 °C	Flush Recessed	6	10 mA	Slide (Standard)			0.1 in	Full	2.54 mm	0.742 "	18.84 mm	Polyphenylene Sulfide (PPS)	1000 Cycles	20 V	1000 Cycles	SPST	PC Pin		0.169 in	4.3 mm

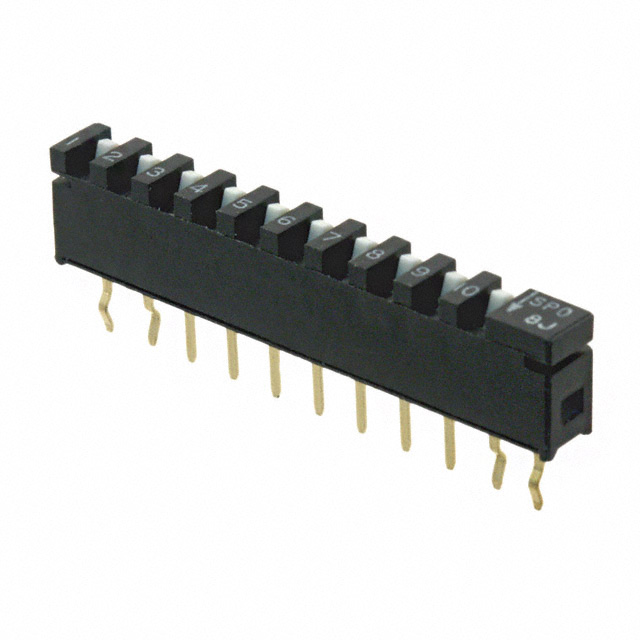

Littelfuse/Commercial Vehicle Products SPA10B	Beryllium Copper	Through Hole	Gold	-30 ░C	60 °C	Flush Recessed	10	10 mA	Slide (Standard)	6.2 mm	0.244 "	0.1 in	Full	2.54 mm			Polyphenylene Sulfide (PPS)	1000 Cycles	20 V	1000 Cycles	SPST	PC Pin

Catalog

Single In-line Package DIP

Key Features

• Thin Single In-line Packaging saves PCB space

• Retention feature holds part to PCB prior to soldering

• High pressure contact system does not require tape sealing

Description

The SPA series single in-line package DIP saves PCB space because of its thin single In-line packaging. Its retention feature holds part to PCB, prior to soldering – and its high-pressure contact system does not require tape sealing. C&K’s SPA switch is typically used for function controls, logic switching and address switching in industrial applications.
