12TW8 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE DPDT 5A 125V

Part	Panel Cutout Dimensions [diameter]	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Mounting Type	Bushing Thread	Actuator Type	Termination Style	Illumination	Voltage Rating - AC	Actuator Length [x]	Ingress Protection	Current Rating (Amps)	Features
Honeywell Sensing and Productivity Solutions 12TW870-3	12.4 mm	DPDT	-65 ░C	71 °C	On-On	Panel Mount	15/32-32	Standard Round	PC Pin	Non-Illuminated	125 V	17.27 mm	Environment Sealed	5 A

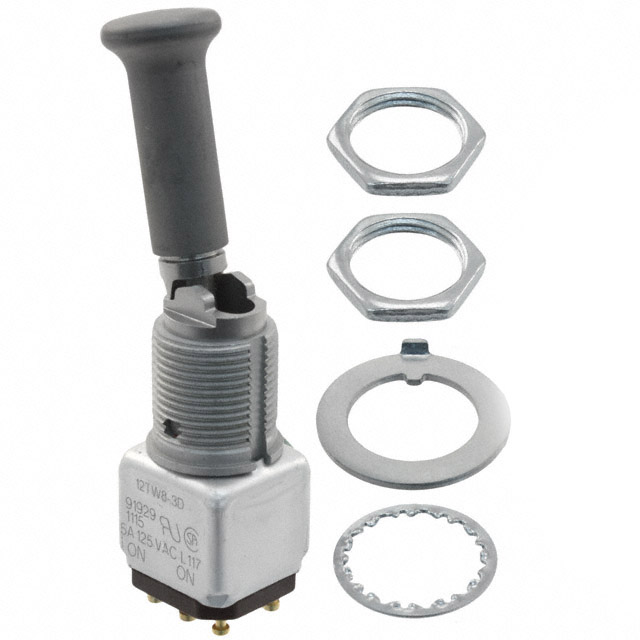

Honeywell Sensing and Productivity Solutions 12TW8-3D	12.4 mm	DPDT	-65 ░C	71 °C	On-On	Panel Mount	15/32-32	Locking Lever	Solder Turret	Non-Illuminated	125 V	29.46 mm	Environment Sealed	5 A
Honeywell Sensing and Productivity Solutions 12TW8-7	12.4 mm	DPDT	-65 ░C	71 °C	Mom-Off-Mom	Panel Mount	15/32-32	Standard Round	Solder Turret	Non-Illuminated	125 V	17.27 mm	Environment Sealed	5 A
Honeywell Sensing and Productivity Solutions 12TW804-72	12.4 mm	DPDT	-65 ░C	71 °C	Mom-On-Mom	Panel Mount	15/32-32	Standard Round	Solder Turret	Non-Illuminated	125 V	17.27 mm	Environment Sealed	5 A
Honeywell Sensing and Productivity Solutions 12TW804-72E	12.4 mm	DPDT	-65 ░C	71 °C	Mom-On-Mom	Panel Mount	15/32-32	Locking Lever	Solder Turret	Non-Illuminated	125 V	29.46 mm	Environment Sealed	5 A
Honeywell Sensing and Productivity Solutions 12TW8-70E	12.4 mm	DPDT	-65 ░C	71 °C	Mom-On-Mom	Panel Mount	15/32-32	Locking Lever	Solder Turret	Non-Illuminated	125 V	29.46 mm	Environment Sealed	5 A
Honeywell Sensing and Productivity Solutions 12TW8-8F	12.4 mm	DPDT	-65 ░C	71 °C	On-Mom	Panel Mount	15/32-32	Locking Lever	Solder Turret	Non-Illuminated	125 V	29.46 mm	Environment Sealed	5 A
Honeywell Sensing and Productivity Solutions 12TW8-10A	12.4 mm	SP3T	-65 ░C	71 °C	On-On-On	Panel Mount	15/32-32	Locking Lever	Solder Turret	Non-Illuminated	125 V	29.46 mm	Environment Sealed	5 A	Jumper needed to achieve triple throw
Honeywell Sensing and Productivity Solutions 12TW803-3	12.4 mm	DPDT	-65 ░C	71 °C	On-On	Panel Mount	15/32-32	Standard Round	Solder Turret	Non-Illuminated	125 V	17.27 mm	Environment Sealed	5 A
Honeywell Sensing and Productivity Solutions 12TW8-10P	12.4 mm	DPDT	-65 ░C	71 °C	On-On-On	Panel Mount	15/32-32	Locking Lever	Solder Turret	Non-Illuminated	125 V	29.46 mm	Environment Sealed	5 A
