2127A Series
Manufacturer: Belden Inc.
Beta
⌘K

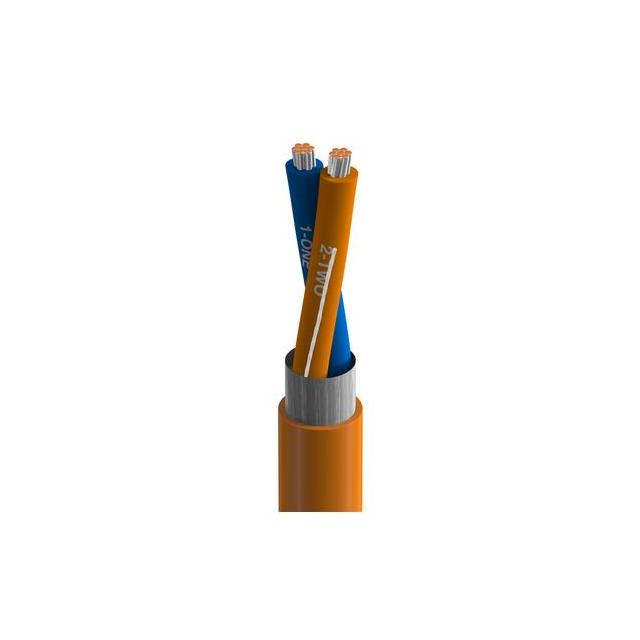

CABLE 2COND 16AWG ORG SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Conductor Material | Cable Type | Conductor Insulation | Conductor Insulation | Voltage | Ratings | Features | Jacket Color | Number of Conductors | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Polyolefin | PO | 600 V | UL Style TC | Direct Burial Drain Wire Oil Resistant Rip Cord UV Resistant | Orange | 2 | 16 AWG | 7 | 24 AWG | Foil | 90 °C | -40 C | 9.27 mm | 0.365 in |
Belden Inc. | 100 % | Aluminum | Poly-Vinyl Chloride (PVC) | Copper Tinned | Multi-Conductor | Polyolefin | PO | 600 V | UL Style TC | Direct Burial Drain Wire Oil Resistant Rip Cord UV Resistant | Blue | 2 | 16 AWG | 7 | 24 AWG | Foil | 90 °C | -40 C | 9.27 mm | 0.365 in |
