EEE-HAE Series

Catalog

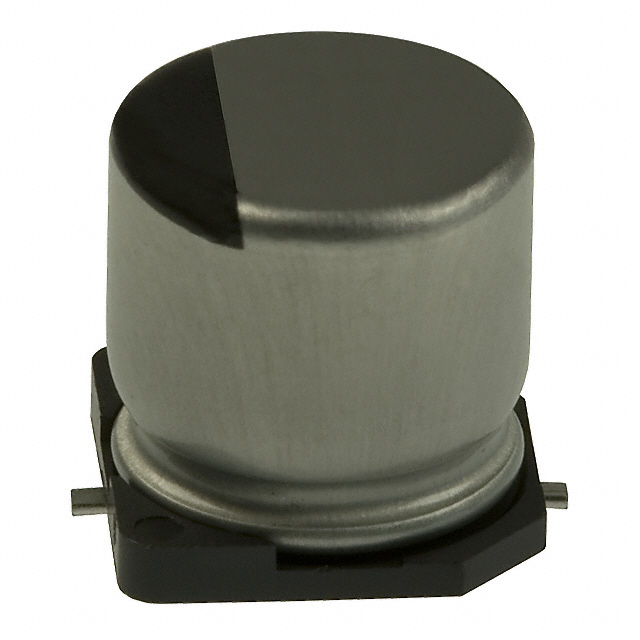

CAP ALUM 470UF 20% 25V SMD

Part	Package / Case	Ratings	Applications	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Ripple Current @ High Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Polarization	Voltage - Rated	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Mounting Type	Lifetime @ Temp.	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales EEE-HAE471UAP	Radial Can - SMD	AEC-Q200	Automotive	10 mm	0.394 in	10.2 mm	0.402 "	470 µF	612 mA	-40 °C	105 ░C	360 mA	Polar	25 VDC	10.3 mm	0.406 in	10.3 mm	0.406 "	Surface Mount	1000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-HAE101XAP	Radial Can - SMD	AEC-Q200	Automotive	6.3 mm	0.248 in			100 µF	154.7 mA	-40 °C	105 ░C	91 mA	Polar	25 VDC	6.6 mm	0.26 in	6.6 mm	0.26 in	Surface Mount	1000 Hrs	20 %	0.303 in	7.7 mm
Panasonic Industrial Automation Sales EEE-HAE100WAR	Radial Can - SMD	AEC-Q200	Automotive	4 mm	0.157 in	5.4 mm	0.213 in	10 µF	37.4 mA	-40 °C	105 ░C	22 mA	Polar	25 VDC	4.3 mm	0.169 in	4.3 mm	0.169 "	Surface Mount	1000 Hrs	20 %
Panasonic Industrial Automation Sales EEE-HAE221UAP	Radial Can - SMD	AEC-Q200	Automotive	8 mm	0.315 "	10.2 mm	0.402 "	220 µF	272 mA	-40 °C	105 ░C	160 mA	Polar	25 VDC	8.3 mm	0.327 "	8.3 mm	0.327 in	Surface Mount	1000 Hrs	20 %
