FAN5626 Series

Linear LED Driver, 6-channel, with Single-wire Digital Interface

Catalog

Linear LED Driver, 6-channel, with Single-wire Digital Interface

Part	Applications	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Supply (Max)	Supplier Device Package	Number of Outputs	Package / Case	Internal Switch(s)	Current - Output / Channel	Dimming

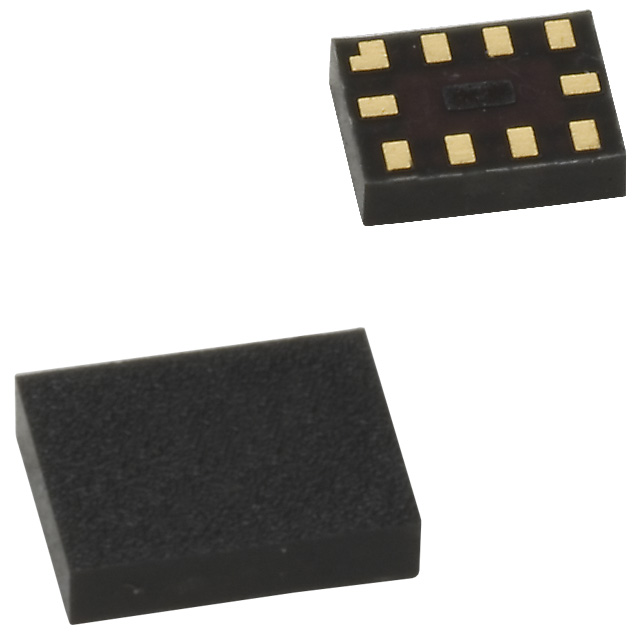

ON Semiconductor FAN5626LX	Backlight	Surface Mount	85 °C	-40 °C	Linear	5.5 V	10-MicroPak™	6	10-UFQFN Exposed Pad		30 mA	Single-Wire

Catalog

Linear LED Driver, 6-channel, with Single-wire Digital Interface

Key Features

• Linear Current-Sink LED Driver that Supports 6 LED Outputs• Current Sink Driver for Each LED Output:

• 30 mA Maximum Output Current

• 50 mV Drop-out at 15 mA IOUT

• Better than 3% Matching between Channels

• External RSET

• Single-Wire Digital Control Interface for Easy Programming• 32 Linear Steps of Dimming Control• Less than 1 µA Shut-Down Current• Short-Circuit, Under-Voltage, and Thermal Protection• Wide Input Voltage Range: 2.7 to 5.5 V

Description

The FAN5626 is a 6-channel current-sink linear LED driver used to backlight the main LCD display or keypad in mobile electronics, such as cellular phone handsets.A very low dropout of 50 mV allows driving LEDs without any inductors or switch capacitors. The brightness levels of the LED outputs are programmed through single-wire digital control interface. The user can program 32 linear dimming steps and turn on and off the LEDs through this interface by applying digital pulses.The FAN5626 linear LED driver provides high efficiency due to the low drop-out voltage of the LED driver. Good matching between different channels of LED output is provided across the entire 32 dimming steps. These LED driver also integrates short-circuit, under-voltage, and thermal protections to ensure a robust solution.
