MAX14916 Series

Catalog

INDUSTRIAL OCTAL HIGH SIDE DRIVE

Part	Features	Interface	Ratio - Input:Output	Current - Output (Max) [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Switch Type	Output Configuration	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Mounting Type	Rds On (Typ)	Number of Outputs	Fault Protection	Operating Temperature [Min]	Operating Temperature [Max]	Supplied Contents	Function	Primary Attributes	Secondary Attributes	Type
Analog Devices Inc./Maxim Integrated MAX14916AFM+T	Status Flag	Parallel SPI	1:8	1.67 A	36 V	10 V	48-VFQFN Exposed Pad	General Purpose	High Side	48-FCQFN (6x6)	2.5 V	5.5 V	Surface Mount	120 mOhm	8	Current Limiting (Fixed) Open Load Detect Over Temperature UVLO	-40 °C	125 °C
Analog Devices Inc./Maxim Integrated MAX14916AFM+	Status Flag	Parallel SPI	1:8	1.67 A	36 V	10 V	48-VFQFN Exposed Pad	General Purpose	High Side	48-FCQFN (6x6)	2.5 V	5.5 V	Surface Mount	120 mOhm	8	Current Limiting (Fixed) Open Load Detect Over Temperature UVLO	-40 °C	125 °C

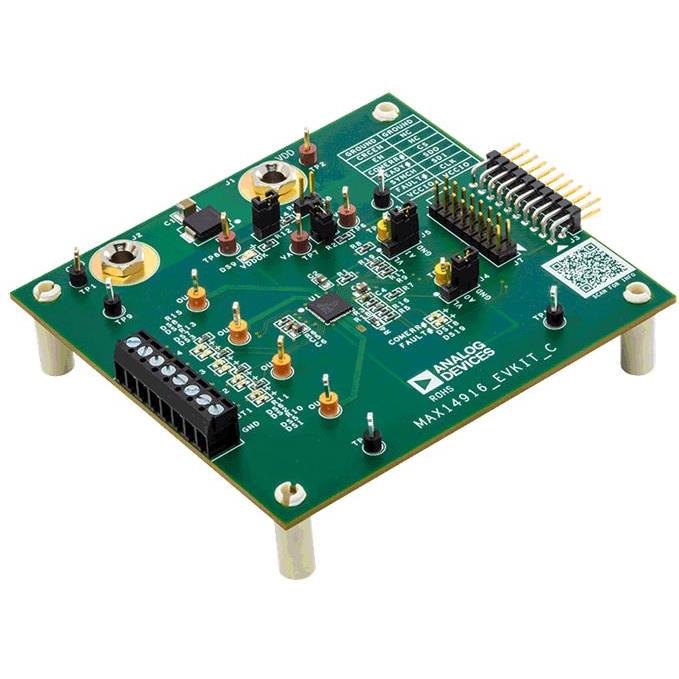

Analog Devices Inc./Maxim Integrated MAX14916EVKIT#																			Board(s)	High Side Driver (External FET)	8-Channel (Octal)	On-Board LEDs	Power Management
