RF1-1A Series

Catalog

SWITCH ROCKER SPST 10A 125V

Part	Electrical Life (Cycles)	Mechanical Life (Cycles)	Quick Connect Size (0.187")	Termination Style	Mounting Type	Circuit	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Actuator Marking	Switch Function	Color - Actuator/Cap	Current Rating	Actuator Type	Approval Agency	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating - AC	Voltage Rating - DC	Ingress Protection	Illumination Voltage (Nominal)	Color	Illumination Type
Switch Components RF1-1A-DC-2-B	6000 Cycles	10000 Cycles	0.187 in	Quick Connect	Panel Mount Snap-In	SPST	13 mm	Rectangular	19.2 mm	No Marking	On-Off	Black	16 A 16 A	Concave (Curved)	CSA cURus ENEC	85 °C	-25 °C	125 V	12 V
Switch Components RF1-1A-DC-2-R-1	6000 Cycles	10000 Cycles	0.187 in	Quick Connect	Panel Mount Snap-In	SPST	13 mm	Rectangular	19.2 mm	O	On-Off	Red	16 A 16 A	Concave (Curved)	CSA cURus ENEC	85 °C	-25 °C	125 V	12 V
Switch Components RF1-1A-AC-2-B-1			0.187 in	Quick Connect	Panel Mount Snap-In	SPST	13 mm	Rectangular	19.2 mm	O	On-Off	Black	16 A	Concave (Curved)	CSA cURus ENEC	85 °C	-25 °C			IP40
Switch Components RF1-1A-AC-2-B-3			0.187 in	Quick Connect	Panel Mount Snap-In	SPST	13 mm	Rectangular	19.2 mm	Dot	On-Off	Black	16 A	Concave (Curved)	CSA cURus ENEC	85 °C	-25 °C			IP40

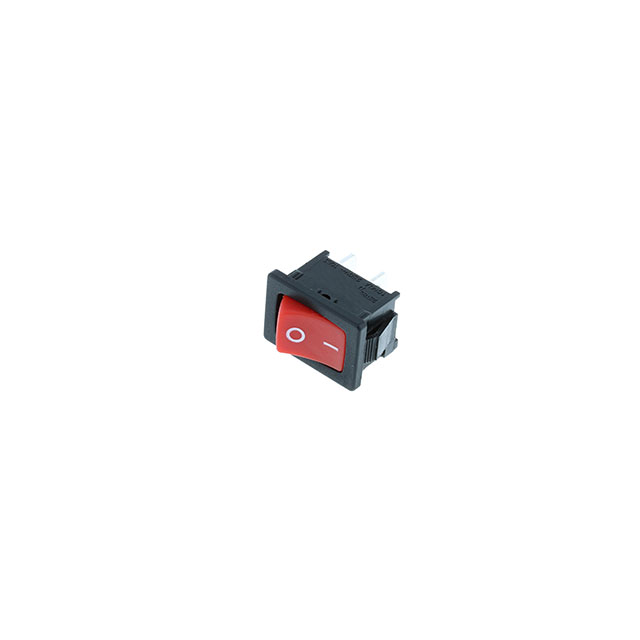

Switch Components RF1-1A-AC-2-R-1			0.187 in	Quick Connect	Panel Mount Snap-In	SPST	13 mm	Rectangular	19.2 mm	O	On-Off	Red	16 A	Concave (Curved)	CSA cURus ENEC	85 °C	-25 °C			IP40
Switch Components RF1-1A-AC-2-B			0.187 in	Quick Connect	Panel Mount Snap-In	SPST	13 mm	Rectangular	19.2 mm	No Marking	On-Off	Black	16 A	Concave (Curved)	CSA cURus ENEC	85 °C	-25 °C			IP40

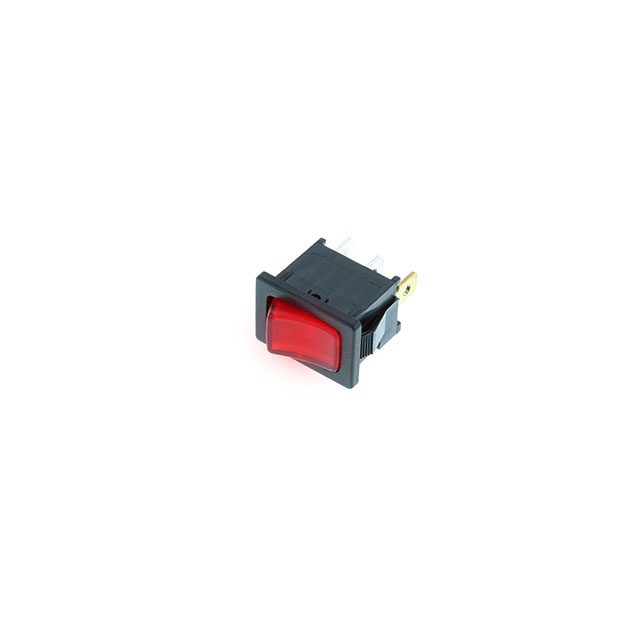

Switch Components RF1-1A-DC-2-RL	6000 Cycles	10000 Cycles	0.187 in	Quick Connect	Panel Mount Snap-In	SPST	13 mm	Rectangular	19.2 mm	No Marking	On-Off	Red	16 A	Concave (Curved) Illuminated	CSA cURus ENEC	85 °C	-25 °C		12 V		12 V	Red	LED

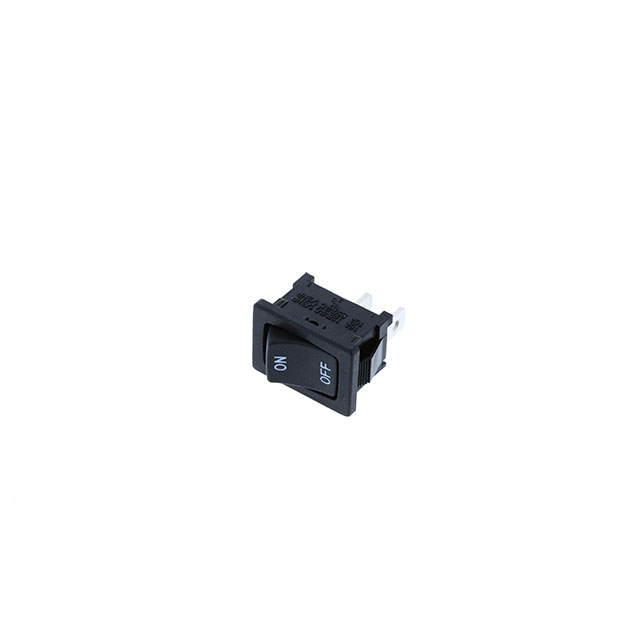

Switch Components RF1-1A-DC-2-B-2	6000 Cycles	10000 Cycles	0.187 in	Quick Connect	Panel Mount Snap-In	SPST	13 mm	Rectangular	19.2 mm	ON OFF Vertical	On-Off	Black	16 A 16 A	Concave (Curved)	CSA cURus ENEC	85 °C	-25 °C	125 V	12 V
